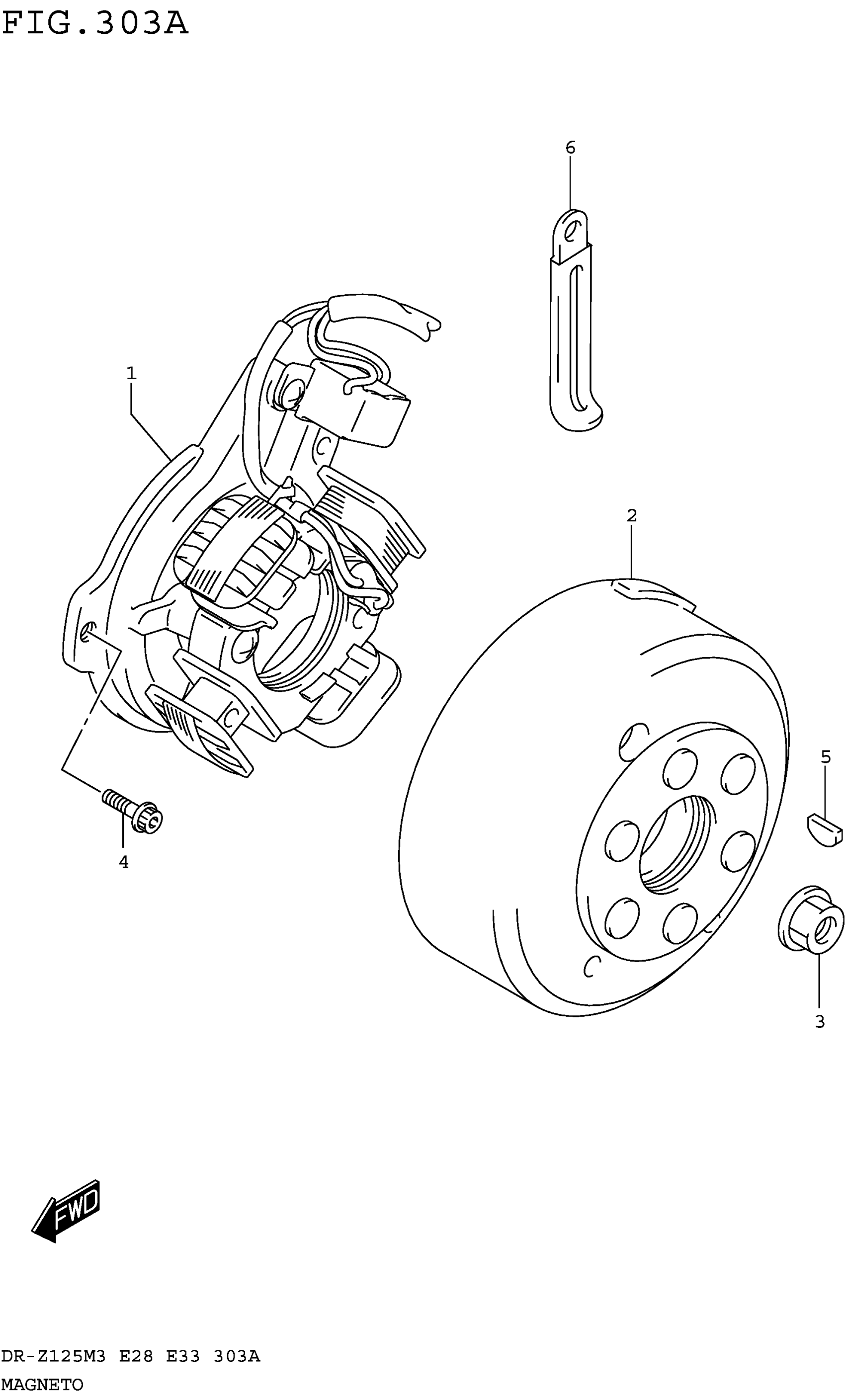

Suzuki DR-Z125LM3 (2023) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-08G00

$337.67

2

ROTOR ASSY

32102-08G00

Unavailable

3

NUT

09159-10110

$3.42

4

BOLT

07120-0512A

$2.29

5

KEY

09420-03010

$2.98

6

CLAMP (L:80)

09404-06030

Unavailable
