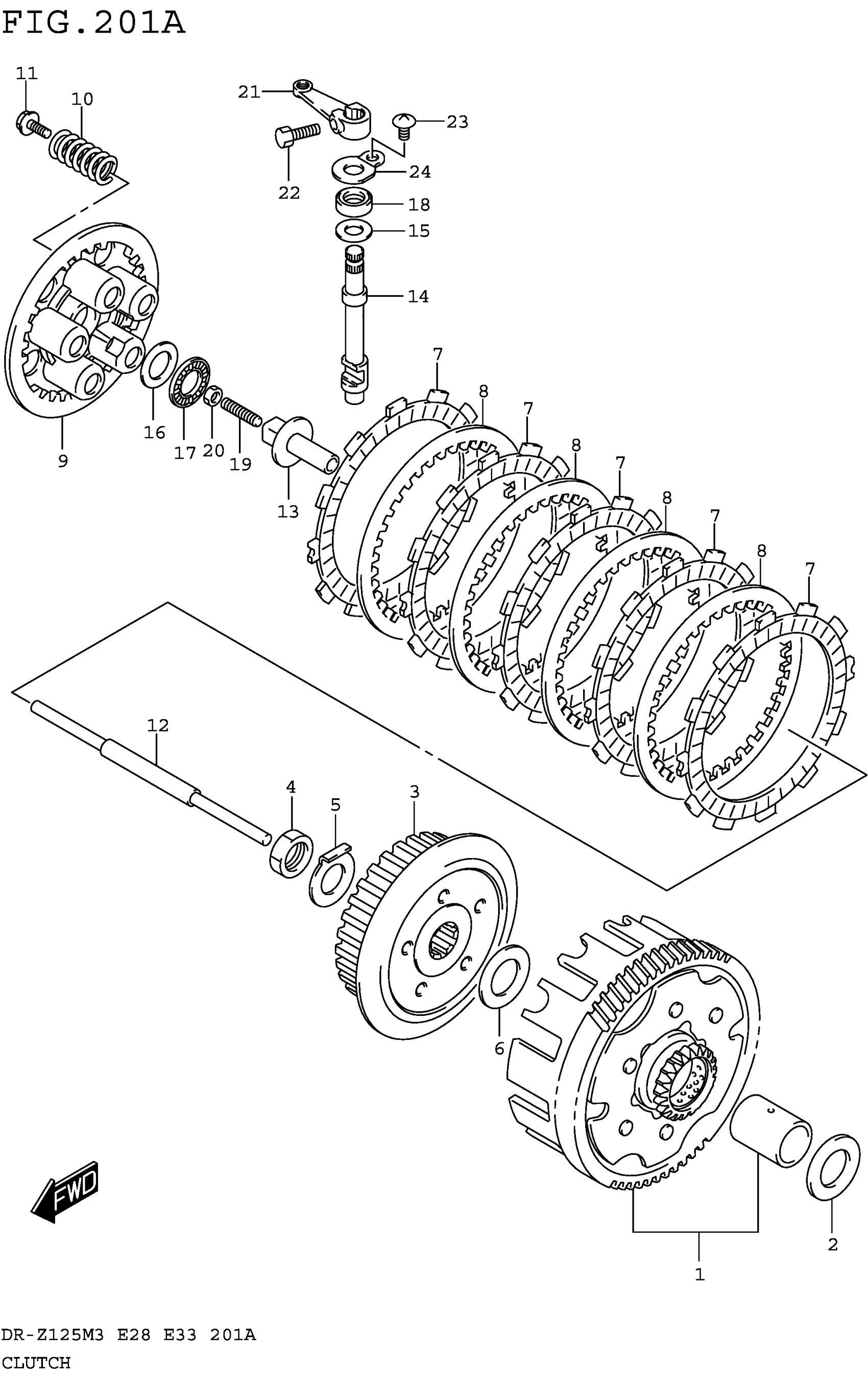

Suzuki DR-Z125LM3 (2023) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRI DRIVEN (NT:59)

21200-44813

$236.93

2

WASHER

08211-20353

Unavailable

3

HUB, CLUTCH SLEEVE (NT:30)

21411-05230

$87.95

4

NUT This part replaces 09140-16001.

09140-16005

$4.08

5

WASHER

09169-16003

$2.67

6

WASHER

08211-20352

Unavailable

7

PLATE, CLUTCH DRIVE (T:3.0)

21441-25C01

$19.55

8

PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00

$6.94

9

DISC, CL PRESSURE

21462-14130

$28.07

10

SPRING

09440-15021

$3.56

11

BOLT (5X16)

09116-05020

$2.06

12

ROD, CLUTCH PUSH

23110-05203

$20.33

13

PIECE, CLUTCH PUSH

23121-38201

$30.18

14

CAMSHAFT, CLUTCH RELEASE

23122-05200

$56.53

15

SHIM (10X20X1)

09181-10195

$2.00

16

WASHER (15.5X28X1)

09160-15045

$3.52

17

BEARING (15X28X2)

09263-15003

$7.49

18

SEAL,OIL (10X20X6)

09282-10012

$7.20

19

SCREW (6X25)

09134-06010

$2.81

20

NUT (6X3.6)

09140-06023

$2.07

21

ARM, CLUTCH RELEASE

23271-46010

$32.70

22

BOLT

01500-0616A

$1.77

23

SCREW

02142-0610A

$1.38

24

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80
