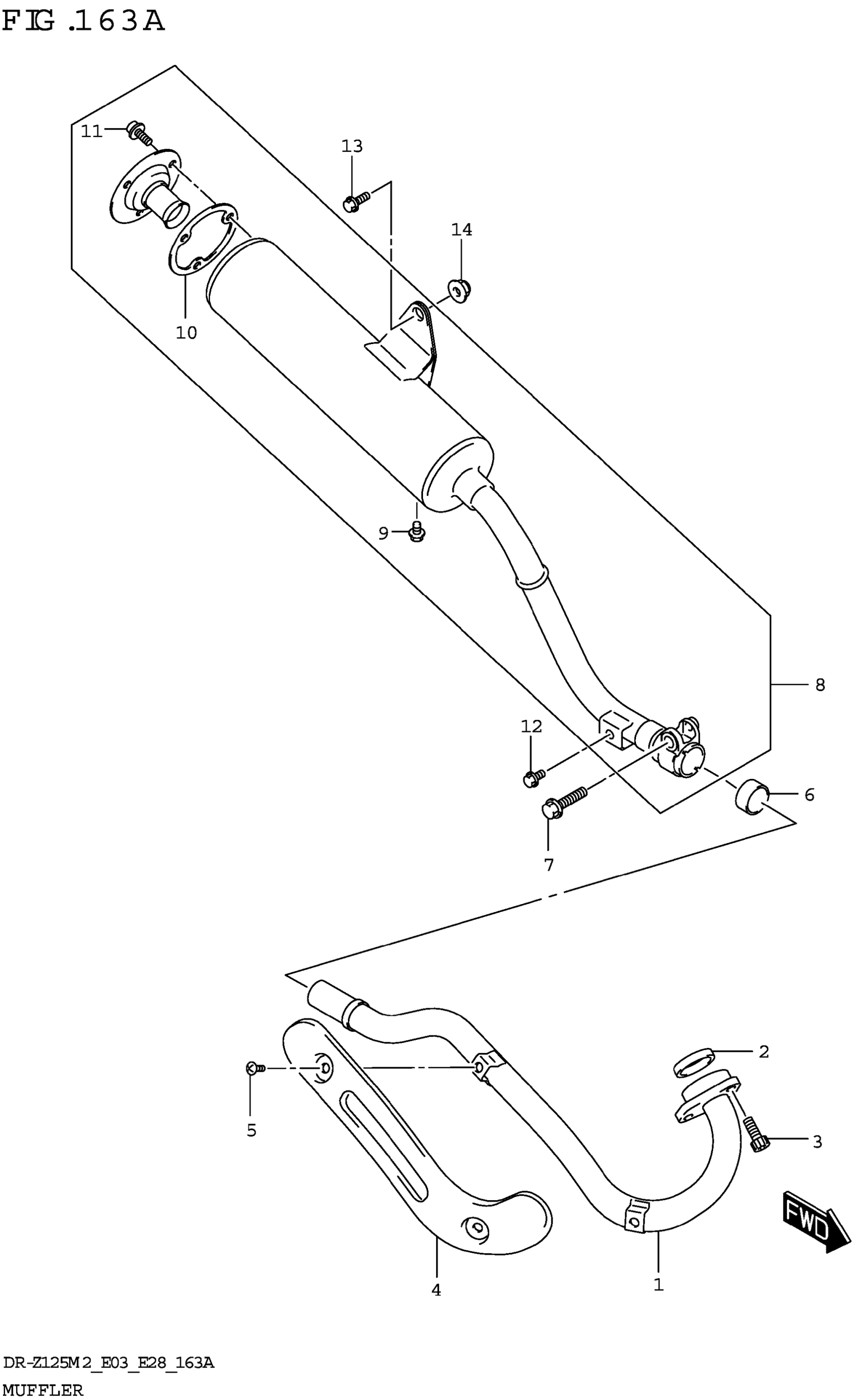

Find the part on the Muffler diagram for your 2022 Suzuki DR-Z125LM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR-Z125LM2 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST

14150-08G00

1
Out of stock

2

.GASKET,EXHAUST This part replaces 14181-14D00.

14181-18C00

1
Out of stock

3

BOLT

07130-0825A

2
Out of stock

4

COVER, EXH PIPE

14180-08G10

1
Out of stock

5

SCREW (6X10)

09139-06076

2
Out of stock

6

.CONNECTOR, MUFFLER

14771-08G00

1
Out of stock

7

BOLT

07120-0840A

1
Out of stock

8

BODY, MUFFLER

14310-08G01

1
Out of stock

9

.BOLT

07120-0610A

3
Out of stock

10

.GASKET, ARRESTER

14773-08G00

1
Out of stock

11

.BOLT

07120-0610A

1
Out of stock

12

BOLT (8X12)

01550-0812A

1
Out of stock

13

BOLT (8X23)

09103-08247

1
Out of stock

14

NUT

08319-3108A

1
Out of stock
