Description

Price

1

CLEANER ASSY, AIR

13700-08G02

$233.43

2

.CAP, AIR CLEANER

13740-08G01

$23.26

3

.GASKET

13746-08G00

$5.63

4

.FILTER

13780-08G00

$33.43

5

.HOLDER, FILTER

13791-08G00

$13.90

6

.WASHER

13792-13A01

$4.15

7

.BOLT, WING

13831-31G00

$7.71

8

.CLAMP, OUTLET TUBE | DE)

13826-14D01

$8.92

9

.CLAMP

09402-48208

$4.32

10

.TUBE, OUTLET

13881-08G01

$47.33

11

.TUBE, BREATHER

13853-08G01

$16.80

12

.JOINT

13858-14D20

$7.11

13

.CLIP (ID:14.5)

09401-14101

$2.44

14

.TUBE, INLET

13891-08G00

$33.12

15

.TRAP, FLAME

13810-03G00

$13.40

16

.CAP, DRAIN

13681-19B01

$7.48

17

.SCREW

02142-0516B

$2.01

18

NUT (M6)

09148-06021

$3.48

19

BOLT

01547-0612A

$2.09

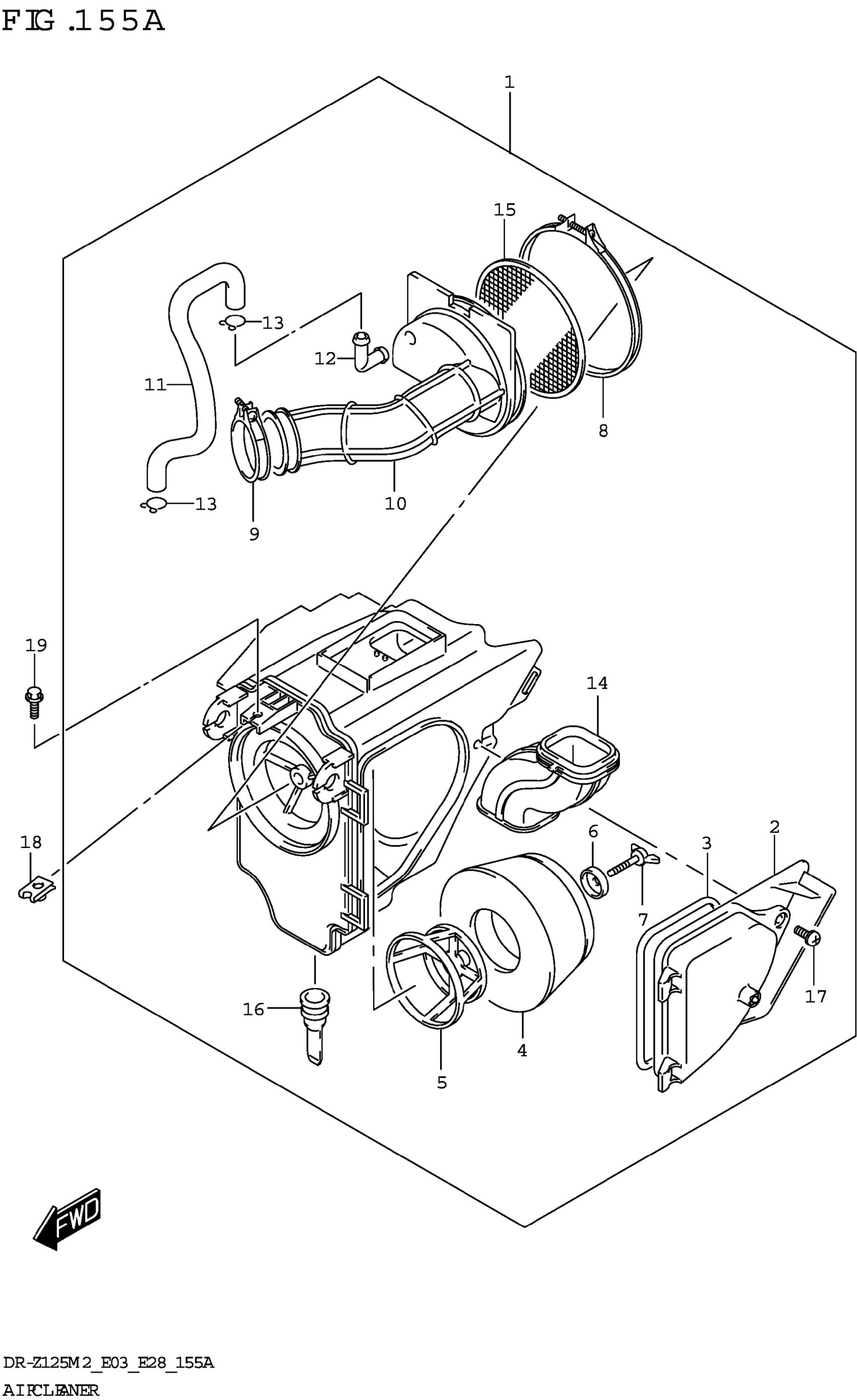

Suzuki DR-Z125LM2 (2022) AIR CLEANER Diagram
