2021 Suzuki DR-Z125LM1 Electrical Diagram

← All diagrams

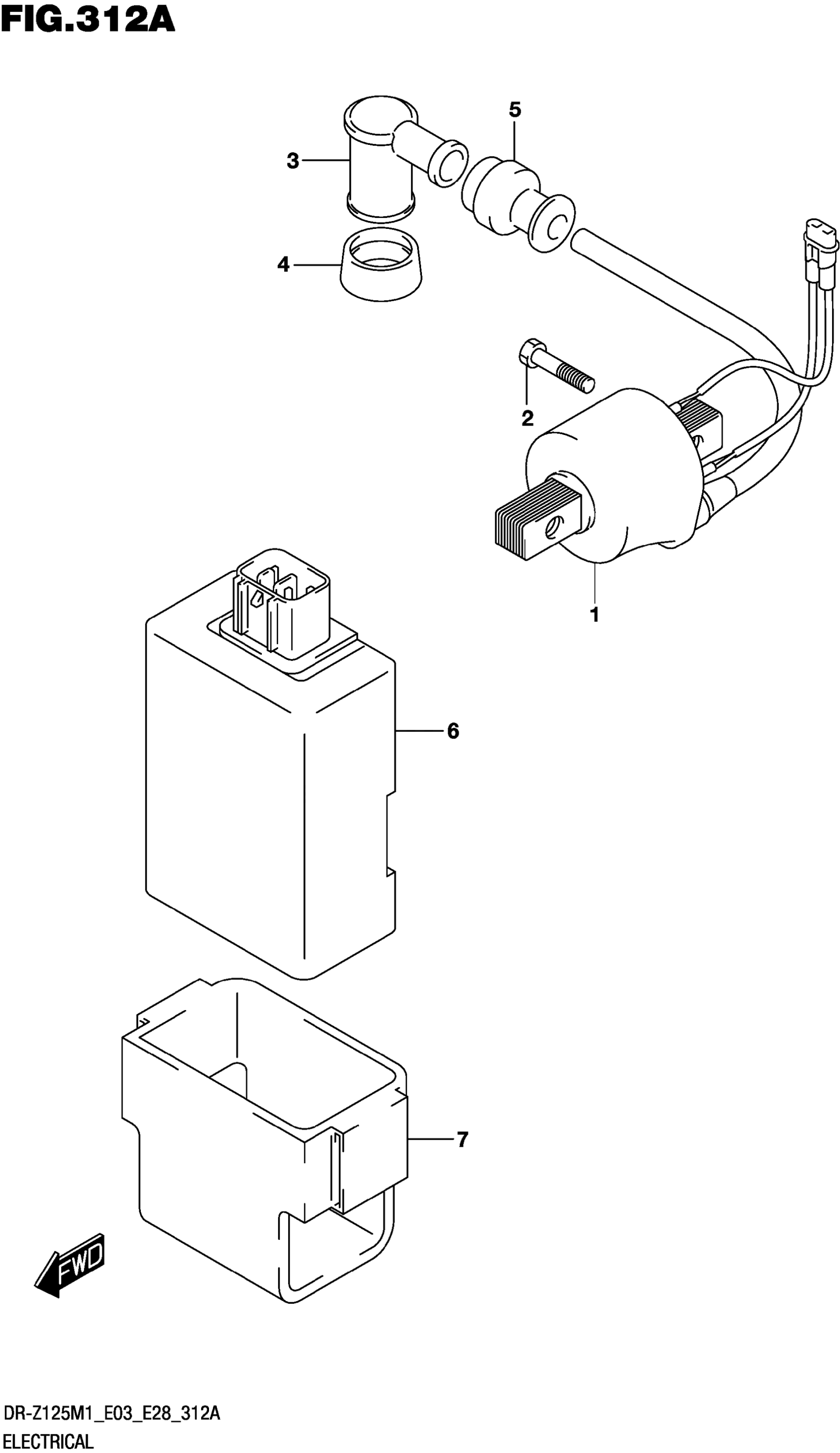

Find the part on the Electrical diagram for your 2021 Suzuki DR-Z125LM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki DR-Z125LM1 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL ASSY, IGNITION

33410-08G00

1
Out of stock

2

..BOLT

01547-0620B

2
Out of stock

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

1
Out of stock

4

SEAL, SPARK PLUG

33541-38210

1
Out of stock

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

6

CDI UNIT

32900-08G00

1
Out of stock

7

CUSHION, CDI UNIT

32980-08G00

1
Out of stock
