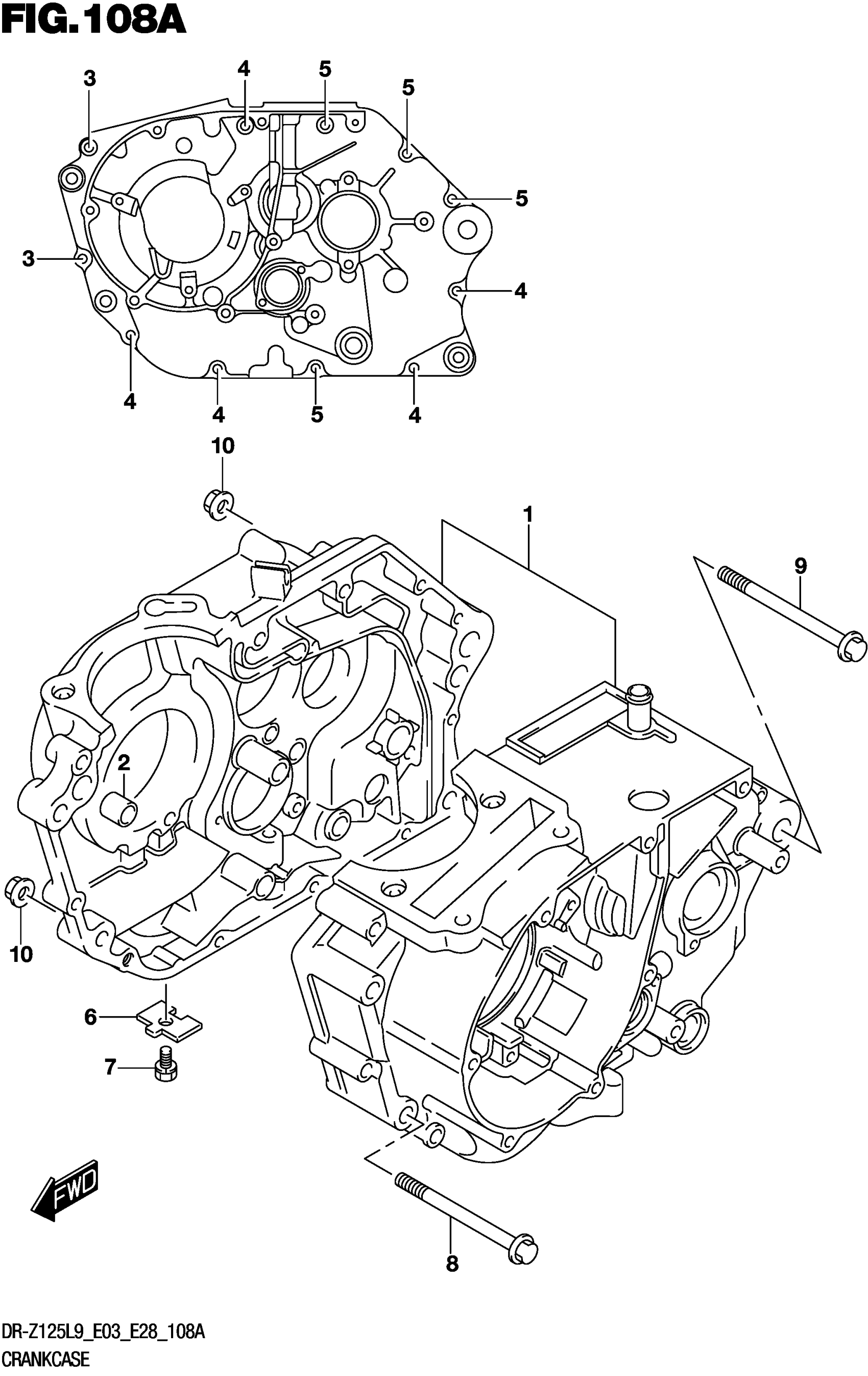

Find the part on the Crankcase diagram for your 2019 Suzuki DR-Z125L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR-Z125L9 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

11300-08G20

1
Out of stock

2

PIN (10.4X13X18)

04211-13189

2
Out of stock

3

BOLT

01547-0645A

2
Out of stock

4

BOLT

01547-0660A

5
Out of stock

5

BOLT

01547-0675A

4
Out of stock

6

.PLATE, OIL GALLEY PLUG

11319-05200

1
Out of stock

7

.BOLT

01500-0610A

1
Out of stock

8

BOLT (8X80)

09103-08016

2
Out of stock

9

BOLT (8X88)

09103-08010

1
Out of stock

10

NUT

08319-3108A

3
Out of stock
