2017 Suzuki DR-Z125L7 Carburetor Diagram

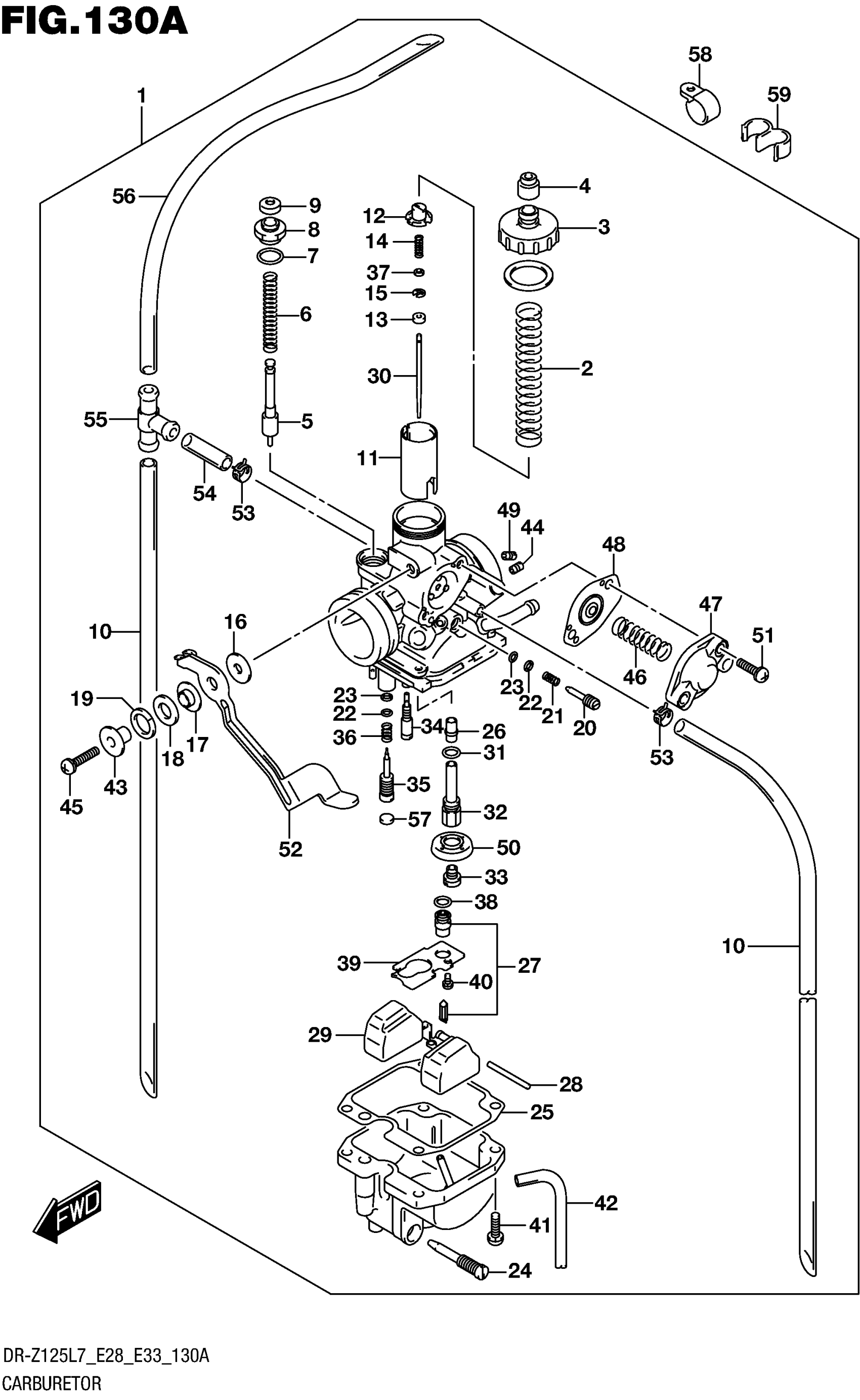

Find the part on the Carburetor diagram for your 2017 Suzuki DR-Z125L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
7
.O RING (16) This part replaces 13278-47090.
13278-47091
1
Out of stock
8
.HOLDER, GUIDE
13418-44080
1
Out of stock
9
.CAP, STARTER VALVE
13682-31210
1
Out of stock
22
.WASHER
13291-29900
2
Out of stock
23
O-RING This part replaces 13295-29900.
13295-29901
2
Out of stock
31
.O RING This part replaces 13246-43010.
13246-43011
1
Out of stock
39
.PLATE
13259-29B10
1
Out of stock
40
SCREW This part replaces 13601-03068.
02112-0306B
1
Out of stock
41
.SCREW
13601-04148
4
Out of stock
42
.HOSE | L:650->400
13684-40A00
1
Out of stock
44
.JET (85)
09493-85001
1
Out of stock
47
.COVER ASSY
13502-10F00
1
Out of stock
48
.DIAPHRAGM ASSY This part replaces 13480-10F00.
13480-10F01
1
Out of stock
49
.JET (#145)
09492-29002
1
Out of stock
55
.NIPPLE
13685-48B00
1
Out of stock
58
CLAMP
09403-22403
1
Out of stock
