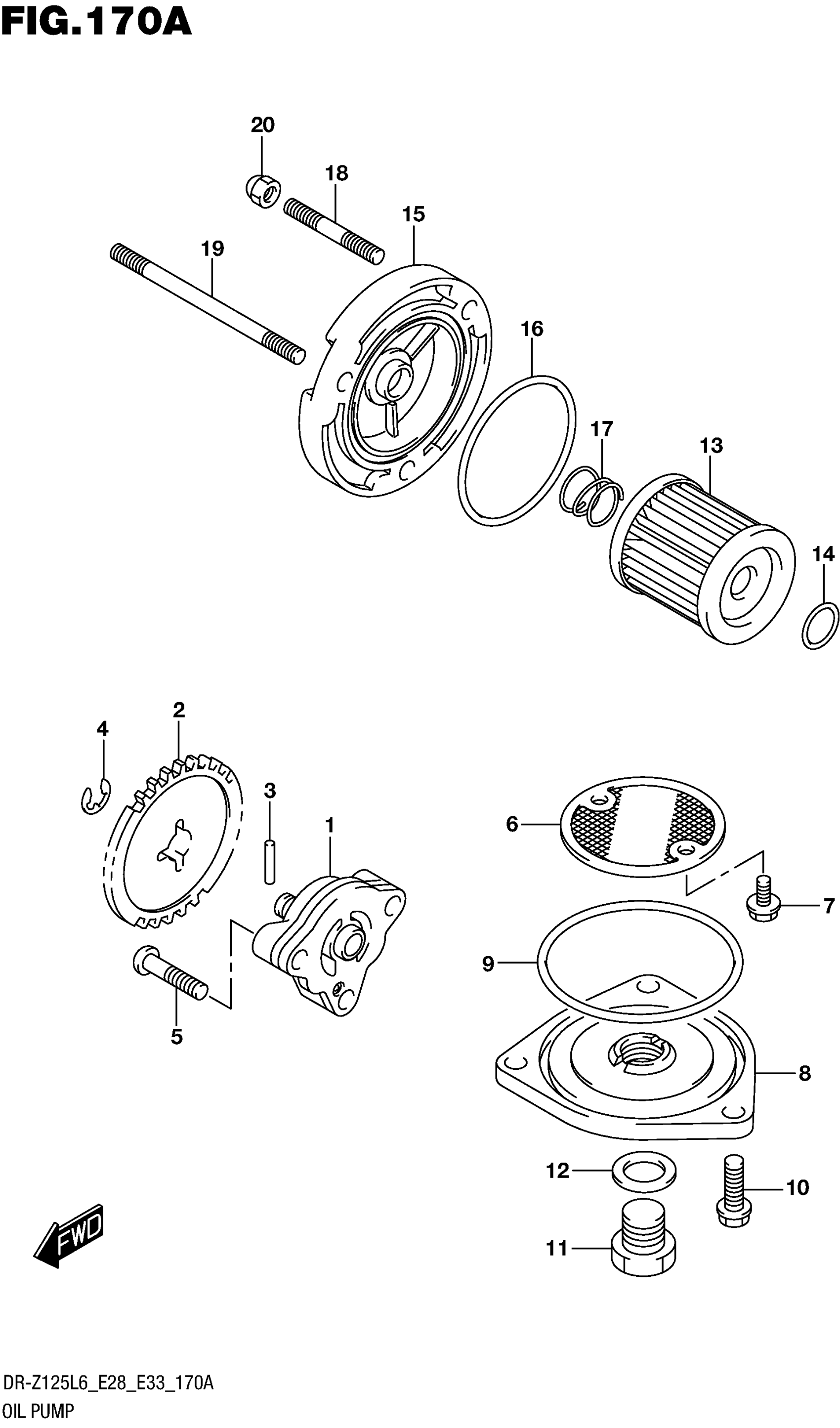

Suzuki DR-Z125L6 (2016) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-42A01

$175.28

2

GEAR, OIL PUMP DRIVEN (NT:30)

16331-04B00

$51.22

3

PIN (2.5X11.8)

09261-02008

$1.48

4

E RING

08332-1106A

$1.46

5

SCREW

02112-0625A

$1.85

6

STRAINER, ENGINE OIL

16520-05202

$5.71

7

SCREW

02112-7512A

$2.53

8

CAP, OIL STR

16523-05200

$14.04

9

.O RING (D:2.4,ID:60.5)

09280-60005

$2.95

10

BOLT

01547-0620A

$2.10

11

PLUG (14X12) | OIL DRAIN

09247-14026

$3.49

12

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

13

FILTER ASSY, ENG OIL

16510-25C00

$7.14

14

O RING (D:1.9,ID:13)

09280-13004

$2.25

15

CAP, OIL FILTER

16512-42A20

$37.12

16

O RING (D:2.4,ID:52.6)

09280-54001

$3.49

17

SPRING

09440-18002

$1.13

18

STUD BOLT

09108-06123

$2.92

19

STUD BOLT (L:90)

09108-06108

$3.49

20

NUT

08313-1006A

$1.89
