- DR-Z125L6 (2016)
CARBURETOR

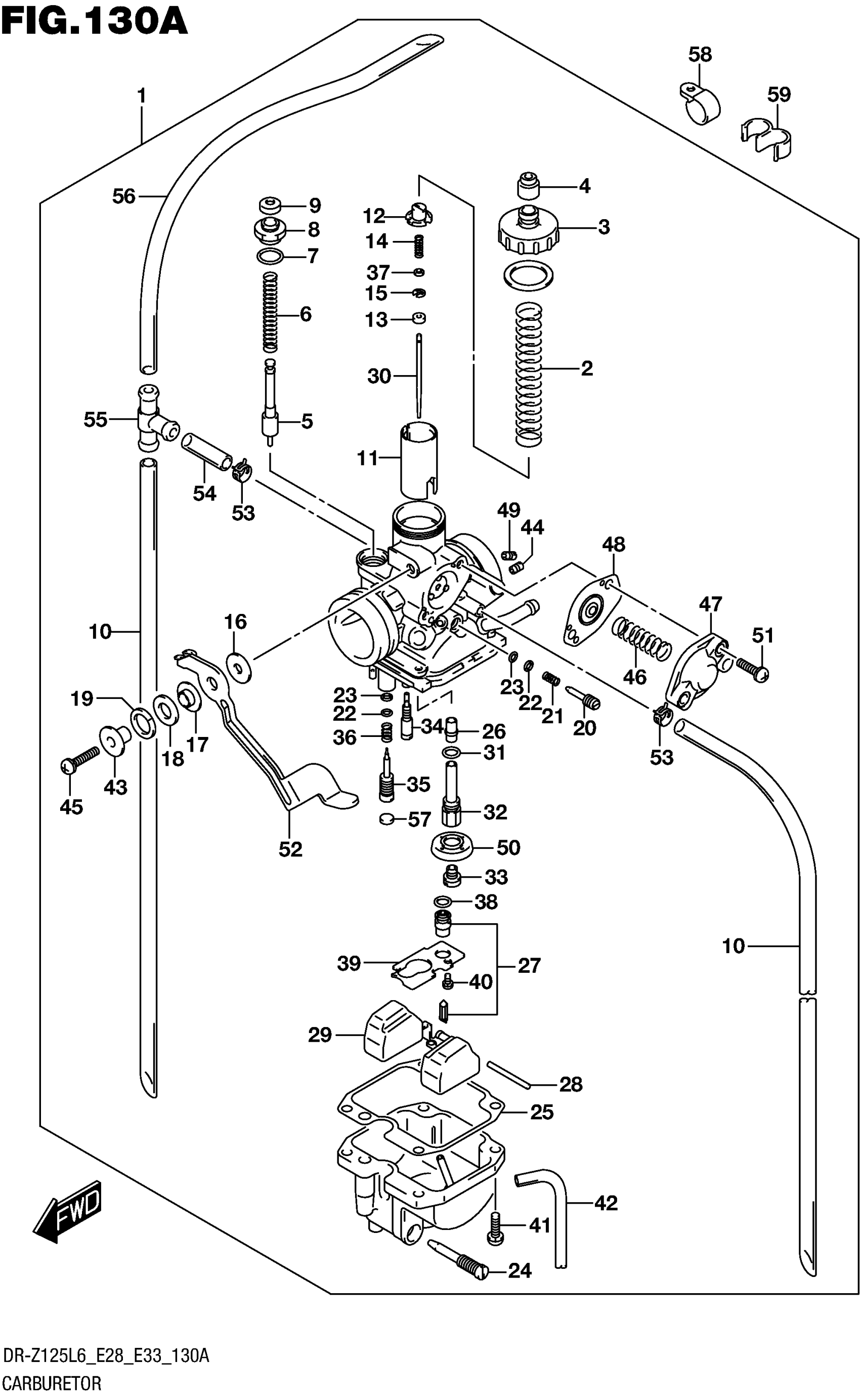

2016 Suzuki DR-Z125L6 Carburetor Diagram
Find the part on the Carburetor diagram for your 2016 Suzuki DR-Z125L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
7
.O RING (16) This part replaces 13278-47090.
13278-47091
8
.HOLDER, GUIDE
13418-44080
9
.CAP, STARTER VALVE
13682-31210
22
.WASHER
13291-29900
23
O-RING This part replaces 13295-29900.
13295-29901
31
.O RING This part replaces 13246-43010.
13246-43011
39
.PLATE
13259-29B10
40
SCREW This part replaces 13601-03068.
02112-0306B
41
.SCREW
13601-04148
42
.HOSE | L:650->400
13684-40A00
44
.JET (85)
09493-85001
47
.COVER ASSY
13502-10F00
48
.DIAPHRAGM ASSY This part replaces 13480-10F00.
13480-10F01
49
.JET (#145)
09492-29002
55
.NIPPLE
13685-48B00
58
CLAMP
09403-22403
