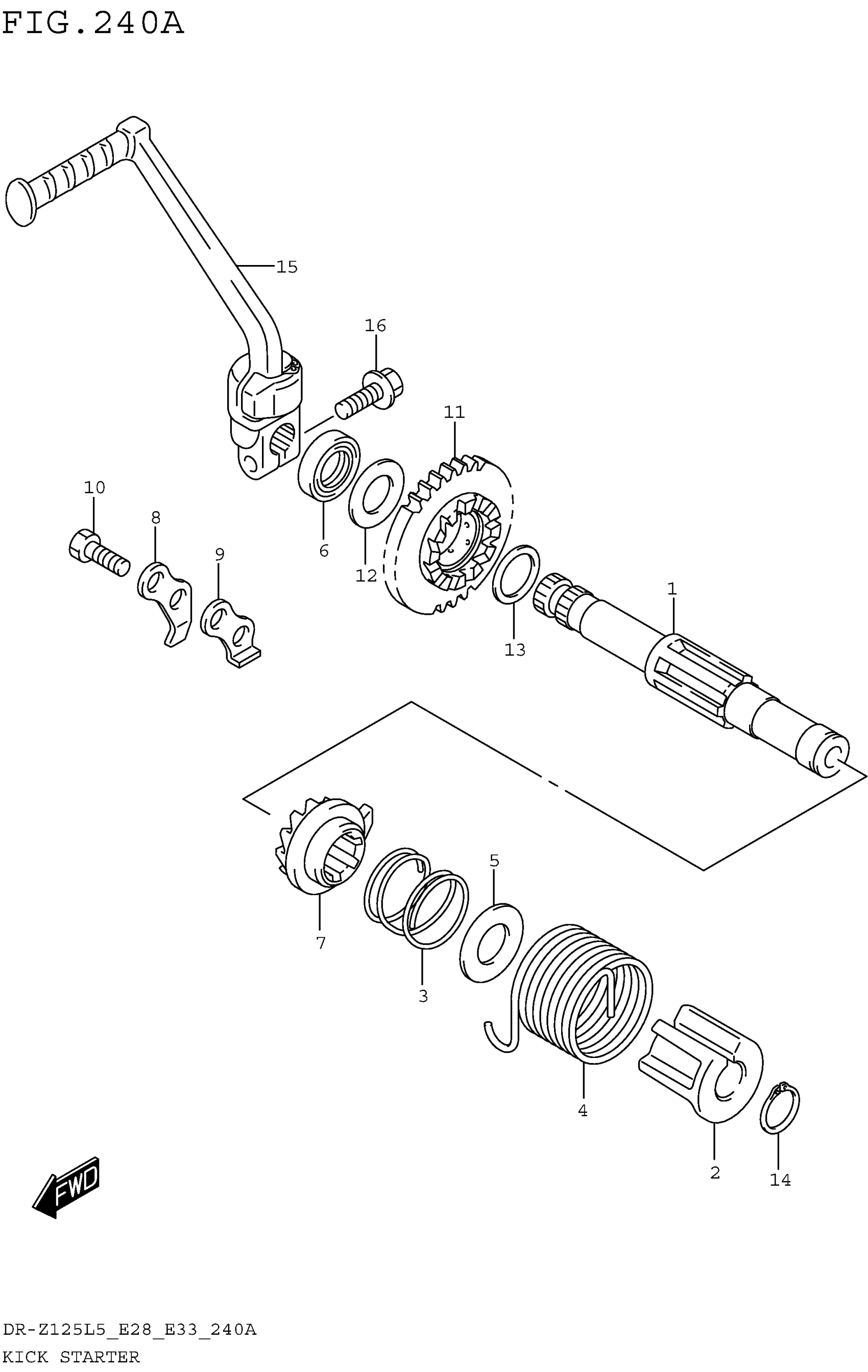

Find the part on the Kick Starter diagram for your 2015 Suzuki DR-Z125L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR-Z125L5 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$113.65

In stock

2

GUIDE, KICK STARTER

26221-05200

1

$9.50

In stock

3

SPRING

09440-32006

1

$2.58

In stock

4

SPRING

09448-45003

1

$7.10

In stock

5

WASHER

08211-17341

1

$2.73

In stock

6

OIL SEAL (16X24X5)

09285-16003

1

$3.38

In stock

7

STARTER, KICK

26231-38202

1

$30.03

In stock

8

GUIDE, KICK STARTER

26232-38200

1
Out of stock

9

STOPPER, KICK STARTER

26233-32400

1

$6.10

In stock

10

2

$4.53

In stock

11

GEAR, KICK STARTER DRIVE

26240-05202

1
Out of stock

12

WASHER (16X30.5X1)

09160-16003

1

$3.67

In stock

13

SHIM (20X26X1)

09181-20139

1
Out of stock

14

CIRCLIP

08331-31179

1

$2.03

In stock

15

1

$93.70

In stock

16

BOLT

01500-0825B

1

$3.07

In stock
