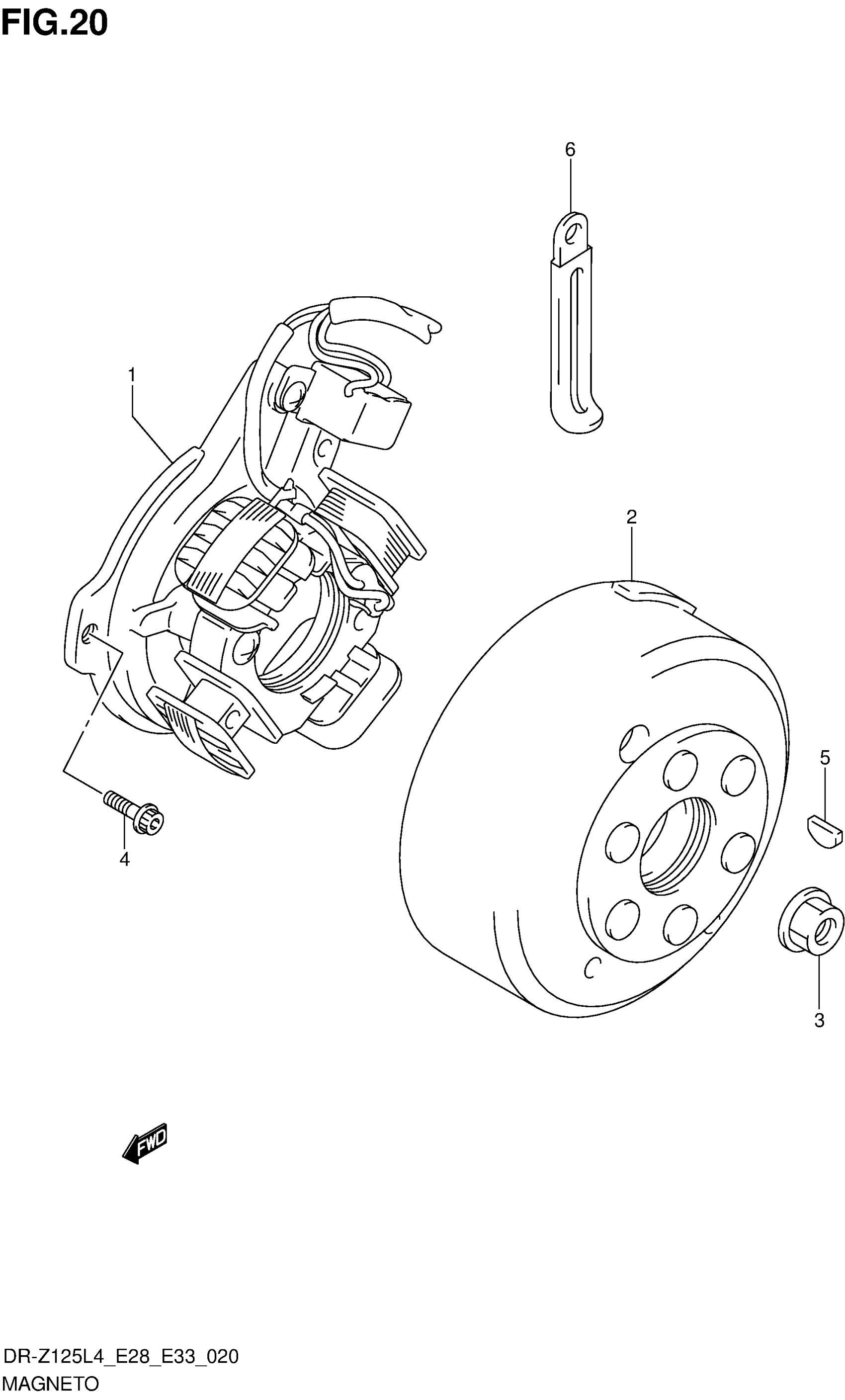

Find the part on the Magneto diagram for your 2014 Suzuki DR-Z125L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DR-Z125L4 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-08G00

1

$337.67

In stock

2

ROTOR ASSY

32102-08G00

1
Out of stock

3

NUT

09159-10110

1

$3.42

In stock

4

BOLT

07120-0512A

3
Out of stock

5

KEY

08341-31039

1
Out of stock

6

1

$1.89

In stock
