2014 Suzuki DR-Z125L4 Gasket SET Diagram

← All diagrams

Find the part on the Gasket SET diagram for your 2014 Suzuki DR-Z125L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

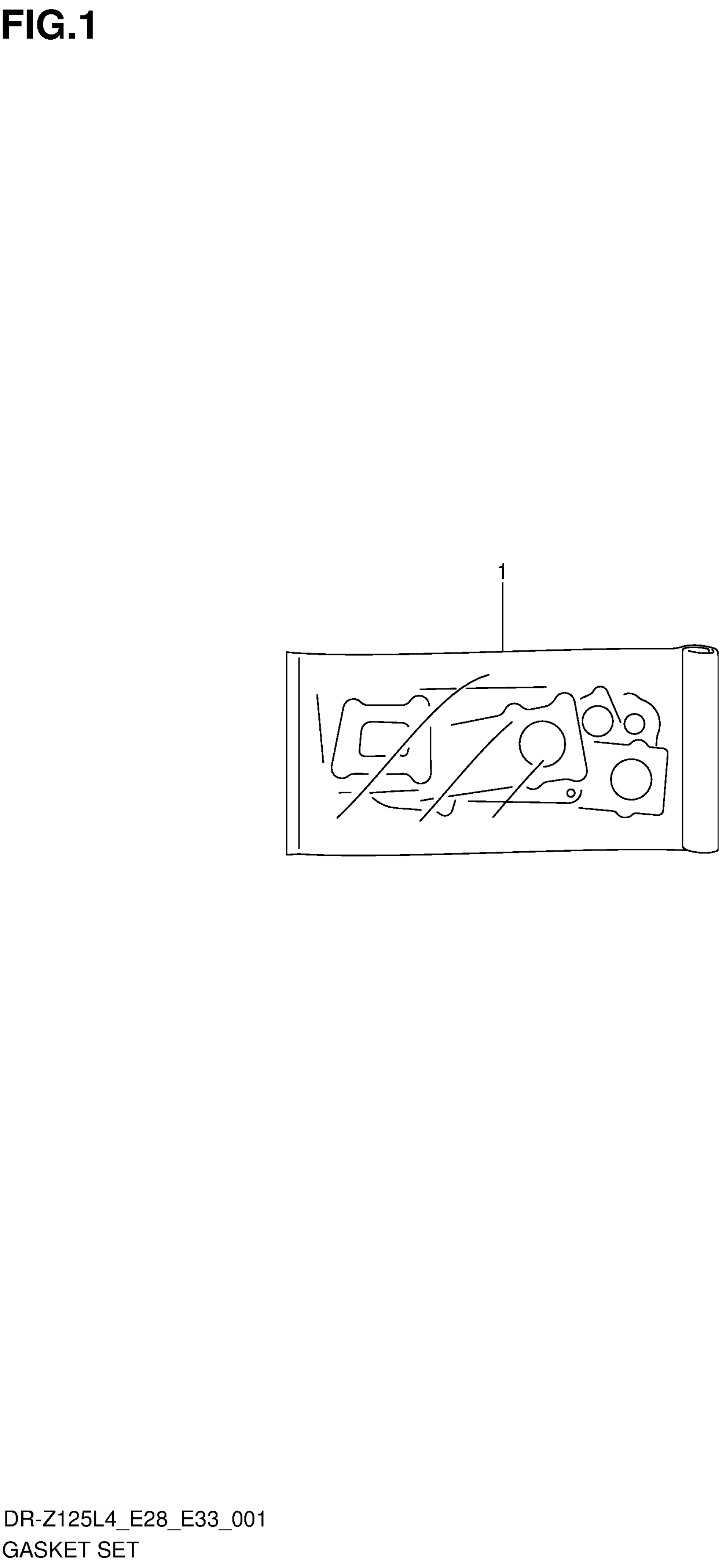

2014 Suzuki DR-Z125L4 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11401-08810

1

$74.38

In stock

2

GASKET, CYLINDER HEAD | NOT ILLUSTRATED

11141-05202

1
Out of stock

3

1

$5.76

In stock

4

1

$12.78

In stock

5

1

$7.54

In stock

6

1

$2.92

In stock

7

.GASKET,EXHAUST | NOT ILLUSTRATED This part replaces 14181-14D00.

14181-18C00

1
Out of stock

8

1

$21.88

In stock

9

2

$2.78

In stock

10

GASKET (13.8X18.8X0.4) | NOT ILLUSTRATED

09168-14002

1
Out of stock

11

2

$3.58

In stock

12

O RING (D:1.9,ID:13) | NOT ILLUSTRATED

09280-13004

1
Out of stock

13

O RING (D:3.1,ID:6.8) | NOT ILLUSTRATED

09280-17003

1
Out of stock

14

.O-RING (D:2.4,ID:21.8) | NOT ILLUSTRATED

09280-22001

1
Out of stock

15

O RING (D:3.1,ID:22.7) | NOT ILLUSTRATED

09280-22008

1
Out of stock

16

2

$1.77

In stock

17

O RING (D:2.4,ID:52.6) | NOT ILLUSTRATED

09280-54001

1
Out of stock

18

1

$3.08

In stock
