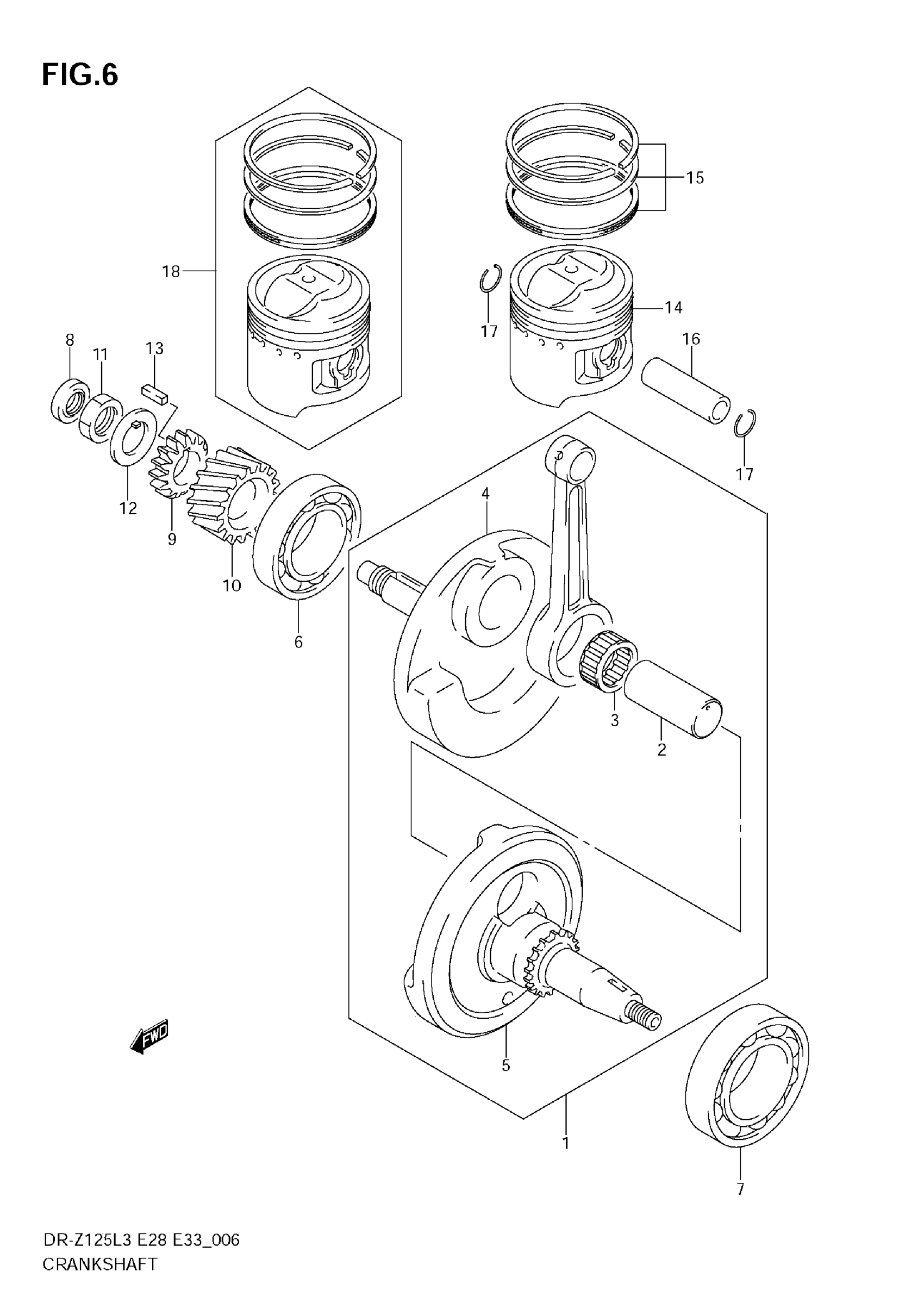

Suzuki DR-Z125L3 (2013) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-05240

Unavailable

2

.PIN, CRANK

12211-05231

Unavailable

3

BEARING (28X36X15.8)

09263-28027-0B0

Unavailable

4

.CRANKSHAFT RH

12221-05210

Unavailable

5

.CRANKSHAFT LH

12261-05210

Unavailable

6

BEARING, RH (28X68X18)

09262-28014

$74.08

7

BEARING, LH (35X72X17)

09262-35038

$42.19

8

OIL SEAL (12X21X7)

09282-12009

$16.75

9

GEAR, OIL PUMP DRIVE (NT:15)

16321-05201

Unavailable

10

GEAR, PRIMARY DRIVE (NT:17)

21111-05200-0C0

Unavailable

11

NUT

09140-16019

$3.33

12

WASHER

09166-16012

$2.77

13

KEY

09421-04004

$3.66

14

PISTON

12111-05202-0F0

$78.95

15

RING SET, PISTON

12140-01410

$33.97

16

PIN, PISTON

12151-05220-0A0

$15.40

17

RING

09381-14001

$1.43

18

PISTON SET (OS:0.5) | OPT

12100-05200-050

$139.88
