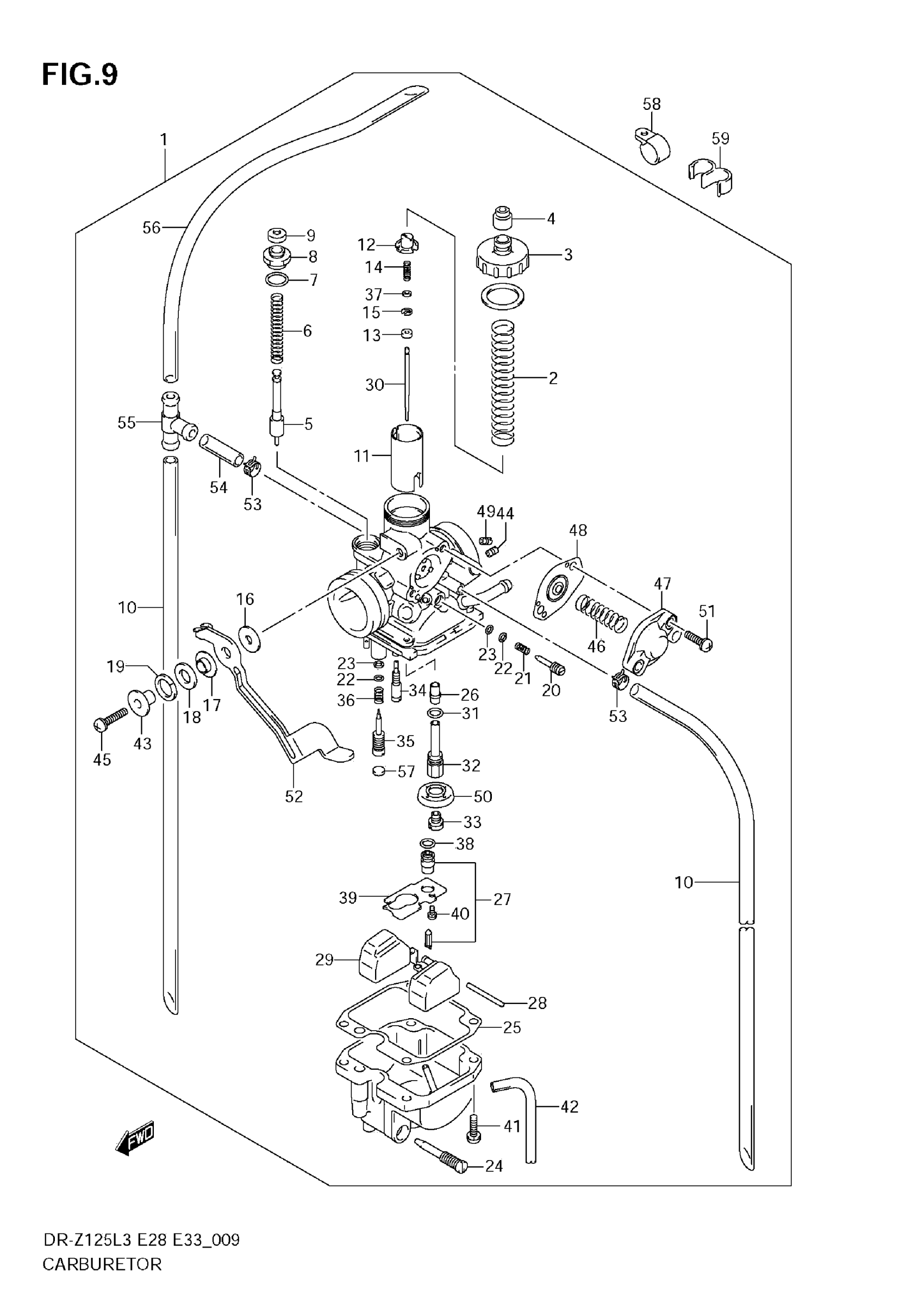

Suzuki DR-Z125L3 (2013) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-08G00.

13200-08G02

$221.10

2

SPRING

13573-08G00

$11.37

3

MIXING CAP ASSY

13261-08G00

$36.22

4

.CAP This part replaces 13681-04010.

13681-04011

$4.51

5

PLUNGER ASSY

13411-05320

$30.25

6

SPRING

13417-08G00

$6.28

7

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

8

.HOLDER, GUIDE

13418-44080

$9.41

9

.CAP, STARTER VALVE

13682-31210

$4.00

10

HOSE (5X8X475)

13686-08G20

$11.92

11

.VALVE, PISTON

13551-08G00

$45.20

12

HOLDER

13389-08G00

$8.32

13

RING

13387-47010

$6.80

14

SPRING

13481-33E00

$3.49

15

.E-RING

13394-40D20

$6.15

16

WASHER

13421-05320

$3.53

17

RING

13432-05320

$4.80

18

WASHER

13589-47070

$1.90

19

.LOCK WASHER

08321-01087

$1.83

20

.SCREW, ADJUST

13267-08G00

$15.43

21

SPRING

13268-08G00

$5.52

22

WASHER

13291-29900

$1.87

23

O-RING This part replaces 13295-29900.

13295-29901

$3.97

24

SCREW

13247-08G00

$6.87

25

GASKET

13251-29B00

$9.92

26

.JET, NEEDLE

13341-08G00

$60.85

27

.VALVE ASSY, NEEDLE

13370-08G00

$67.18

28

.PIN, FLOAT

13254-01010

$3.41

29

FLOAT ASSY

13240-08G00

$47.05

30

.JET, NEEDLE (5HGM74)

13383-08G00

$21.23

31

.O RING This part replaces 13246-43010.

13246-43011

$3.97

32

.JET, HOLDER

13385-08G00

$39.73

33

.JET (#102.5)

09491-20012

$12.38

34

.JET (17.5)

09492-17017

$29.27

35

ADJUSTER

13279-08G00

$16.77

36

.SPRING (NT:45)

13268-47070

$3.97

37

WASHER

13382-08G00

$5.10

38

.O RING

13374-46710

$4.09

39

PLATE

13259-29B10

Unavailable

40

SCREW This part replaces 13601-03068.

02112-0306B

$1.61

41

SCREW

13601-04148

$2.80

42

HOSE | L:650->400

13684-40A00

$12.72

43

RING

13424-05320

$6.92

44

.JET (85)

09493-85001

Unavailable

45

SCREW

13601-44A10

$4.90

46

SPRING

13481-08G00

$5.17

47

COVER ASSY

13502-10F00

$44.80

48

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$15.37

49

.JET (#145)

09492-29002

Unavailable

50

HOLDER

13387-08G00

$7.98

51

SCREW

13601-08G00

$4.28

52

LEVER

13413-08G00

$29.97

53

CLIP

13671-08G00

$6.45

54

HOSE (5X8X25)

13686-08G00

$3.37

55

.NIPPLE

13685-48B00

$11.44

56

HOSE (5X8X375)

13686-08G10

$9.70

57

PLUG

13281-05A00

$4.21

58

CLAMP, CARB OVERFLOW HOSE

09403-22403

Unavailable

59

CLIP, AIR VENT HOSE

09408-00033

$3.08
