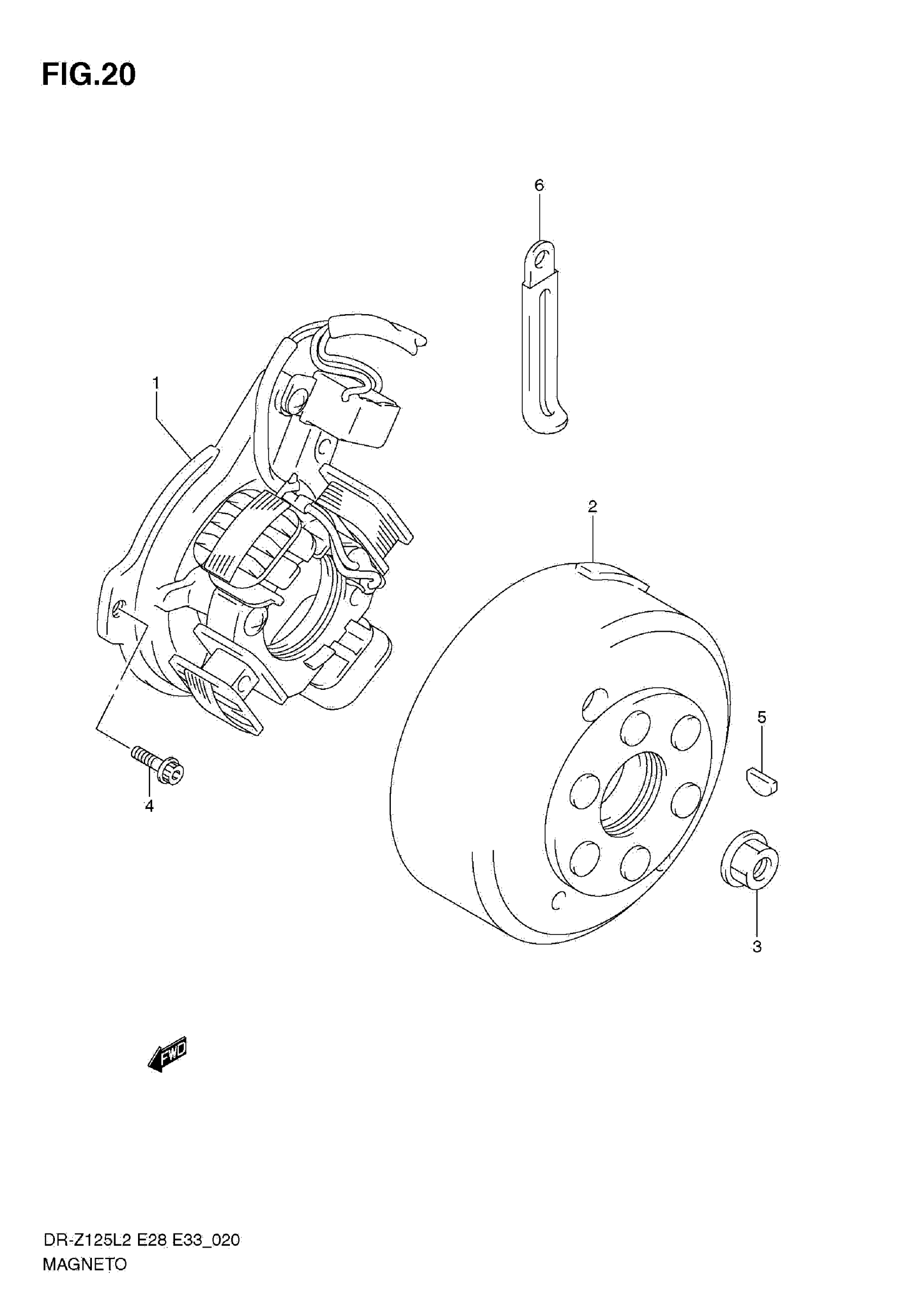

Find the part on the Magneto diagram for your 2012 Suzuki DR-Z125L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z125L2 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-08G00

1
Out of stock

2

ROTOR ASSY

32102-08G00

1
Out of stock

3

NUT

09159-10110

1
Out of stock

4

BOLT

07120-0512A

3
Out of stock

5

KEY

08341-31039

1
Out of stock

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock
