2012 Suzuki DR-Z125L2 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2012 Suzuki DR-Z125L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

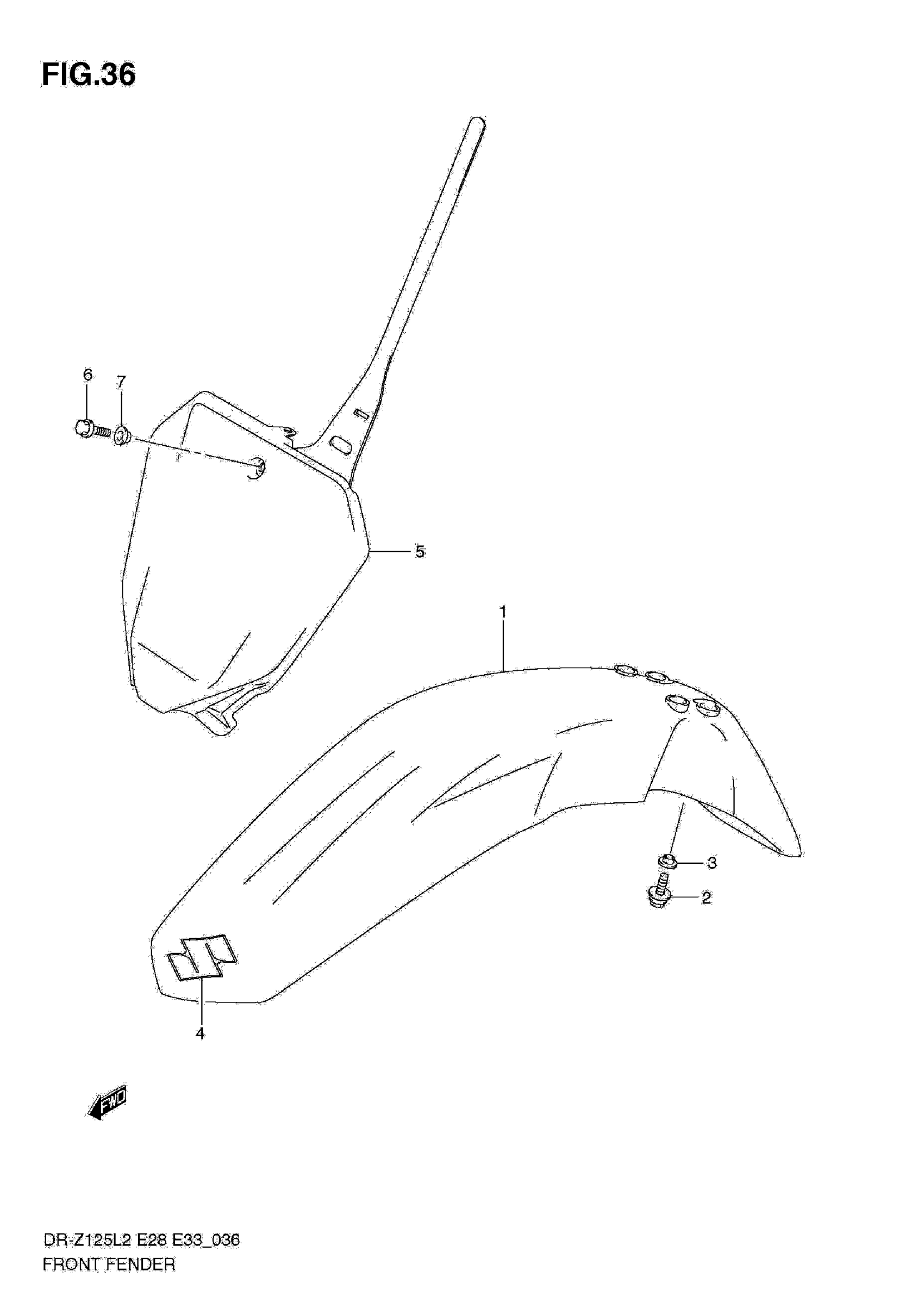

2012 Suzuki DR-Z125L2 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FR (YELLOW)

53111-08G50-YU1

1

$151.03

In stock

2

BOLT (6X16)

09116-06170

4
Out of stock

3

WASHER

09169-06073

4
Out of stock

4

EMBLEM, S (ORANGE)

68641-43EK0-YCF

1

$14.98

In stock

5

PLATE, NUMBER FR (WHITE)

94911-08G00-30H

1

$81.47

In stock

6

BOLT

01547-0616A

1
Out of stock

7

WASHER

09169-06071

1
Out of stock
