2005 Suzuki DR-Z110 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

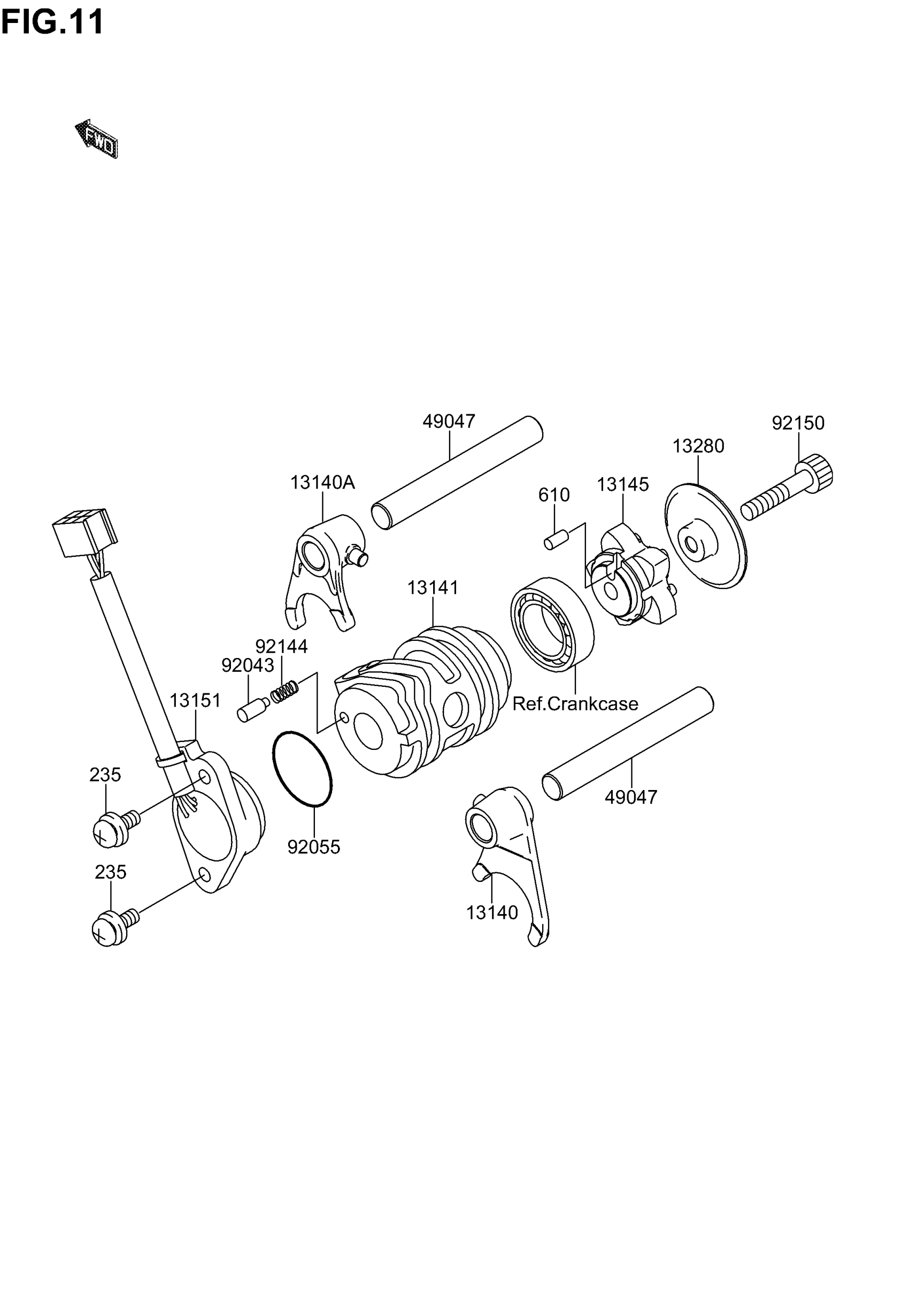

2005 Suzuki DR-Z110 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

NO DESCRIPTION AVAILABLE This part replaces K1314-01263.

K1314-00058

1
Out of stock

13140A

FORK,SHIFT This part replaces K1314-01289.

K1314-00059

1
Out of stock

13141

DRUM,CHANGE This part replaces K1314-11226.

K1314-10038

1
Out of stock

13145

CAM-CHANGE DRUM This part replaces K1314-51093.

K1314-51081

1
Out of stock

13151

SWITCH COMP,NEU This part replaces K1315-11082.

K1315-10021

1
Out of stock

13280

HOLDER

K1328-01228

1
Out of stock

49047

ROD-SHIFT

K4904-71058

2
Out of stock

92043

NO DESCRIPTION AVAILABLE This part replaces K9204-31385.

K9204-30736

1
Out of stock

92055

RING-O

KK920-55091

1
Out of stock

92144

SPRING

K9214-41245

1
Out of stock

92150

BOLT,SOCKET,6X30

K9215-01433

1
Out of stock

235

SCREW-PAN-WP-CROS

KK235-B0514

2
Out of stock

610

ROLLER,4X8

KK610-A0408

1
Out of stock
