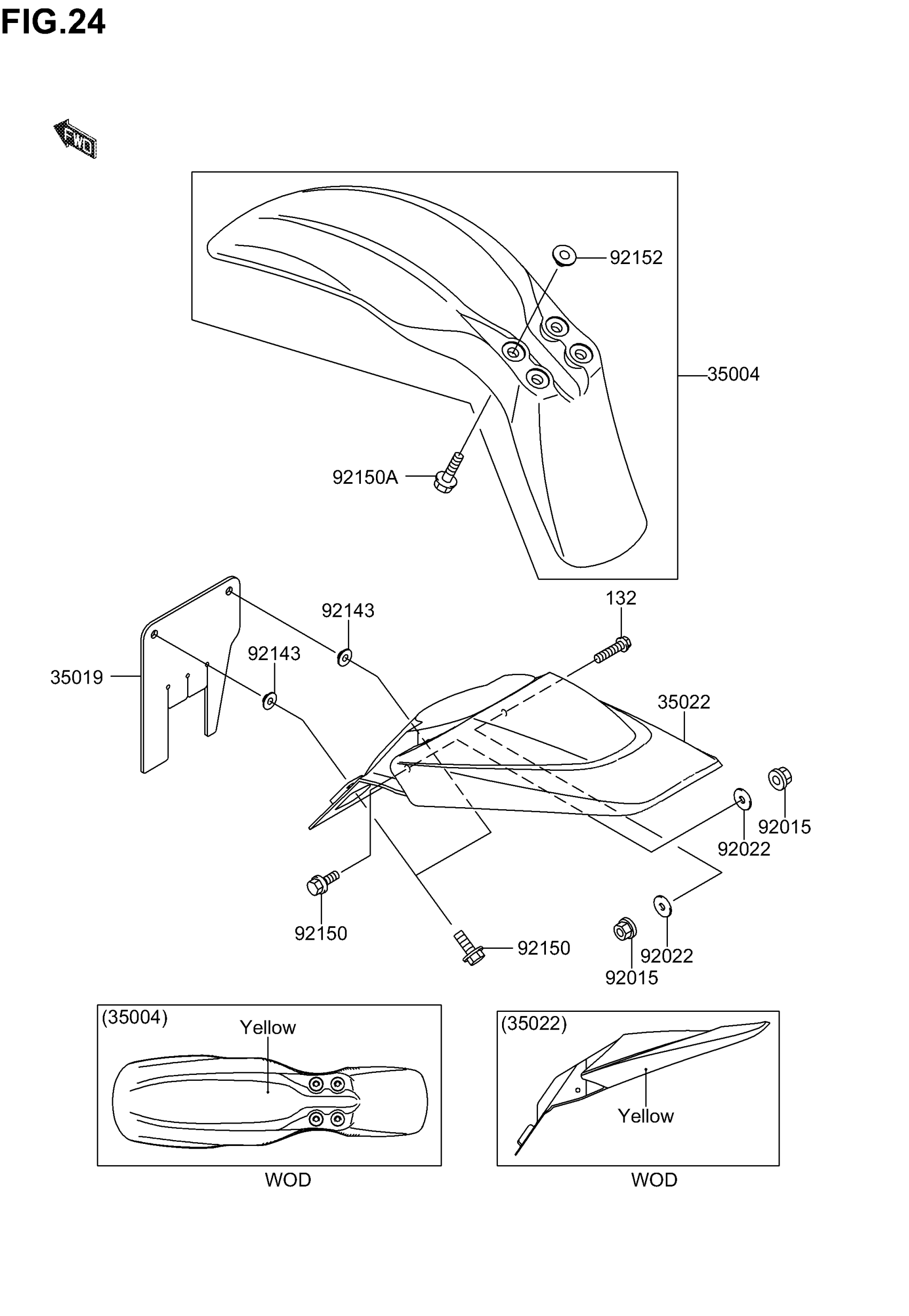

Suzuki DR-Z110 (2005) FENDER Diagram

FENDER-FRONT,C.YELLOW

K3500-41457-267

Unavailable

FLAP

K3501-91399

Unavailable

FENDER-COMP-REAR,C.YELLOW

K3502-21342-267

Unavailable

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.38

WASHER,6.5X20X1 This part replaces KK920-22125.

K9220-00283

$1.43

COLLAR

K9214-31087

Unavailable

BOLT,FLANGED,6X16

K9215-01506

$2.32

BOLT,6X20

K9215-01892

$3.35

COLLAR

K9215-21255

$3.48

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$2.15
