2024 Suzuki DL800RQM4 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2024 Suzuki DL800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

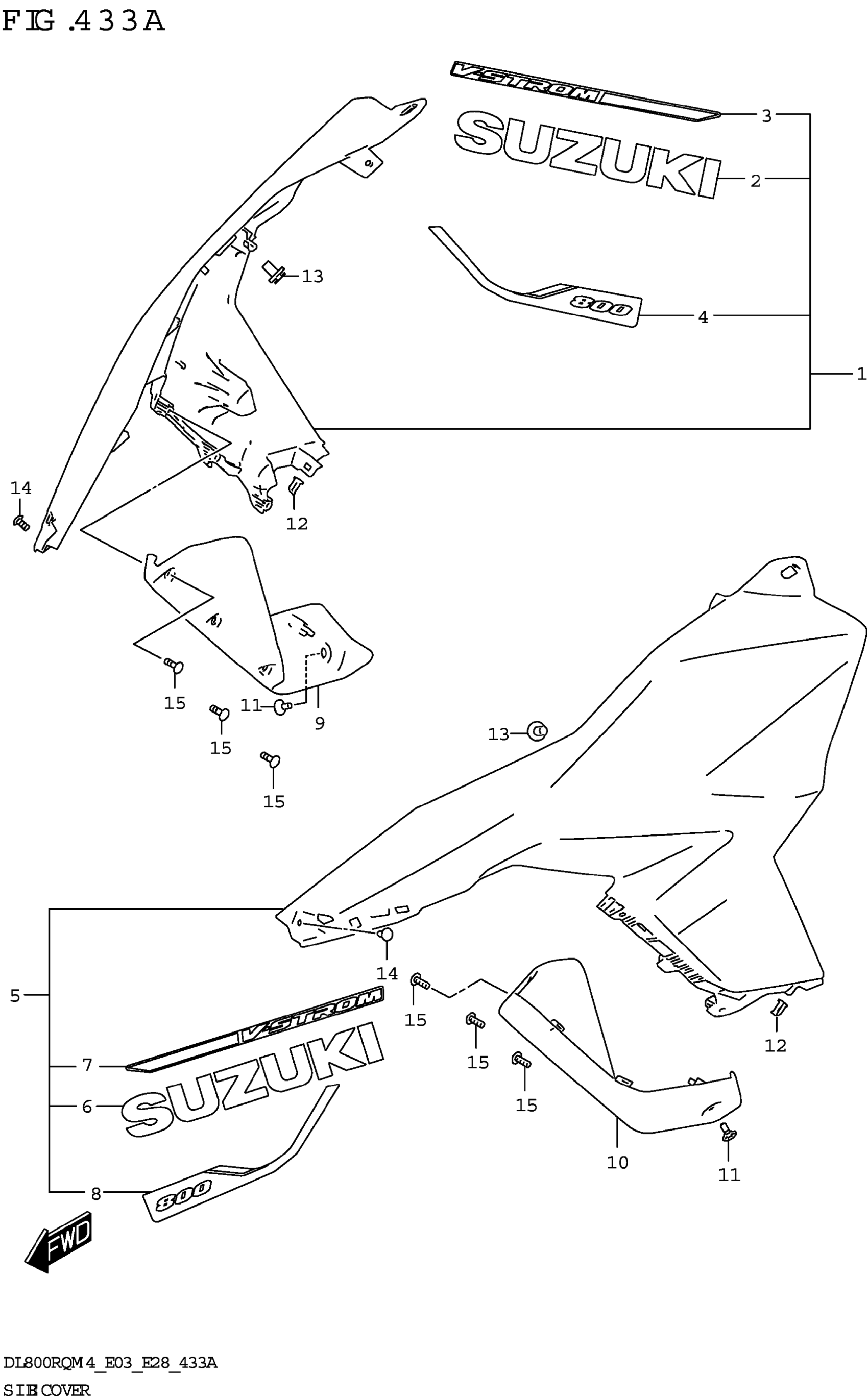

2024 Suzuki DL800RQM4 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COVER,SIDE,R (BLUE) | BODY COLOR:YKY

94420-25L10-YKY

1
Out of stock

1-2

COVER,SIDE,R (BLACK) | BODY COLOR:YVB

94420-25L10-YVB

1
Out of stock

1-3

COVER,SIDE,R (GREEN) | BODY COLOR:QVP

94420-25L10-QVP

1
Out of stock

2

.EMBLEM,SUZUKI (SILVER)

68111-47C10-QKA

1
Out of stock

3-1

.EMBLEM,SIDE COVER,R (SILVER, | RAY,BLUE) BODY COLOR:YKY

68271-25L10-CM5

1
Out of stock

3-2

.EMBLEM,SIDE COVER,R (GRAY,SI | VER,BLACK) BODY COLOR:YVB

68271-25L10-CM6

1
Out of stock

3-3

.EMBLEM,SIDE COVER,R (BLACK,S | LVER,GREEN) BODY COLOR:QVP

68271-25L10-CM4

1
Out of stock

4-1

.TAPE,SIDE COVER,R (SILVER,GR | Y,BLUE) BODY COLOR:YKY

68275-25L10-CM5

1
Out of stock

4-2

.TAPE,SIDE COVER,R (GRAY,SILV | R,BLACK) BODY COLOR:YVB

68275-25L10-CM6

1
Out of stock

4-3

.TAPE,SIDE COVER,R (BLACK,SIL | ER,GREEN) BODY COLOR:QVP

68275-25L10-CM4

1
Out of stock

5-1

COVER,SIDE,L (BLUE) | BODY COLOR:YKY

94430-25L10-YKY

1
Out of stock

5-2

COVER,SIDE,L (BLACK) | BODY COLOR:YVB

94430-25L10-YVB

1
Out of stock

5-3

COVER,SIDE,L (GREEN) | BODY COLOR:QVP

94430-25L10-QVP

1
Out of stock

6

.EMBLEM,SUZUKI (SILVER)

68111-47C10-QKA

1
Out of stock

7-1

.EMBLEM,SIDE COVER,L (SILVER, | RAY,BLUE) BODY COLOR:YKY

68281-25L10-CM5

1
Out of stock

7-2

.EMBLEM,SIDE COVER,L (GRAY,SI | VER,BLACK) BODY COLOR:YVB

68281-25L10-CM6

1
Out of stock

7-3

.EMBLEM,SIDE COVER,L (BLACK,S | LVER,GREEN) BODY COLOR:QVP

68281-25L10-CM4

1
Out of stock

8-1

.TAPE,SIDE COVER,L (SILVER,GR | Y,BLUE) BODY COLOR:YKY

68285-25L10-CM5

1
Out of stock

8-2

.TAPE,SIDE COVER,L (GRAY,SILV | R,BLACK) BODY COLOR:YVB

68285-25L10-CM6

1
Out of stock

8-3

.TAPE,SIDE COVER,L (BLACK,SIL | ER,GREEN) BODY COLOR:QVP

68285-25L10-CM4

1
Out of stock

9

GARNISH,SIDE COVER,R (BLACK)

94442-25LA0-019

1
Out of stock

10

GARNISH,SIDE COVER,L (BLACK)

94452-25LA0-019

1
Out of stock

11

SCREW (5X13)

09139-05091

2
Out of stock

12

CLIP

09409-08012

4
Out of stock

13

CLIP

09409-10314

2
Out of stock

14

SCREW

03541-0512A

6
Out of stock

15

SCREW

03541-0516A

6
Out of stock
