2024 Suzuki DL800RQM4 Muffler Diagram

← All diagrams

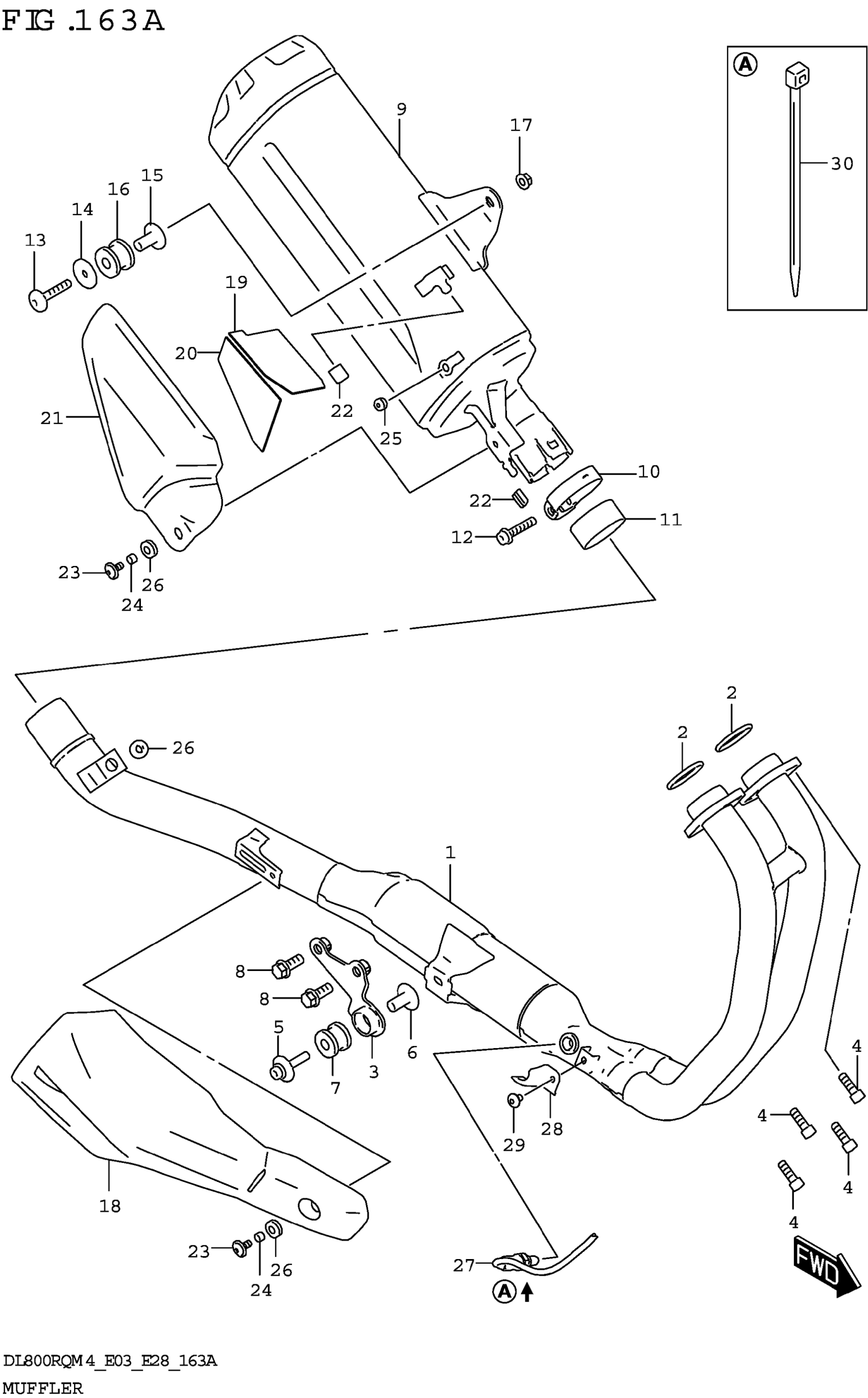

Find the part on the Muffler diagram for your 2024 Suzuki DL800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800RQM4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST

14100-25LH0

1
Out of stock

2

.GASKET,EXHAUST PIPE

14181-04K00

2
Out of stock

3

BRACKET,EXH SPRT

14770-25LG0

1
Out of stock

4

BOLT (8X25)

09106-08178

4
Out of stock

5

BOLT

09116-08176

1
Out of stock

6

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

7

CUSHION (12X30X24)

09320-12077

1
Out of stock

8

BOLT

01550-1025B

2
Out of stock

9

BODY,MUFFLER

14310-25LG0

1
Out of stock

10

CLAMP,MUFFLER CONNECTOR

14459-47H00

1
Out of stock

11

CONNECTOR,MUFFLER

14771-24F10

1
Out of stock

12

BOLT (8X40)

09106-08162

1
Out of stock

13

BOLT (8X45)

09106-08195

1
Out of stock

14

WASHER (8.5X33X1.6)

09160-08162

1
Out of stock

15

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

16

CUSHION

09320-12049

1

$10.34

In stock

17

NUT

08316-1008B

1
Out of stock

18

COVER,MUFFLER FR

14761-25LG0

1
Out of stock

19

SHIELD,MUF COV HEAT

14765-25LG0

1
Out of stock

20

SHIELD,MUF COV FR HEAT NO.2

14766-25LG0

1
Out of stock

21

COVER,MUFFLER

14780-25LG0

1
Out of stock

22

GROMMET

14795-10FA0

2
Out of stock

23

SCREW

09139-06240

2
Out of stock

24

SPACER (6.5X9X5.7)

09180-06256

2
Out of stock

25

CUSHION (4X12X8)

09320-04013

1
Out of stock

26

CUSHION (8.4X18X6)

09320-08066

3
Out of stock

27

SENSOR,OXYGEN

18213-25L40

1
Out of stock

28

CLAMP (L:145)

09407-14407

1
Out of stock

29

COVER,OXYGEN SENSOR

14183-25L00

1
Out of stock

30

SCREW (6X10)

09139-06122

1
Out of stock
