2024 Suzuki DL800RQM4 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2024 Suzuki DL800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

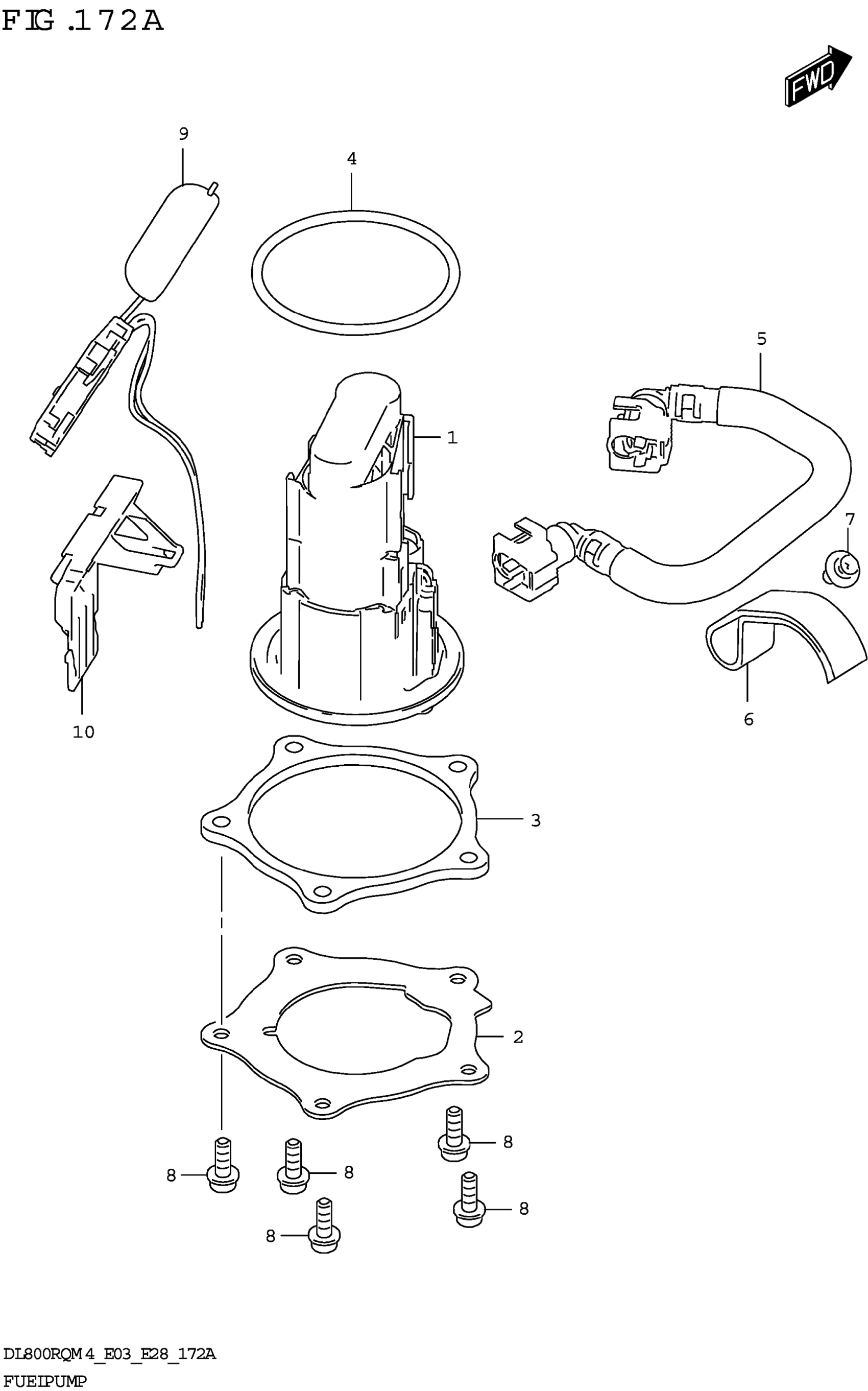

2024 Suzuki DL800RQM4 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-25L00

1

$420.90

In stock

2

PLATE,FUEL PUMP OUTER

15121-25L00

1

$11.66

In stock

3

PLATE,FUEL PUMP INNER

15122-17K00

1

$49.37

In stock

4

O-RING,FUEL PUMP

15201-07L00

1

$20.93

In stock

5

HOSE,FUEL

15810-25L00

1

$167.00

In stock

6

CLAMP,FUEL HOSE

15821-25L00

1

$4.47

In stock

7

CLIP

09409-06347

1

$2.20

In stock

8

BOLT

07120-0616A

5
Out of stock

9

1

$53.82

In stock

10

1

$3.72

In stock
