2024 Suzuki DL800RQM4 Front Fork Damper Diagram

← All diagrams

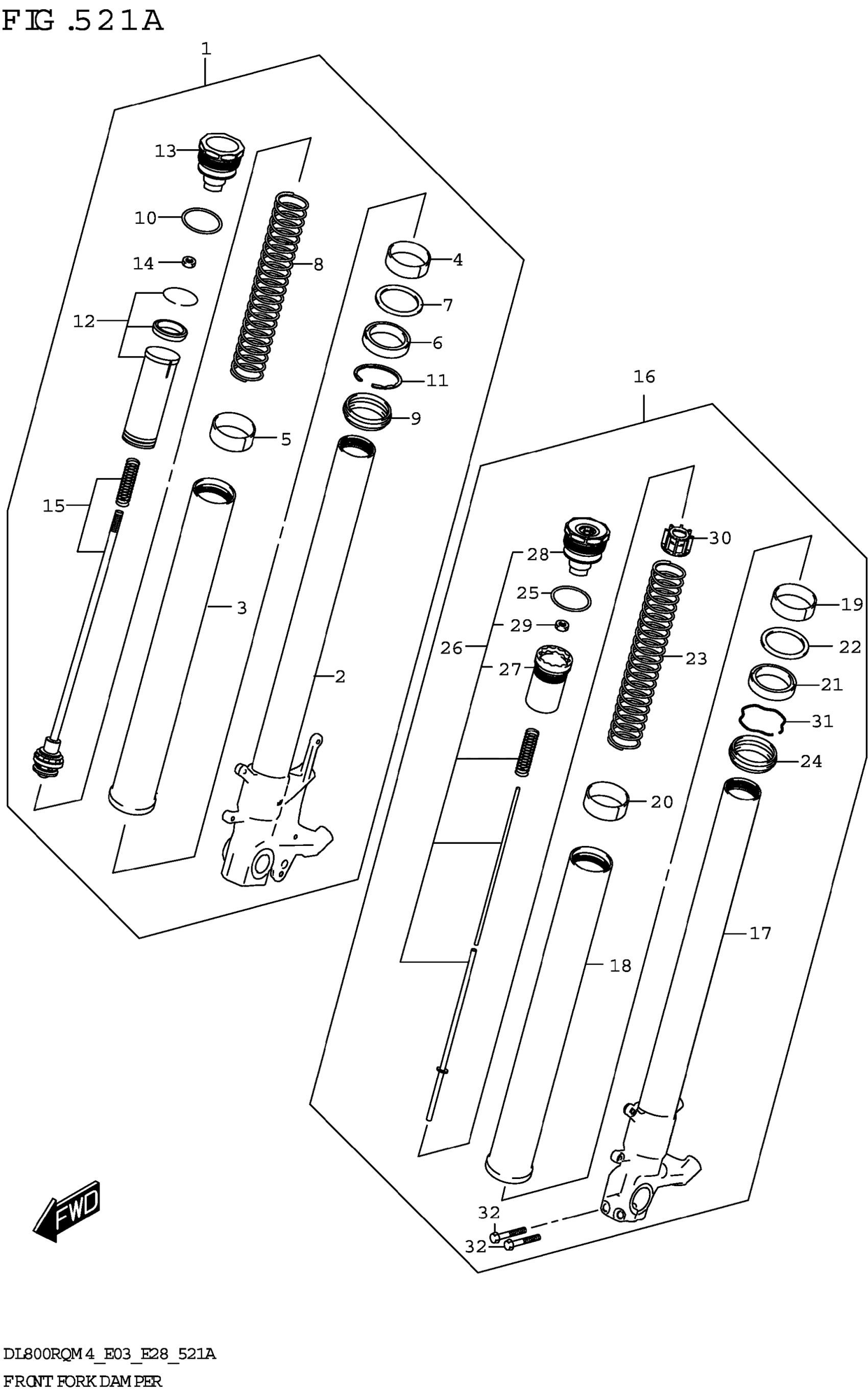

Find the part on the Front Fork Damper diagram for your 2024 Suzuki DL800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800RQM4 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,R (BLACK)

51103-25L20-291

1

$959.75

In stock

2

.TUBE,INNER,R (BLACK)

51110-25L20-291

1

$486.65

In stock

3

.TUBE,OUTER

51131-25L20

1

$520.43

In stock

4

.BUSH,GUIDE

51152-01H10

1
Out of stock

5

.BUSH,SLIDE

51152-14J00

1

$14.17

In stock

6

.SEAL,OIL

51153-01H10

1
Out of stock

7

.SPACER,SEAL

51168-38B00

1
Out of stock

8

.SPRING,FR

51171-25L20

1

$50.57

In stock

9

.DUST SEAL

51173-15D00

1

$23.78

In stock

10

.O-RING

51187-15D50

1

$5.13

In stock

11

.INTERNAL CIRCLIP

51156-25L20

1

$4.42

In stock

12

.ROD GUIDE CASE

51174-25L20

1

$77.68

In stock

13

.BOLT,FORK

51189-25L20

1

$90.62

In stock

14

.NUT

51827-25L20

1

$4.48

In stock

15

.PISTON ROD

52110-25L20

1

$141.76

In stock

16

DAMPER ASSY,L (BLACK)

51104-25L20-291

1

$959.75

In stock

17

.TUBE,INNER,L (BLACK)

51210-25L20-291

1

$486.65

In stock

18

.TUBE,OUTER

51131-25L20

1

$520.43

In stock

19

.BUSH,GUIDE

51152-01H10

1
Out of stock

20

.BUSH,SLIDE

51152-14J00

1

$14.17

In stock

21

.SEAL,OIL

51153-01H10

1
Out of stock

22

.SPACER,SEAL

51168-38B00

1
Out of stock

23

.SPRING,FR

51171-25L20

1

$50.57

In stock

24

.DUST SEAL

51173-15D00

1

$23.78

In stock

25

.O-RING

51187-15D50

1

$5.13

In stock

26

.JOINT ROD

51128-25L20

1

$254.13

In stock

27

..INNER FORK BOLT

51188-25L20

1

$52.72

In stock

28

..BOLT,FORK

51199-25L20

1

$160.13

In stock

29

..NUT

51827-29G00

1
Out of stock

30

.SPRING SEAT

51175-25L20

1

$23.48

In stock

31

.RING,STOPPER

51556-38B00

1
Out of stock

32

.BOLT,BRACKET UPPER | LH

51328-44HB0

2
Out of stock
