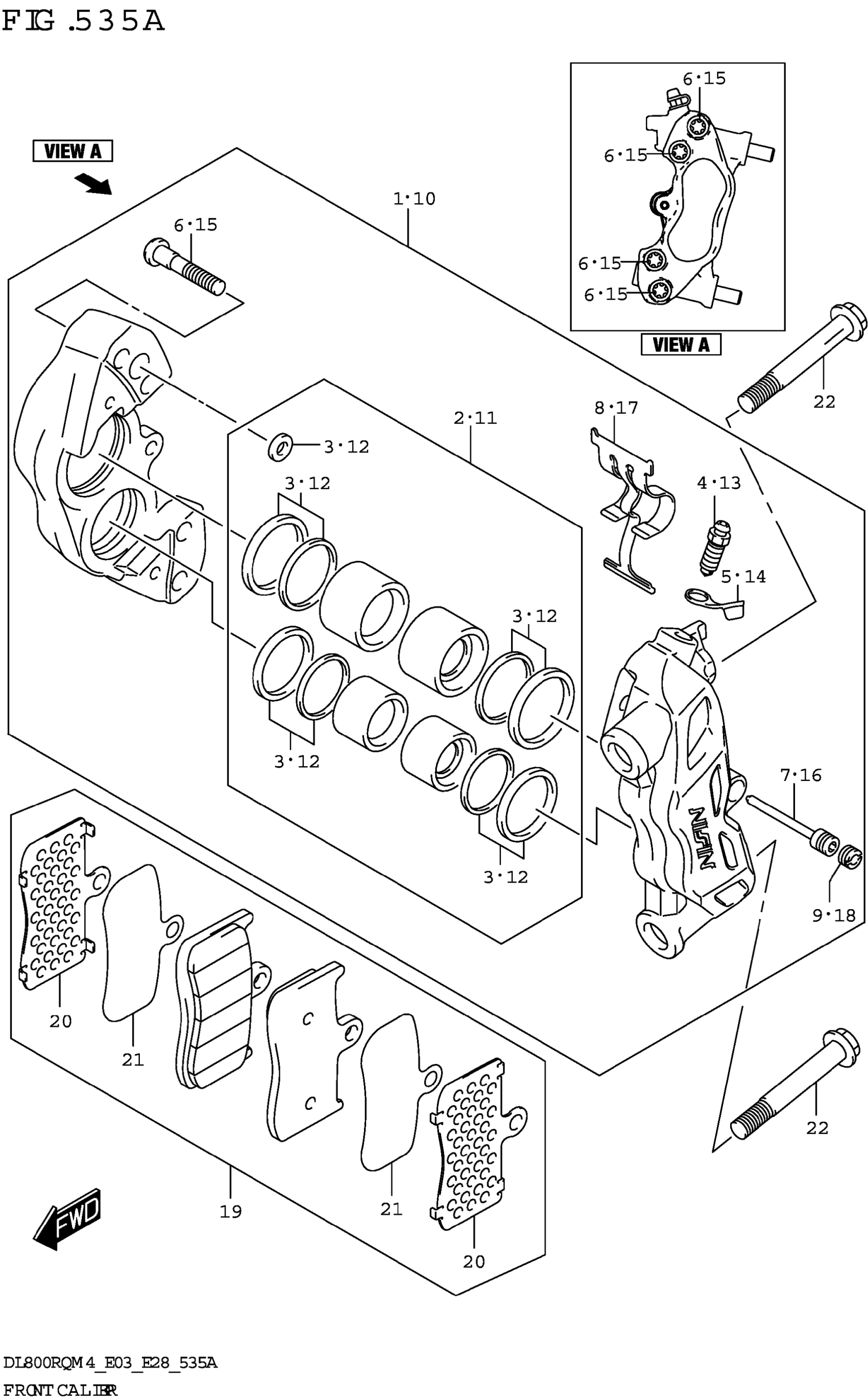

Find the part on the Front Caliper diagram for your 2024 Suzuki DL800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL800RQM4 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FRONT,R

59100-23H40-999

1

$420.67

In stock

2

.PISTON SET

59100-23860

1

$66.98

In stock

3

..SEAL SET,PISTON

59100-23810

1

$89.96

In stock

4

.BLEEDER

59121-01A00

1
Out of stock

5

.CAP,BLEEDER

59122-01A00

1
Out of stock

6

.BOLT

59145-23H00

4
Out of stock

7

.PIN

59345-00B20

1

$14.56

In stock

8

.SPRING,PAD

59151-23H00

1

$36.05

In stock

9

.PLUG,PIN

59146-21E10

1
Out of stock

10

CALIPER ASSY,FRONT,L

59300-23H40-999

1

$420.67

In stock

11

.PISTON SET

59100-23860

1

$66.98

In stock

12

..SEAL SET,PISTON

59100-23810

1

$89.96

In stock

13

.BLEEDER

59121-01A00

1
Out of stock

14

.CAP,BLEEDER

59122-01A00

1
Out of stock

15

.BOLT

59145-23H00

4
Out of stock

16

.PIN

59345-00B20

1

$14.56

In stock

17

.SPRING,PAD

59151-23H00

1

$36.05

In stock

18

.PLUG,PIN

59146-21E10

1
Out of stock

19

PAD SET

59100-23852

2

$55.62

In stock

20

.SHIM

59133-23H00

4
Out of stock

21

.INSULATOR

69132-23H00

4
Out of stock

22

BOLT

09106-10096

4

$4.62

In stock
