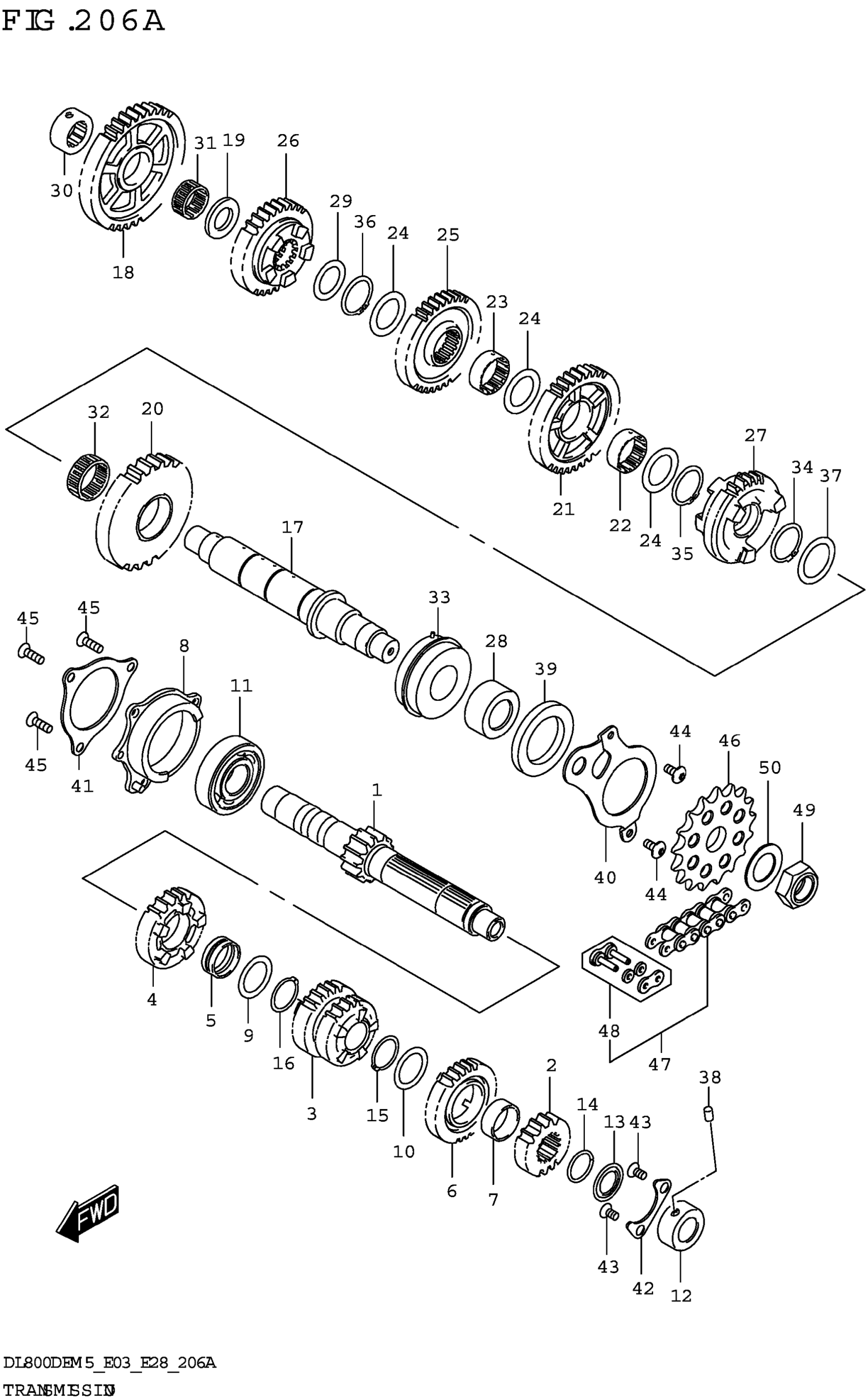

Suzuki DL800DERCM5 (2025) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:14)

24120-25L00

$226.73

2

GEAR,2ND DRIVE (NT:15)

24221-25L00

$81.00

3

GEAR,3RD & 4TH DRIVE (NT:20/2 | )

24231-25L00

$134.80

4

GEAR,5TH DRIVE (NT:26)

24251-25L00

$100.05

5

BUSH,5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR,6TH DRIVE (NT:28)

24261-25L00

$72.97

7

BUSH,6TH DRIVE GEAR

24262-35F10

$32.40

8

HOUSING,CNTR SHAFT BRG,R

24770-18H10

Unavailable

9

WASHER (27X36X1.0)

09160-27008

$4.00

10

WASHER,LOCK (27X36X1)

09167-27001

$2.56

11

BEARING (25X62X17)

09262-25073

$23.39

12

BEARING

09263-20123

$52.17

13

SEAL,OIL (20X31.2X2.7)

09285-20006

$5.88

14

CIRCLIP

09380-27004

$3.33

15

CIRCLIP

09380-27006

$2.73

16

CIRCLIP

09380-27006

$2.73

17

SHAFT,DRIVE

24131-25L00

$191.53

18

GEAR,1ST DRIVEN (NT:43)

24311-25L00

$88.48

19

SPACER,1ST DRIVEN GEAR,R

24315-25L00

$7.47

20

GEAR,2ND DRIVEN (NT:33)

24321-25L00

$104.83

21

GEAR,3RD DRIVEN (NT:34)

24331-25L00

$98.82

22

BUSH,3RD DRIVEN GEAR

24332-24F20

$41.55

23

BUSH,3RD DRIVEN GEAR

24332-24F20

$41.55

24

WASHER,3RD & 4TH DRIVEN GEAR

24333-47H00

$8.77

25

GEAR,4TH DRIVEN (NT:34)

24341-25L00

$101.83

26

GEAR,5TH DRIVEN (NT:32)

24351-25L00

$94.98

27

GEAR,6TH DRIVEN (NT:31)

24361-25L00

$99.73

28

SPACER,ENGINE SPROCKET

27531-25L00

$26.27

29

SHIM (24X34X1)

09181-24005

$3.21

30

BEARING (20X34X13.5)

09263-20087

$54.53

31

BEARING (24X28X13)

09263-24030

$27.57

32

BEARING (30X35X12.8)

09263-30018

$28.45

33

BEARING (30X62X23.8)

09267-30011

$181.72

34

CIRCLIP

09380-30009

$3.15

35

CIRCLIP

09380-30009

$3.15

36

CIRCLIP

09380-30009

$3.15

37

SHIM (30X40X1)

09181-30167

$4.00

38

PIN (6X10)

09261-06003

$1.49

39

SEAL,OIL (42X62X7)

09283-42018

$32.83

40

RETAINER,CL PUSH ROD OIL SEAL

24741-25L00

$11.78

41

RETAINER,CNTR SHAFT BEARING,R

24751-18H00

Unavailable

42

RETAINER,COUNTER SHAFT BRG,L

24751-25L00

$6.00

43

SCREW (6X12)

09126-06011

$2.01

44

SCREW (6X13)

09139-06153

$2.61

45

SCREW (6X20)

09139-06159

$4.45

46

SPROCKET,ENGINE (NT:17)

27511-20A21

$53.97

47

CHAIN ASSY,DRIVE

27600-17K00-126

$353.85

48

.JOINT SET (DID525HV3)

27620-17K00

$19.57

49

NUT

09159-20004

$14.15

50

SHIM (25X40X1.5)

09181-25268

$2.90
