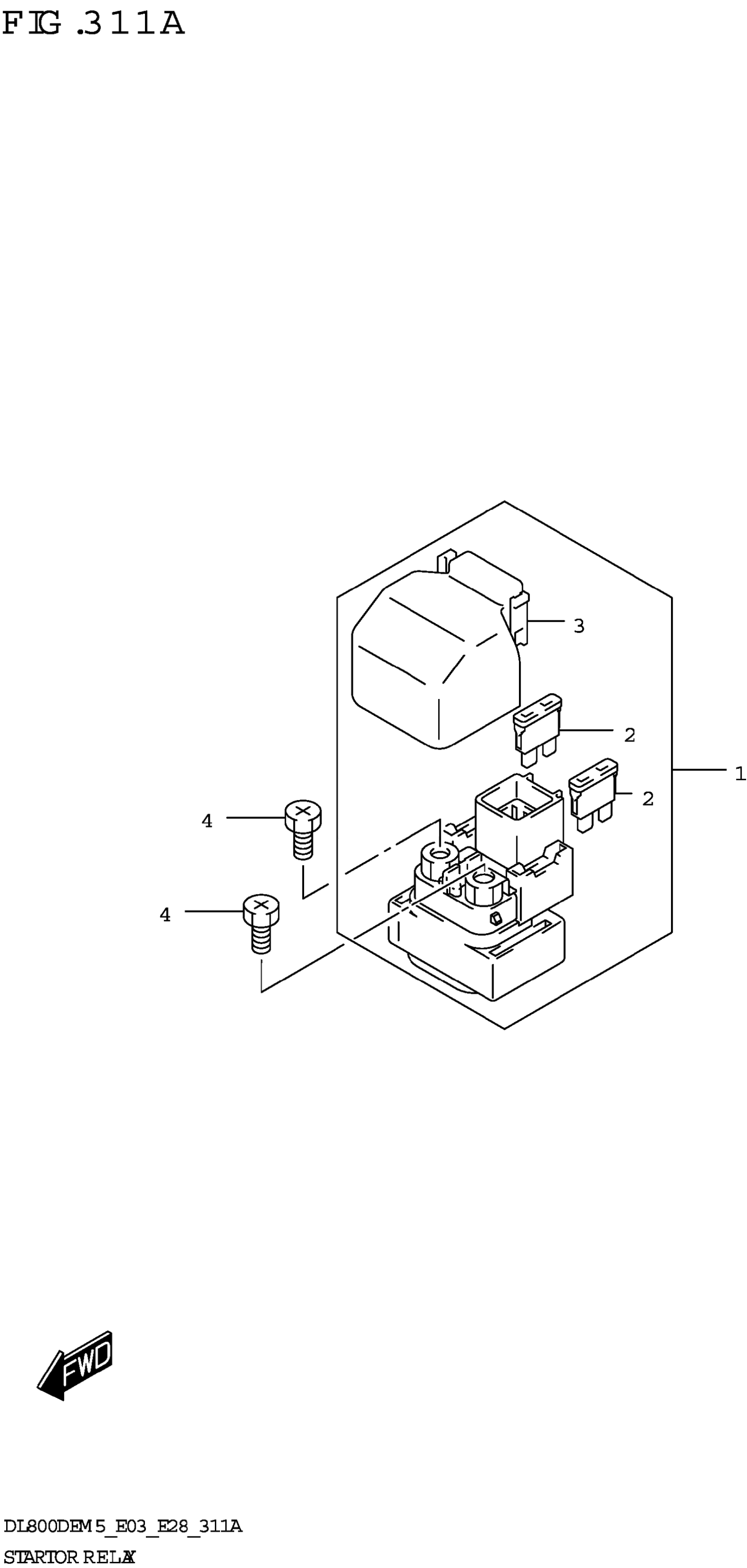

Find the part on the Startor Relay diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Startor Relay Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR | FROM 202311 This part replaces 31800-38G00.

31800-38G10

1
Out of stock

2

.FUSE (30A) | FROM 202311

09481-30501

2
Out of stock

3

.COVER | FROM 202311

31861-38G00

1
Out of stock

4

SCREW (6X8) | FROM 202311

09128-06013

2
Out of stock
