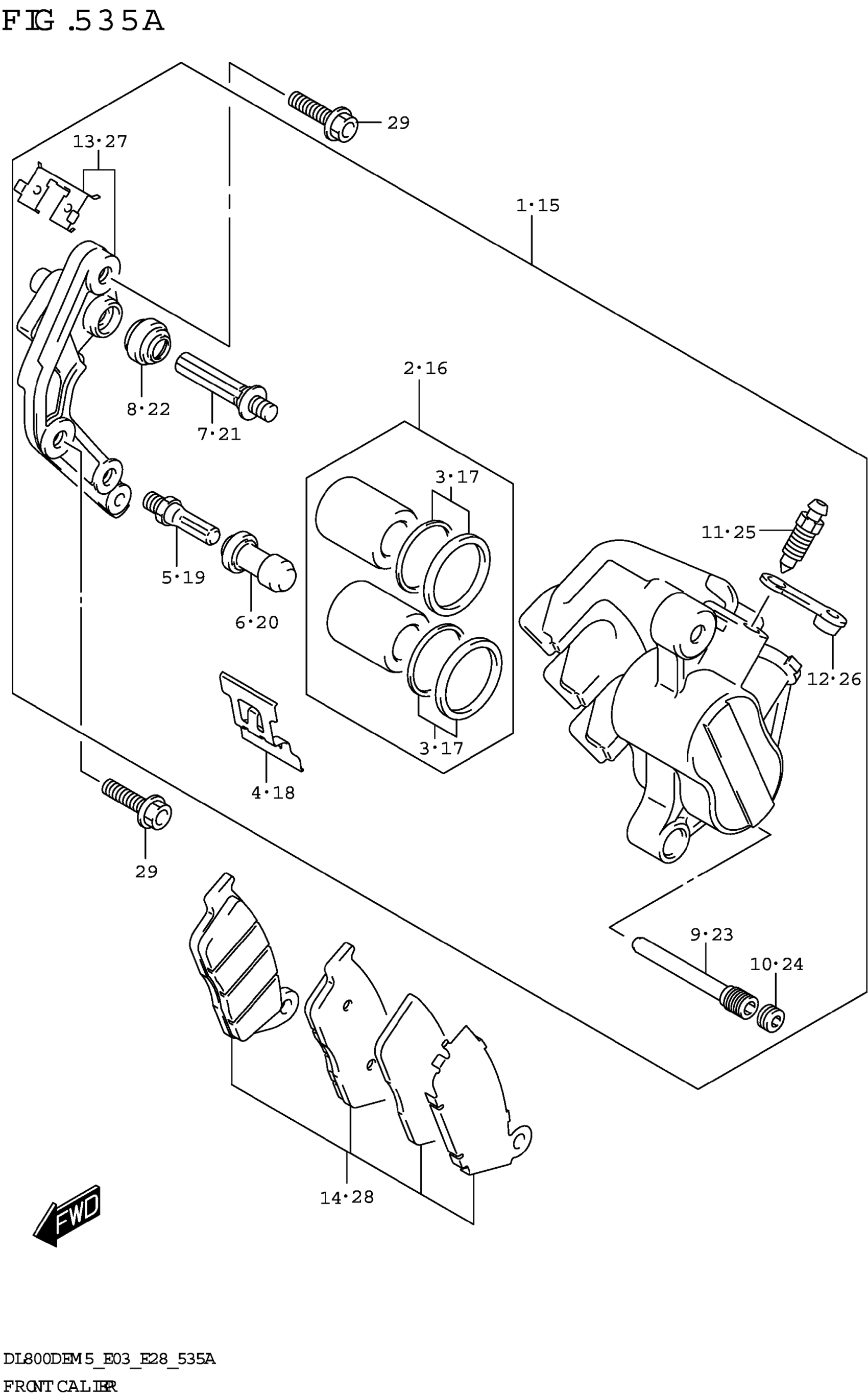

Find the part on the Front Caliper diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR,R

59100-26J20-999

1
Out of stock

2

.PISTON SET

59300-21810

1
Out of stock

3

..SEAL SET,PISTON

59300-21860

1

$26.75

In stock

4

.SPRING,PAD

59115-21E10

1
Out of stock

5

.PIN

59382-14500

1

$9.18

In stock

6

.BOOT

59386-13A00

1
Out of stock

7

.PIN

59187-21E10

1
Out of stock

8

.BOOT

59303-14500

1
Out of stock

9

.PIN,HANGER

59145-21E10

1
Out of stock

10

.PIN PLUG

59146-08J00

1
Out of stock

11

.BLEEDER

59121-01A00

1
Out of stock

12

.CAP,BLEEDER

59122-46H00

1
Out of stock

13

.BRACKET,R

59151-21E10

1
Out of stock

14

PAD SET (R)

59101-26830

1
Out of stock

15

CALIPER ASSY,FR,L

59300-26J20-999

1
Out of stock

16

.PISTON SET

59300-21810

1
Out of stock

17

..SEAL SET,PISTON

59300-21860

1

$26.75

In stock

18

.SPRING,PAD

59115-21E10

1
Out of stock

19

.PIN

59382-14500

1

$9.18

In stock

20

.BOOT

59386-13A00

1
Out of stock

21

.PIN

59187-21E10

1
Out of stock

22

.BOOT

59303-14500

1
Out of stock

23

.PIN,HANGER

59145-21E10

1
Out of stock

24

.PIN PLUG

59146-08J00

1
Out of stock

25

.BLEEDER

59121-01A00

1
Out of stock

26

.CAP,BLEEDER

59122-46H00

1
Out of stock

27

.BRACKET,L

59351-21E10

1
Out of stock

28

PAD SET (L)

59101-26840

1
Out of stock

29

BOLT

01550-0830A

4
Out of stock
