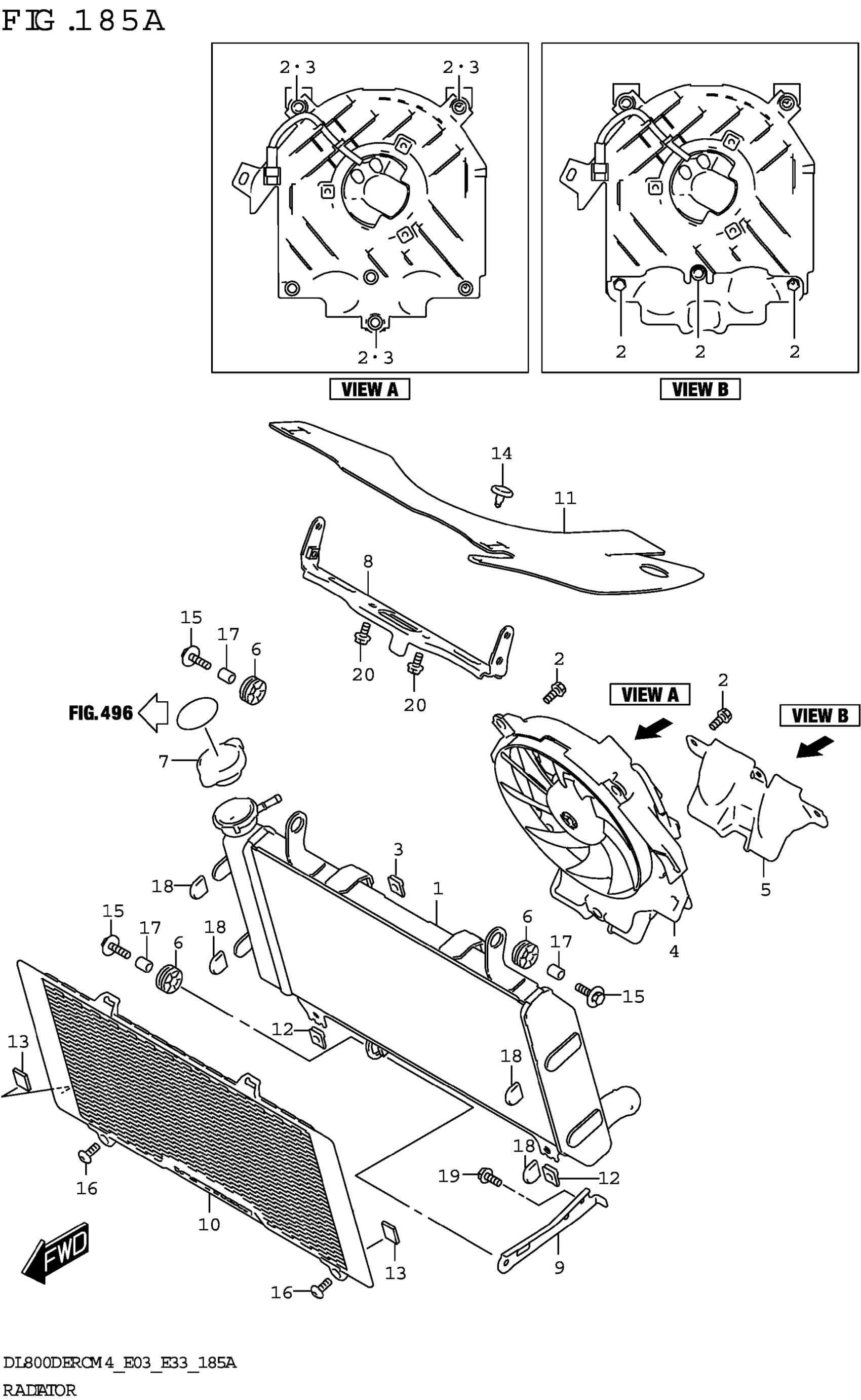

Suzuki DL800DERCM4 (2024) RADIATOR Diagram

#

Description
Price

1

RADIATOR COMP

17700-25LA0

$543.72

2

BOLT,FAN ASSY

17711-14G00

$4.62

3

NUT,RADIATOR FAN

17802-14F00

$3.18

4

SHROUD FAN ASSY

17810-25L00

$226.73

5

PLATE

17812-25L00

$20.78

6

CUSHION

09320-10051

$2.81

7

CAP,RADIATOR (1.1)

17730-14G00

$39.21

8

BRACKET,RADIATOR UPPER

17740-25LA0

$28.03

9

BRACKET,RADIATOR LOWER

17750-25LA0

$11.38

10

GUARD,RADIATOR

17760-25L00

$53.55

11

SHIELD,RADIATOR HEAT

17771-25L00

$27.37

12

NUT

17802-12K00

$5.98

13

CUSHION, FRAME COVER FR RR

47122-28K00

$6.47

14

CLIP

94479-35F00

$5.14

15

BOLT (6X25)

09118-06097

$2.50

16

SCREW (6X16)

09139-06214

$2.62

17

SPACER (6.5X10X12)

09180-06290

$2.01

18

CUSHION

09329-18001

$1.89

19

BOLT

01550-0616A

$1.97

20

SCREW

02162-0612A

$1.93
