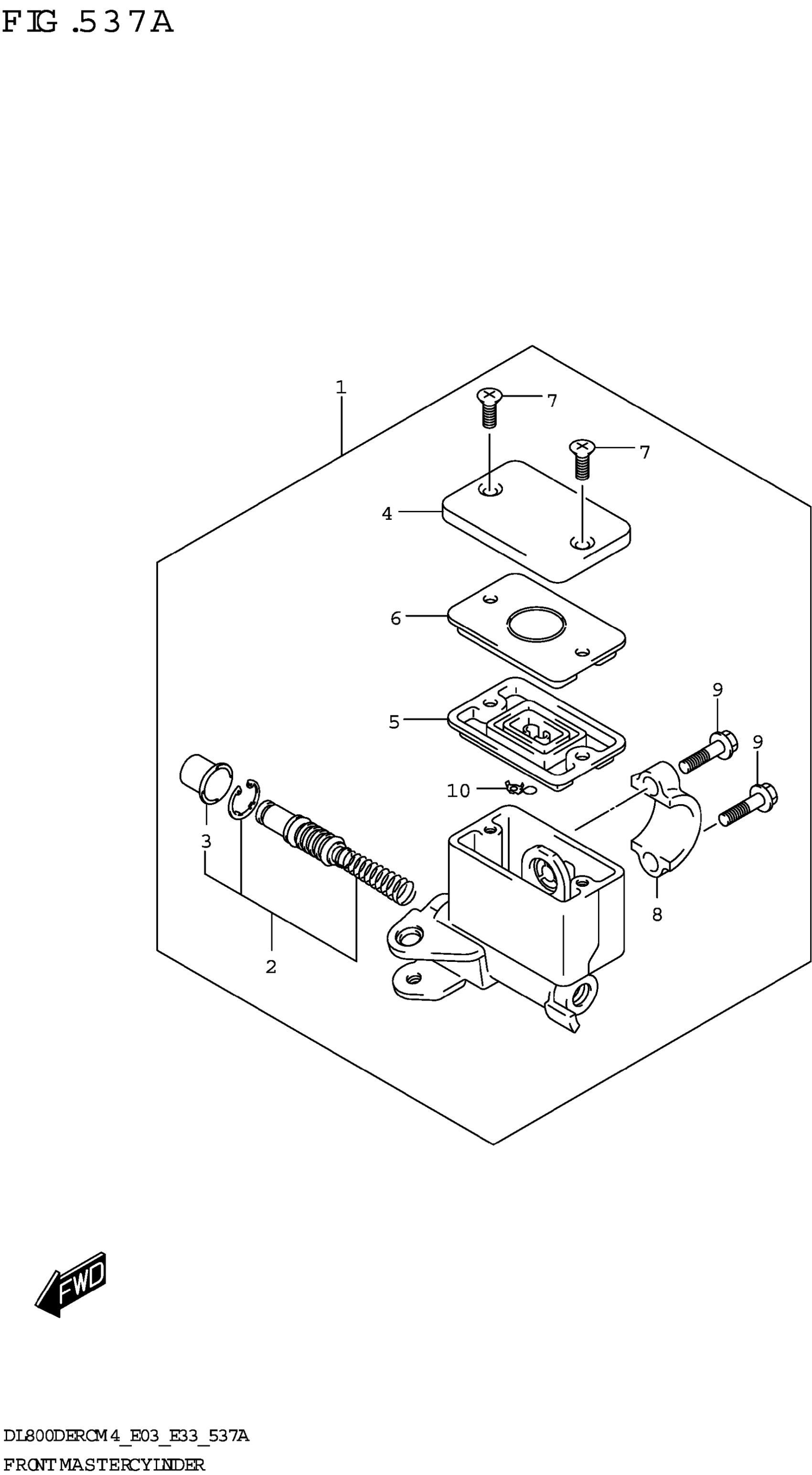

Suzuki DL800DERCM4 (2024) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FR MASTER

59600-13G10

$237.52

2

.PISTON/CUP SET

59600-04810

$43.23

3

..BOOT

59666-44300

$5.54

4

.CAP

59669-10G20

$64.72

5

.DIAPHRAGM

59667-49460

$9.36

6

.PLATE,DIAPHRAGM

59668-41C00

$8.92

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-32F00

$18.68

9

.BOLT (6X22)

59675-02FA0

$3.66

10

.PROTECTOR

59664-32F00

$13.20
