2023 Suzuki DL800DERCM3 Wiring Harness Diagram

← All diagrams

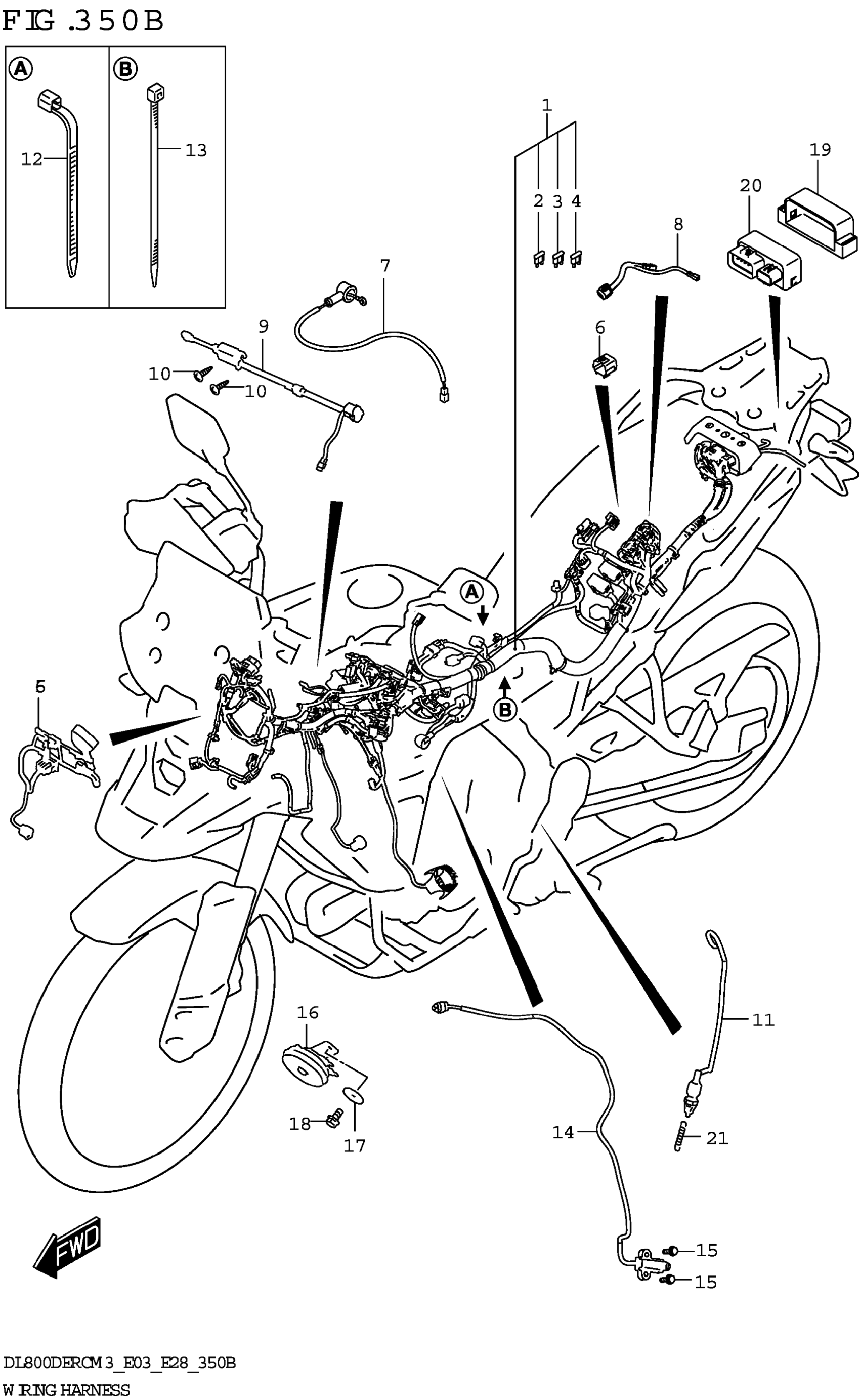

Find the part on the Wiring Harness diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DL800DERCM3 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING NO.1

36610-25LB0

1

$854.83

In stock

2

.FUSE (10A)

09481-10501

7
Out of stock

3

.FUSE (15A)

09481-15501

4
Out of stock

4

.FUSE (20A)

09481-20501

2
Out of stock

5

HARNESS,WIRING NO.2

36620-25LA0

1

$162.72

In stock

6

CAP,OBD CONNECTOR

36654-28K00

1
Out of stock

7

WIRE,OIL PRESSURE SW LEAD

36851-25L00

1
Out of stock

8

1

$22.42

In stock

9

SOCKET,USB

39105-25L00

1

$70.85

In stock

10

SCREW

03541-0412A

2

$1.47

In stock

11

SWITCH ASSY,STOP LAMP

37740-25L00

1

$13.62

In stock

12

CLAMP (L:95)

09407-10403

2
Out of stock

13

CLAMP (L:145)

09407-14407

1
Out of stock

14

SWITCH ASSY,SIDE STAND

37840-25L00

1
Out of stock

15

BOLT

01550-0620B

2
Out of stock

16

HORN ASSY

38500-48H31

1

$20.30

In stock

17

WASHER (8.5X30X2.3)

09160-08159

1

$2.67

In stock

18

BOLT

01550-0816B

1
Out of stock

19

HOLDER,RELAY

36744-06L00

1
Out of stock

20

RELAY ASSY

38860-06L00

1
Out of stock

21

SPRING

09443-06054

1

$4.18

In stock
