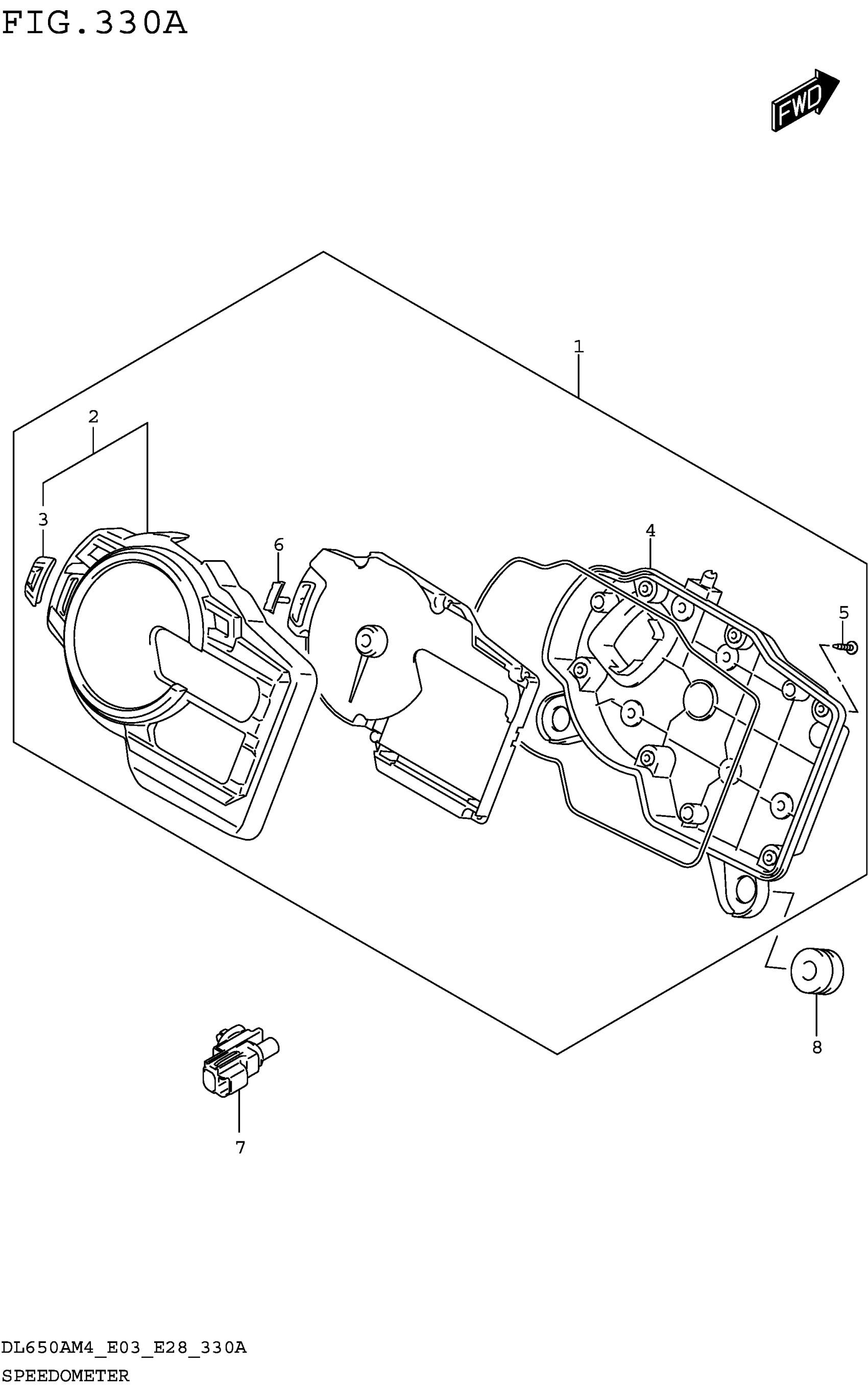

Suzuki DL650AM4 (2024) SPEEDOMETER (DL650AM4 E03) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-28K10

$1,039.88

2

.CASE, UPPER

34150-28K00

$194.23

3

..RUBBER SWITCH

34126-31J00

$36.17

4

.CASE, LOWER

34152-28K00

$74.00

5

.SCREW (3X12)

34183-29F00

$3.62

6

.KNOB

34124-31J00

Unavailable

7

SENSOR,AIR TEMP

95643-58J00

$57.00

8

CUSHION,SPEEDOMETER

34189-08J01

$3.38

9

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.330B(1-D-14) SPEEDOMETER (DL650AM4 E28) FIG.330C(1-E-2 ) SPEEDOMETER (DL650AM4 E33) FIG.330D(1-E-3 ) SPEEDOMETER (DL650XAM4 E03) FIG.330E(1-E-4 ) SPEEDOMETER (DL650XAM4 E28) FIG.330F(1-E-5 ) SPEEDOMETER (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
