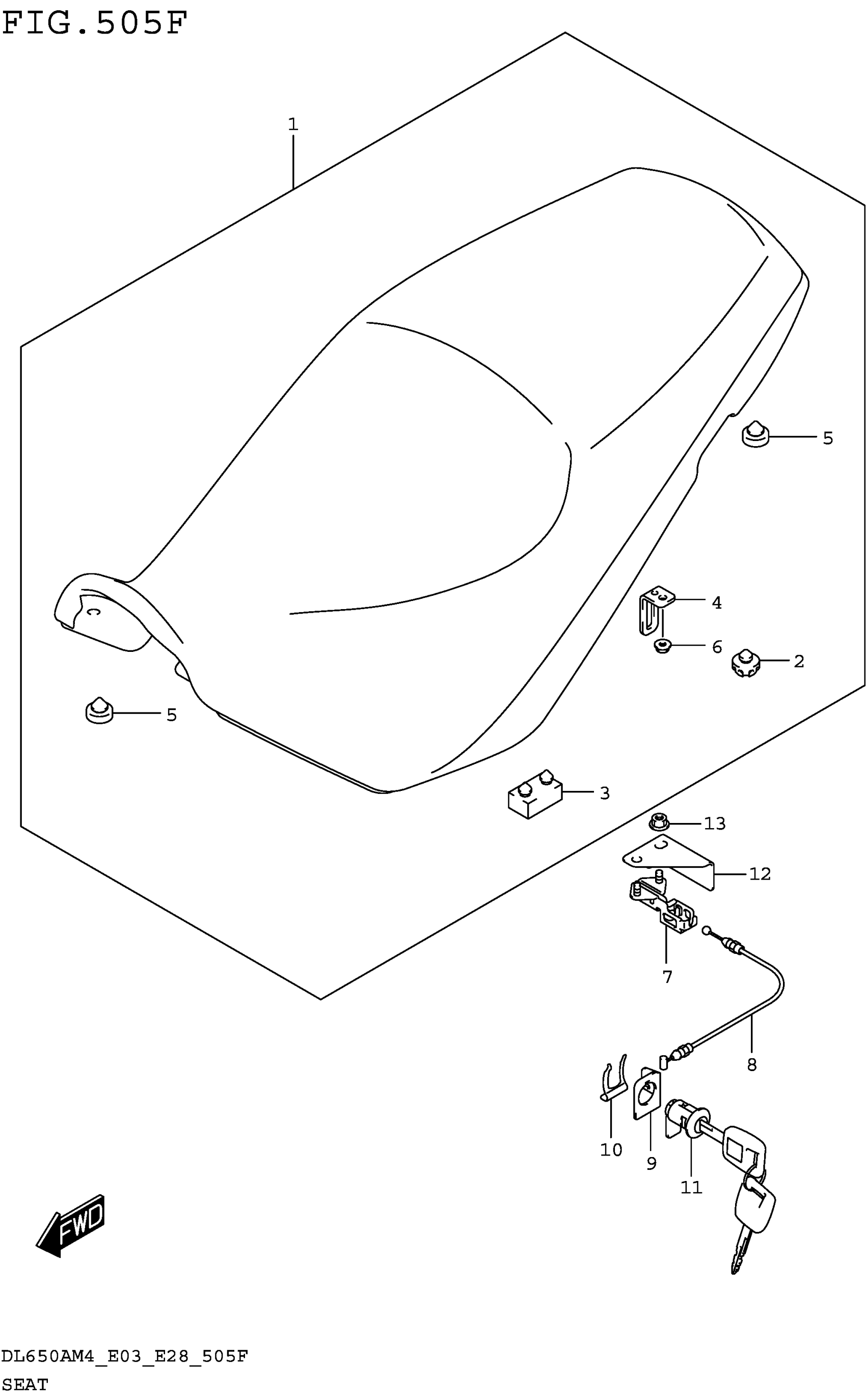

Suzuki DL650AM4 (2024) SEAT (DL650XAM4 E33) Diagram

#

Description
Price

1-1

SEAT ASSY | FOR YVB

45100-28K01-BGP

$460.00

1-2

SEAT ASSY | FOR JWN,YU1

45100-28K01-CQM

$233.12

2

.CUSHION

45148-20G90

$6.28

3

.CUSHION

09321-08006

$2.80

4

.STRIKER,SEAT LOCK

45212-18K00

$10.88

5

.CUSHION

45148-28K00

$6.95

6

NUT (6X12)

08316-1006A

$2.19

7

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

8

CABLE, SEAT LOCK

45280-28K00

$20.00

9

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

10

PLATE, SEAT LOCK ASSY

45289-28K00

$6.75

11

LOCK SET,SEAT

95700-14810

$98.21

12

GUARD, SEAT LOCK

45288-28K00

$14.63

13

NUT (6X12)

08316-1006A

$2.19
