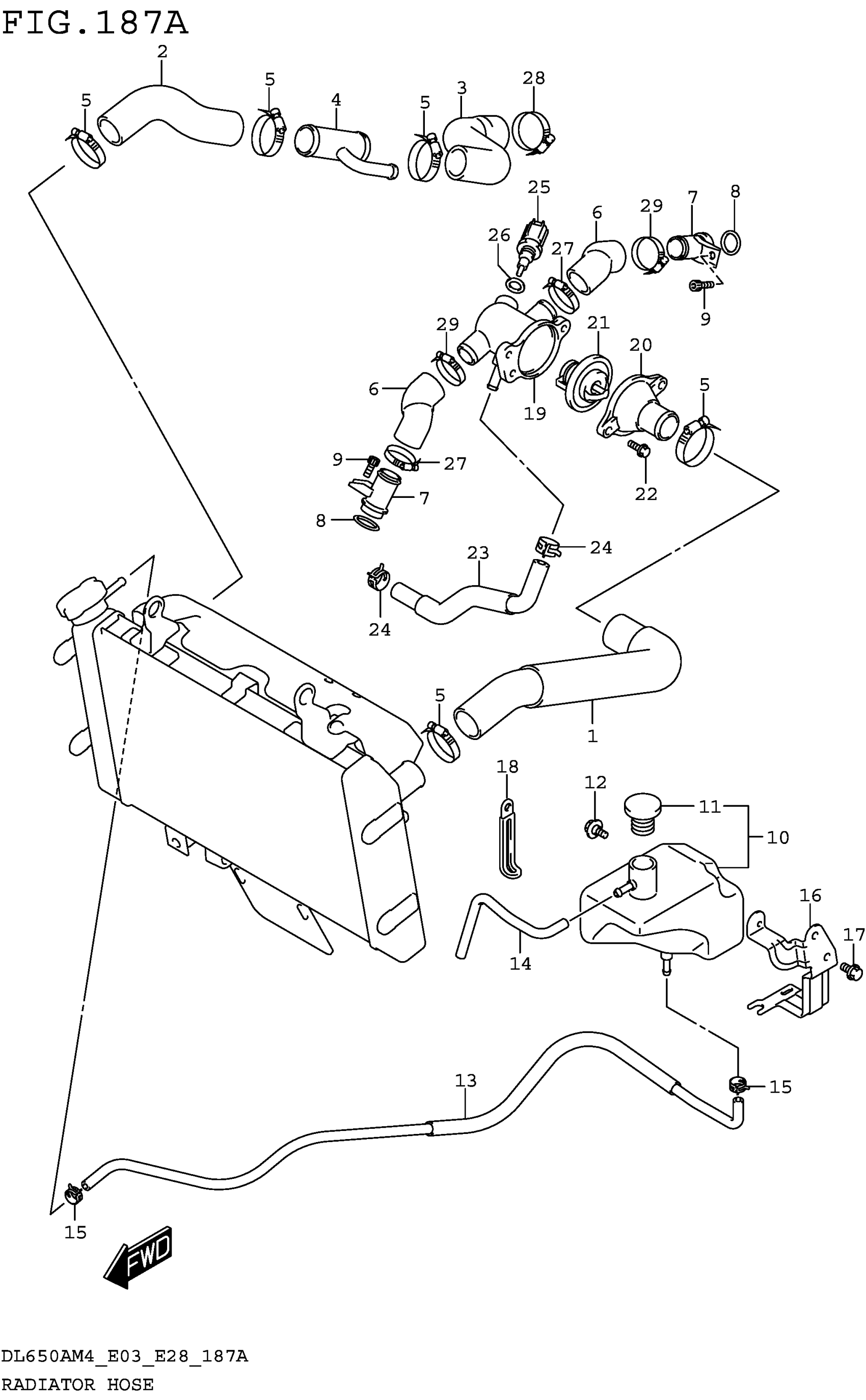

Suzuki DL650AM4 (2024) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-11J00

$69.27

2

HOSE, RADIATOR OUTLET NO.1

17852-44H20

$22.08

3

HOSE, RADIATOR OUTLET NO.2

17854-44H00

$21.47

4

UNION, WATER HOSE THREE WAY

17880-44H00

$46.00

5

CLAMP

09401-29001

$2.80

6

HOSE,CONNECTOR INLET

17853-19F00

$14.11

7

UNION,CONNECTOR HOSE

17890-06G20

$14.20

8

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.42

9

BOLT

07130-0612A

$2.58

10

TANK ASSY, RESERVOIR

17910-27G10

Unavailable

11

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

12

BOLT (6X12)

09111-06085

$4.28

13

HOSE SET, RESERVOIR TANK INLE

17900-27810

$24.83

14

HOSE, RESERVOIR TANK OVFL

17982-15H00

Unavailable

15

CLIP (ID:8.6)

09401-08411

$1.82

16

BRACKET, RESERVOIR TANK

17920-27G10

Unavailable

17

BOLT

01550-0610A

$2.01

18

CLAMP (L:45)

09404-06429

$1.88

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

$33.12

21

THERMOSTAT,WATER

17670-06G61

$24.64

22

BOLT

01547-0616A

$2.09

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$23.30

24

CLIP

09401-12414

$3.09

25

SENSOR,TEMP

13650-49X00

$86.27

26

GASKET (12X17X1)

09168-12017

$2.01

27

CLAMP

09401-24002

$4.55

28

CLIP

09401-30003

$5.15

29

CLAMP

09401-25001

$4.15
