2024 Suzuki DL650AM4 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2024 Suzuki DL650AM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

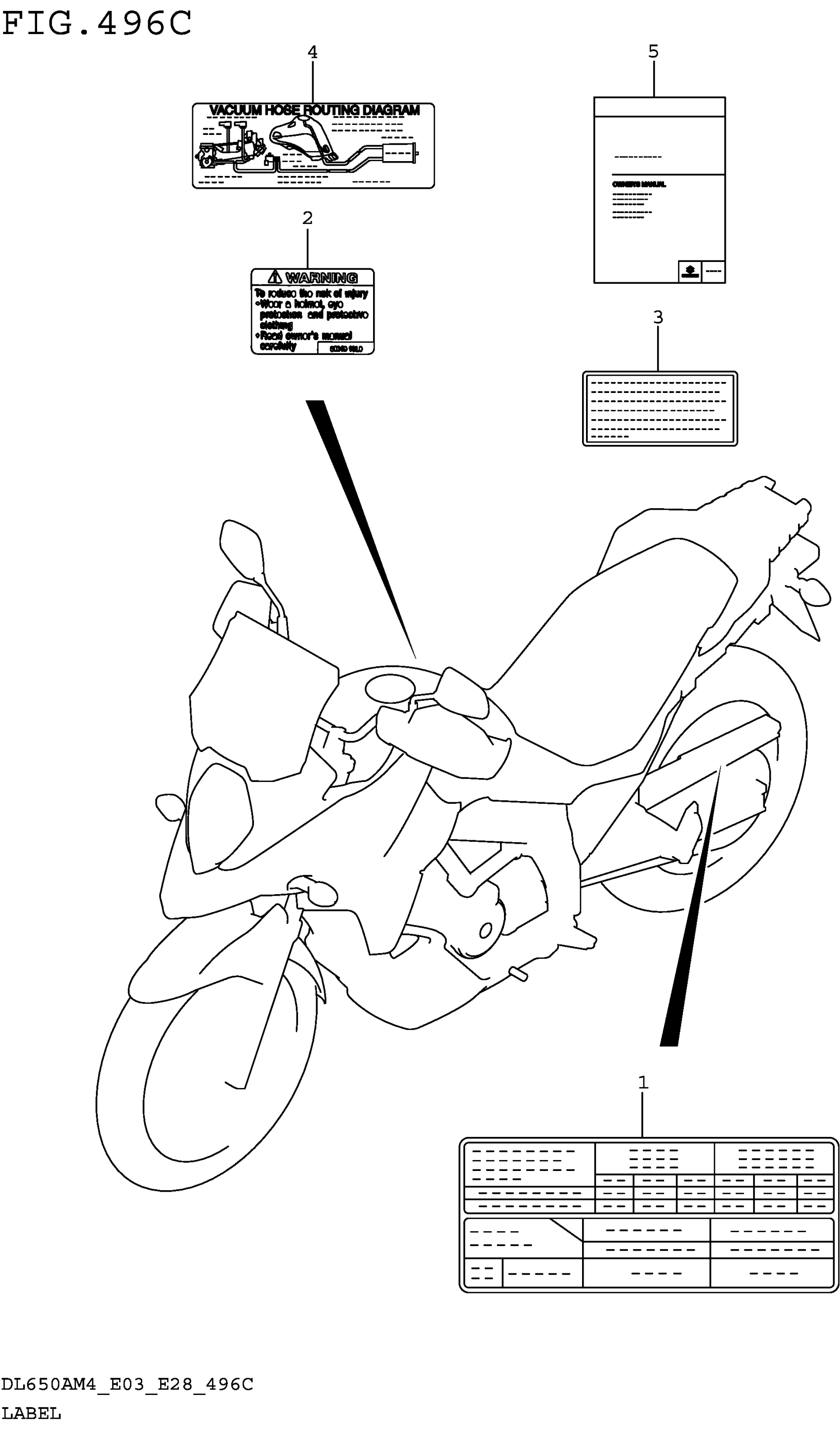

2024 Suzuki DL650AM4 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, TIRE INFORMATION

68332-28K11

1
Out of stock

2

LABEL,GENERAL WARNING

68319-10L00

1
Out of stock

3

LABEL,MANUAL NOTICE

68353-26E03

1
Out of stock

4

LABEL, VACUUM HOSE ROUTING

68387-28K00

1
Out of stock

5

MANUAL, OWNER'S

99011-28K57-03A

1
Out of stock
← Label Label →
