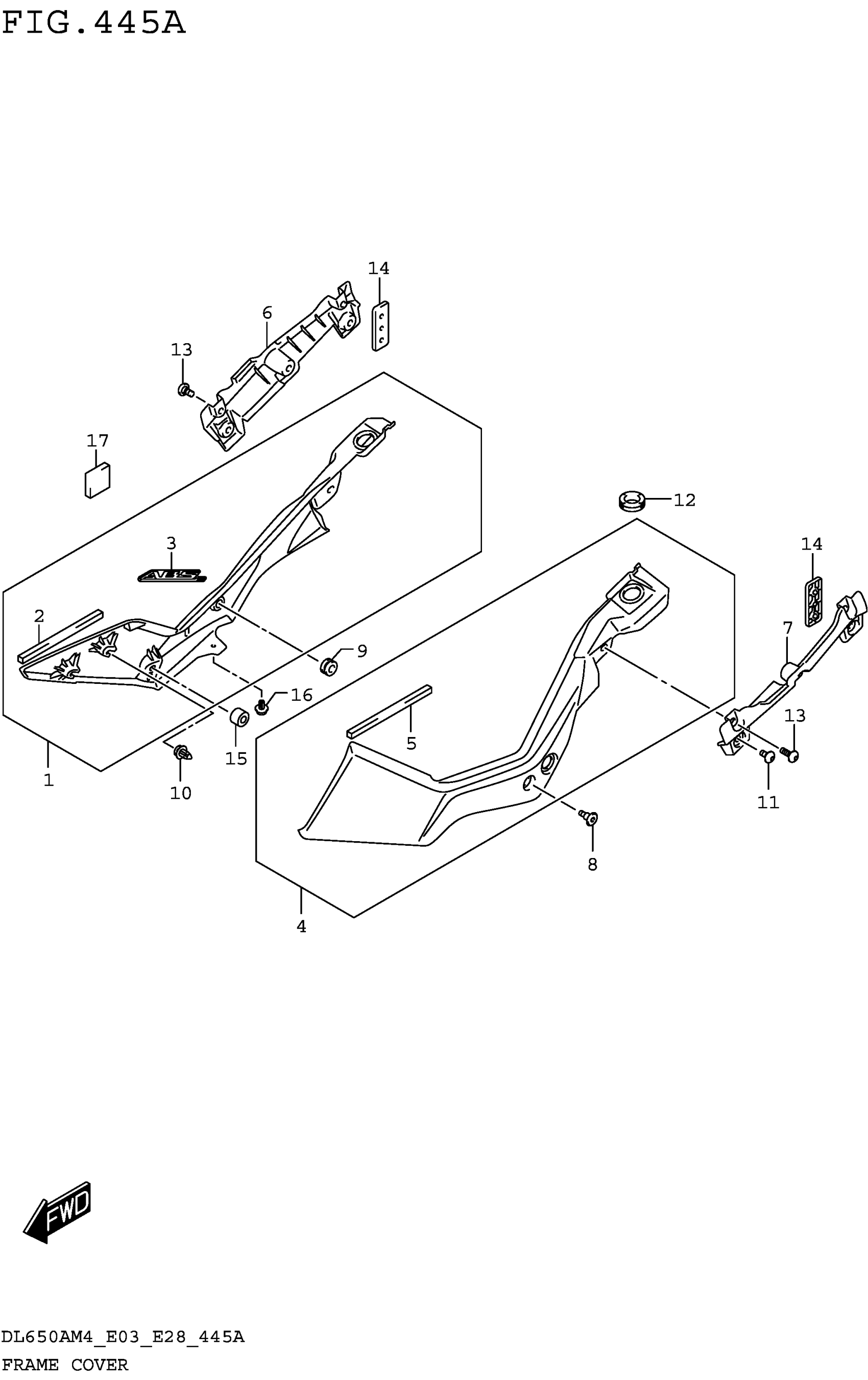

Suzuki DL650AM4 (2024) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH

47110-28K01-GWM

$156.82

2

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

3

.EMBLEM, ABS

68131-28K00-GWM

Unavailable

4

COVER, FRAME LH

47210-28K00

$104.92

5

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

6

COVER, FRAME REAR RH

47411-31J10

$15.11

7

COVER, FRAME REAR LH

47511-31J10

$20.37

8

SCREW (6X20)

09139-06211

$3.27

9

CUSHION (9X18X9.5)

09320-09016

$2.01

10

CLIP

09409-10313

$2.06

11

SCREW (6X12)

47913-31J00

$2.26

12

CUSHION (20X32X9)

09320-20011

$3.38

13

SCREW (6X16)

09139-06120

$2.80

14

SPACER,FRAME COVER

47510-28K00

$20.00

15

CUSHION

09321-10001

$2.69

16

CLIP

09409-06328

$3.00

17

CUSHION, FRAME COVER

47123-28K00

Unavailable
