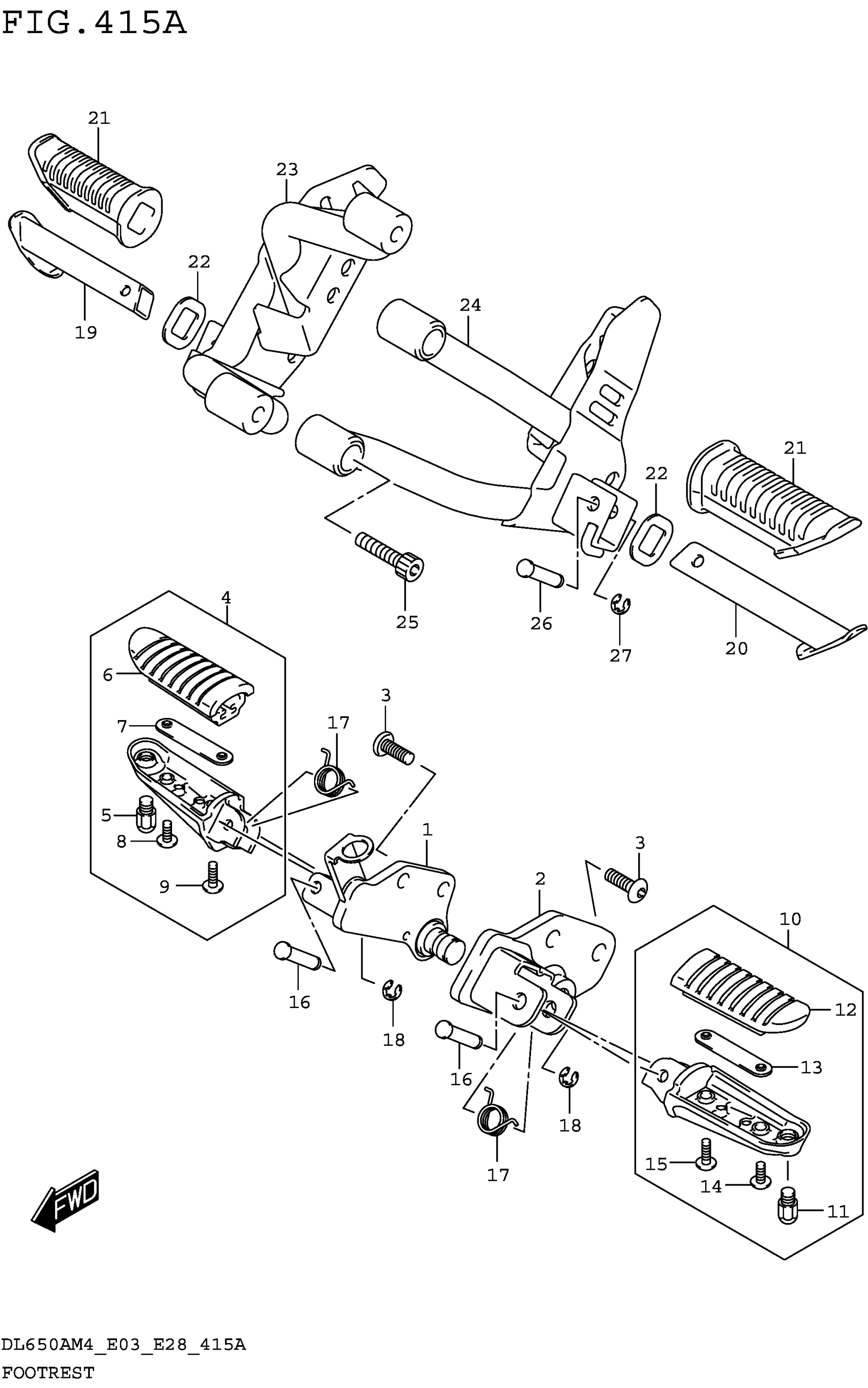

Suzuki DL650AM4 (2024) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH | (BLACK)

43510-11J00-YAP

$92.55

2

BRACKET, FR FOOTREST LH | (BLACK)

43520-11J00-YAP

$72.77

3

BOLT (8X23)

09106-08150

$3.22

4

FOOTREST ASSY RH

43501-06G01

$133.57

5

.BOLT,BANK SENSOR

43576-07D01

$8.46

6

.RUBBER,FOOTREST

43551-06G00

$13.79

7

.PLATE,FR FOOTREST RUBBER

43552-06G00

$14.47

8

.SCREW | OUTER

02142-0516B

$2.01

9

SCREW | INNER

02142-0520B

$1.82

10

FOOTREST ASSY, LH

43502-06G01

$133.57

11

.BOLT,BANK SENSOR

43576-07D01

$8.46

12

.RUBBER,FOOTREST

43551-06G00

$13.79

13

.PLATE,FR FOOTREST RUBBER

43552-06G00

$14.47

14

.SCREW | OUTER

02142-0516B

$2.01

15

SCREW | INNER

02142-0520B

$1.82

16

PIN (8X33.2)

09208-08010

$2.80

17

SPRING

09448-18022

$3.53

18

E-RING

08332-1106B

$1.98

19

BAR, PILLION FOOTREST RH

43610-34A60

$73.87

20

BAR, PILLION FOOTREST LH

43710-34A60

$70.48

21

RUBBER, PILLION FOOTREST

43612-33G30

$8.03

22

WASHER,FOOTREST RUBBER

43631-34A01

$4.46

23

BRACKET, PILLION FTRST RH | (BLACK)

43810-28K00-YAP

$171.00

24

BRACKET, PILLION FTRST LH | (BLACK)

43820-28K00-YAP

$174.22

25

BOLT (8X40)

09106-08074

$3.65

26

PIN (6X29.5)

09208-06008

$2.80

27

E-RING

08332-1104A

$1.41
