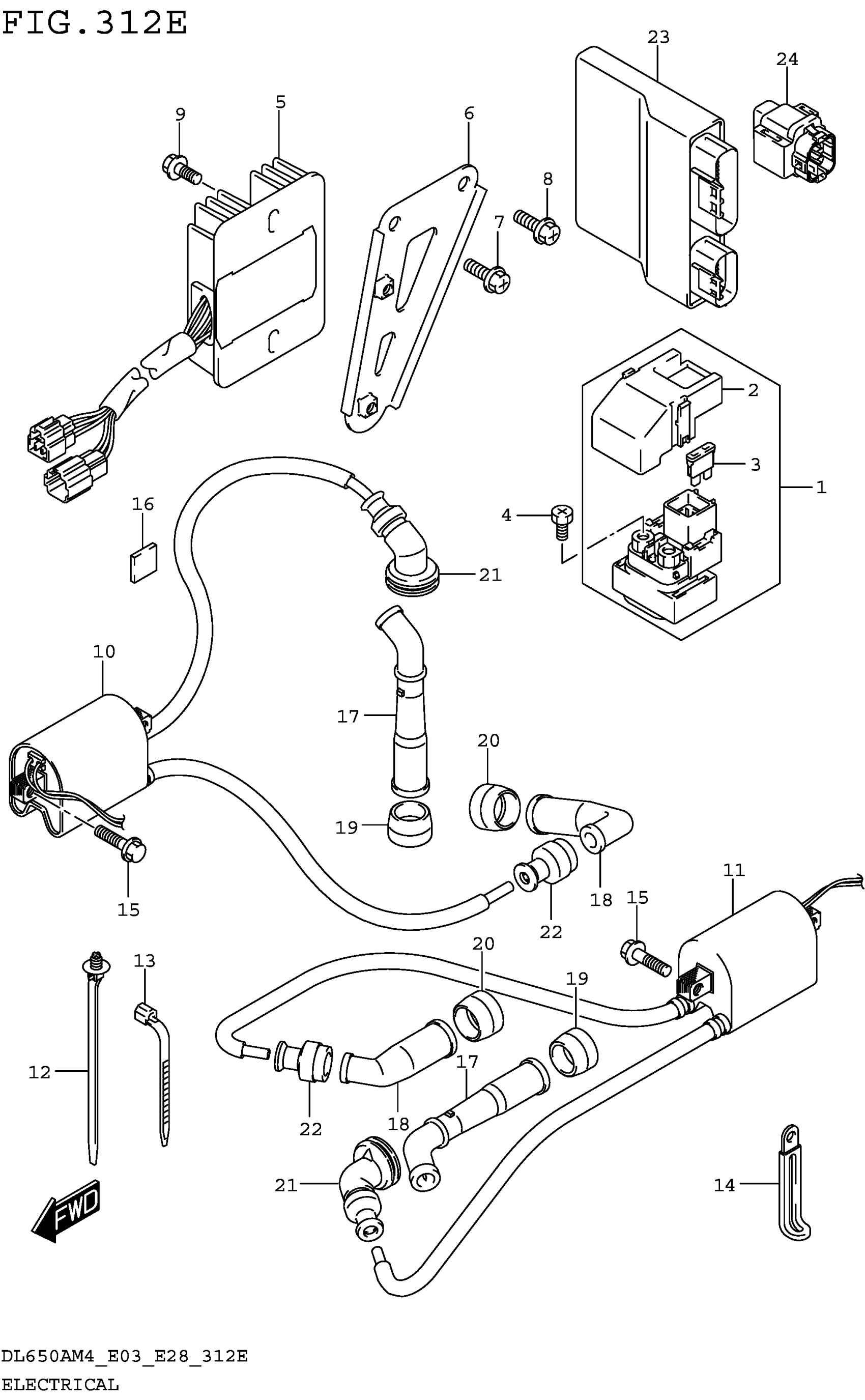

Suzuki DL650AM4 (2024) ELECTRICAL (DL650XAM4 E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-06G02

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-47H00

$240.89

6

BRACKET, RECT FTG

32830-11J00

Unavailable

7

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

8

SCREW

02162-0610A

Unavailable

9

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

10

COIL ASSY, IGNITION

33410-27G02

$141.55

11

COIL ASSY, IGNITION REAR

33420-27G03

$148.83

12

CLAMP (L:170)

09407-17403

$4.63

13

CLAMP (L:165)

09407-18402

$2.21

14

CLAMP (L:45)

09404-06429

$1.82

15

BOLT

01547-0625A

$2.01

16

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$7.95

17

CAP ASSY,SPARK PLUG | FOR CENTER

33510-17G00

$30.63

18

CAP ASSY,SPARK PLUG | FOR SIDE

33510-20E00

$39.05

19

SEAL,SPARK PLUG | FOR CENTER

33541-23E10

$6.17

20

SEAL,SPARK PLUG | FOR SIDE

33541-47D00

$7.16

21

SEAL,HIGH TENSION CORD CTR | FOR CENTER

33542-17G01

$9.17

22

SEAL,HIGH TENSION CORD (SIDE) | FOR SIDE

33542-38B00

$3.97

23

CONTROL UNIT, FI

32920-28K52

$1,397.77

24

SENSOR ASSY,FUEL CUT

33960-27G00

$124.02
