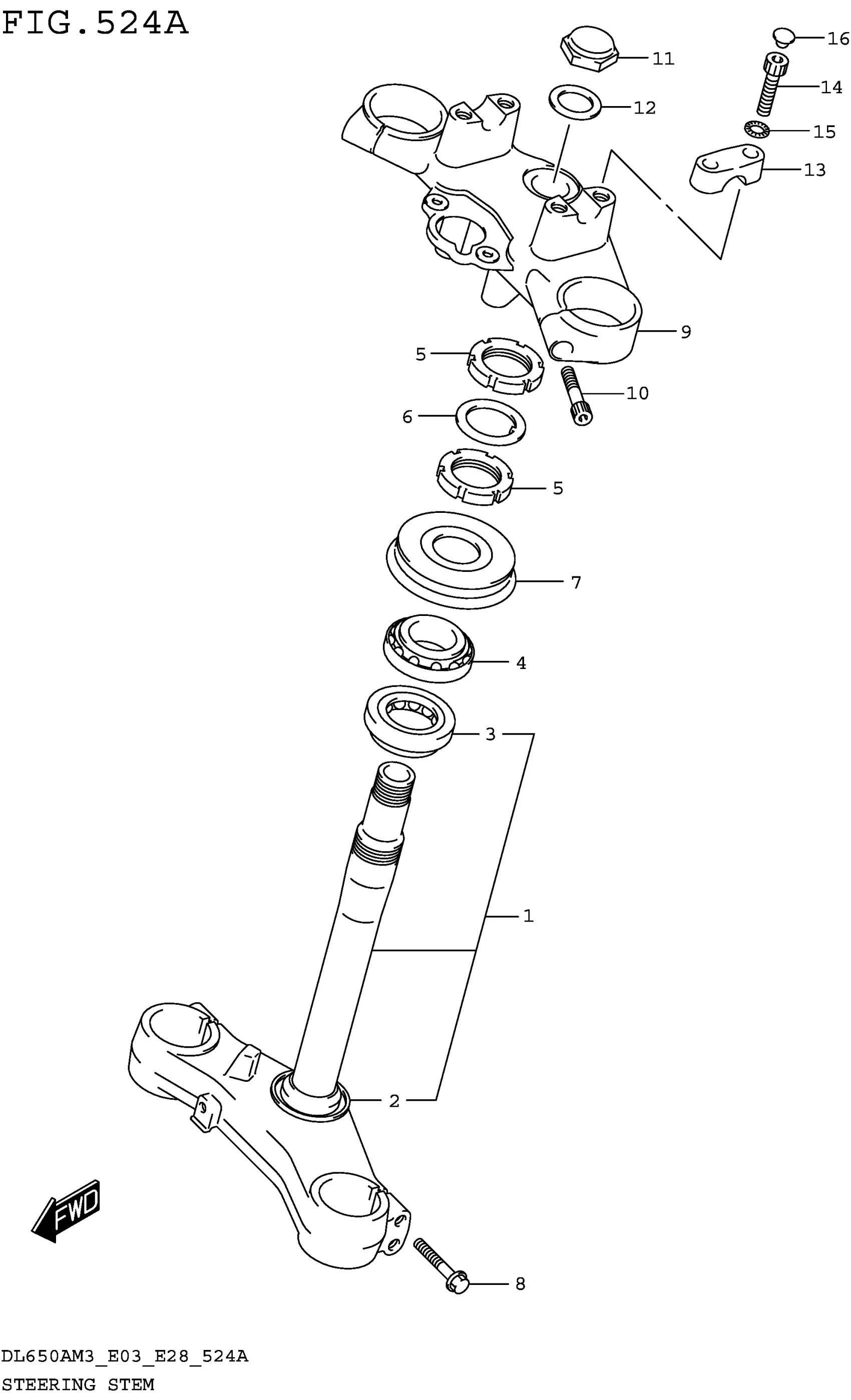

Suzuki DL650AM3 (2023) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-28K00

$758.05

2

.SEAL,STEERING LWR (30.1X56X4 | (30.1X56X4) LOWER

51644-12C00

$8.65

3

.BEARING (30X55X17)

09267-30010

$43.41

4

.BEARING (30X55X17)

09267-30010

$43.41

5

NUT,STEERING STEM

51631-33E00

$21.64

6

WASHER,STEERING STEM

51641-33E00

$5.67

7

SEAL, STEERING UPR DUST | UPPER

51643-33E00

$14.66

8

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.11

9

BRACKET, UPR | UPPER

51311-11J00-291

$361.72

10

BOLT

51166-38B40

$7.75

11

NUT

51353-27G00

$38.16

12

WASHER

51354-06G00

$13.30

13

HOLDER, HANDLE UPR | UPPER

56211-06G40-291

$52.03

14

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

15

WASHER

09164-08015

$2.90

16

CAP (OD:10.5)

09250-06015

$2.75
