Description

Price

1

STAND, PROP

42310-06G60

$196.80

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING | INNER

09443-14058

$5.17

5

SPRING | OUTER

09443-19011

$5.26

6

BRACKET, PROP STAND

42330-06G60

$134.32

7

BOLT (12X30)

09100-12084

$6.52

8

WASHER (12.5X24X2.6)

09160-12061

$2.35

9

PEDAL, BRAKE

43111-27G00

$160.53

10

WASHER (18X24X1.0)

09160-18022

$2.80

11

SPRING

09448-41005

$3.95

12

CIRCLIP

08331-3118A

$2.30

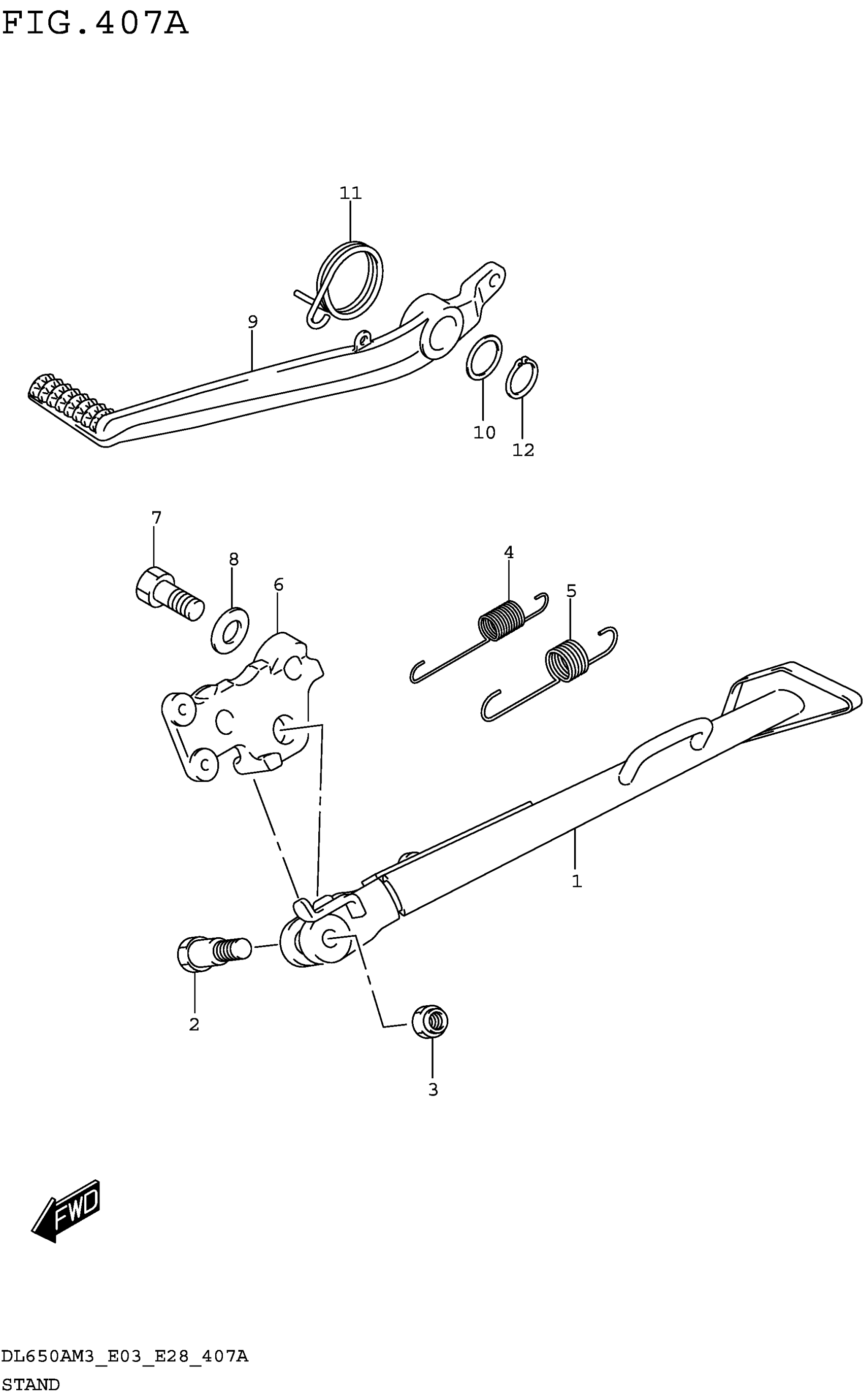

Suzuki DL650AM3 (2023) STAND Diagram
