2023 Suzuki DL650AM3 Optional Diagram

← All diagrams

Find the part on the Optional diagram for your 2023 Suzuki DL650AM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

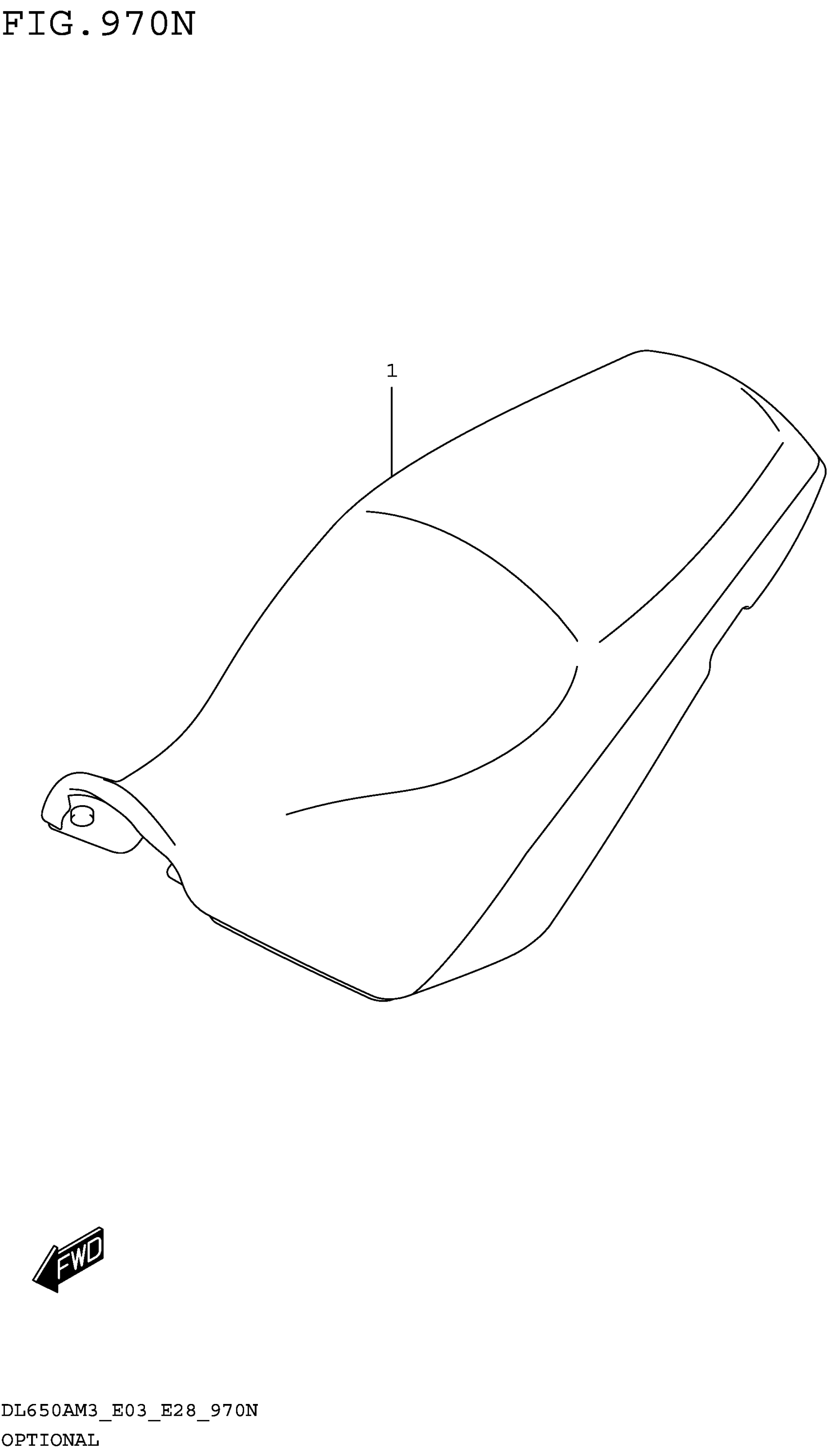

2023 Suzuki DL650AM3 Optional Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DL650L7 LOW SEA This part replaces 45100-28K51-BGP.

45100-28K52-BGP

1
Out of stock
