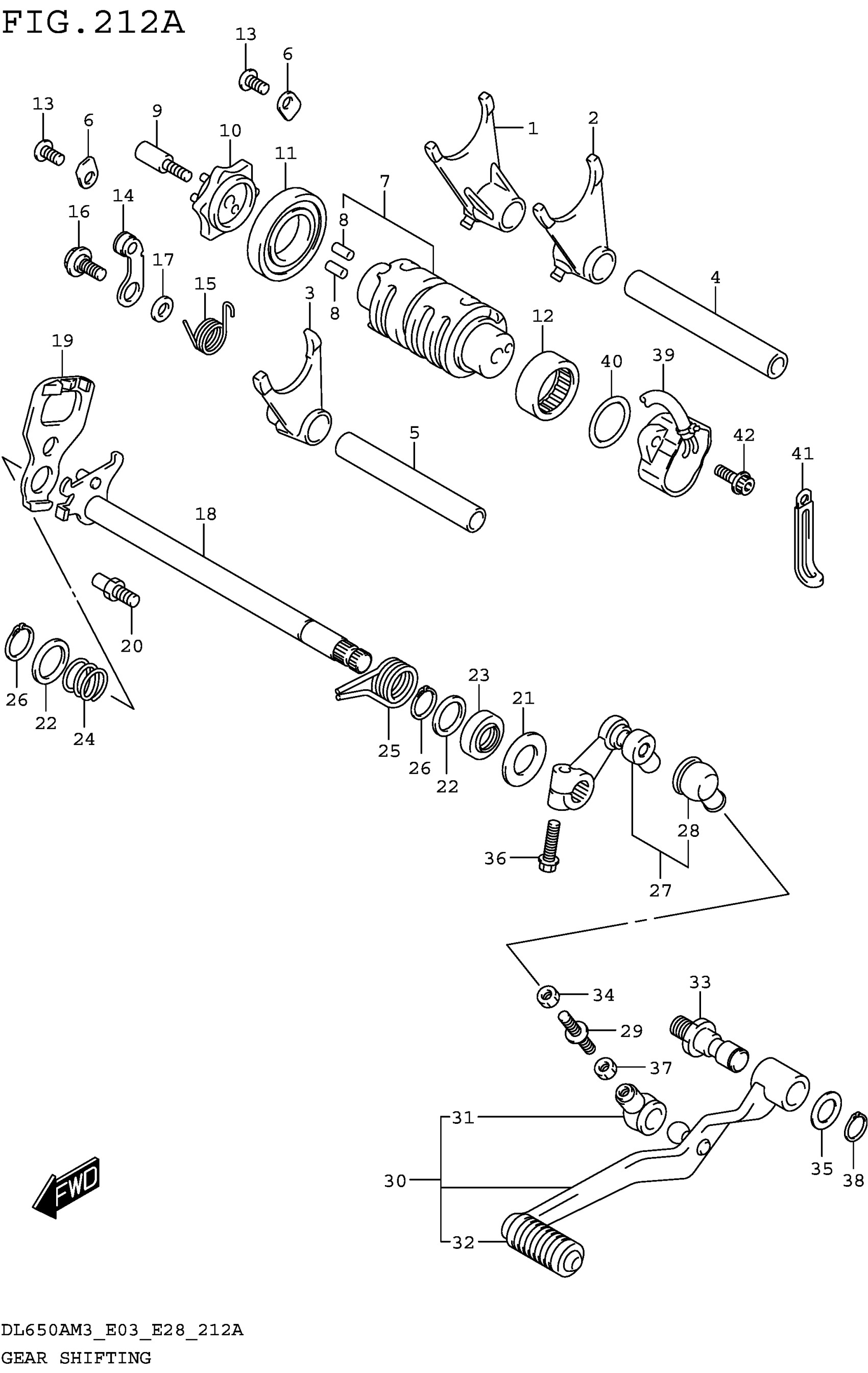

Suzuki DL650AM3 (2023) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-42E20

Unavailable

2

FORK,GEAR SHIFT NO.2

25221-42E20

Unavailable

3

FORK,GEAR SHIFT NO.3

25231-42E20

Unavailable

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$35.78

6

RETAINER

24741-21A00

$2.80

7

CAM,GEAR SHIFT

25310-19F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.10

9

BOLT,GEAR SHIFT CAM PLATE

25312-42F01

$7.28

10

PLATE,GEAR SHIFT CAM

25381-19F20

$65.20

11

BEARING (25X47X8)

09262-25006

$23.05

12

BEARING (25X32X12)

09263-25018

$19.30

13

SCREW

02112-0612A

$1.43

14

STOPPER, SHIFT CAM

25350-35F00

$19.62

15

SPRING,SHIFT

25355-35F01

$3.73

16

BOLT (6X14.3)

09111-06041

$2.63

17

WASHER

08211-06141

$1.61

18

SHAFT,GEAR SHIFT

25510-19F10

$131.02

19

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

20

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

21

WASHER (14X29X0.8)

09160-14016

$1.91

22

SHIM (14X22X1.0)

09181-14167

$2.55

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

24

SPRING

09440-17009

$1.73

25

SPRING,GEAR SHIFT SHAFT RETUR | RETURN

25518-06L00

$5.42

26

CIRCLIP

08331-3114A

$1.89

27

ARM, GEAR SHIFT LINK

25520-27G01

$50.33

28

.COVER, DUST

25526-47001

$4.98

29

ROD, GEAR SHIFT LINK

25525-27G00

$9.58

30

LEVER ASSY, GEAR SHIFT

25600-11J01

$62.17

31

.COVER, DUST

25526-47001

$4.98

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

33

SHAFT,GEAR SHIFT LEVER

25617-03F10

$11.29

34

.NUT

08310-00067

$1.83

35

WASHER (12.5X20X1.0)

09160-12011

$1.48

36

BOLT

01547-0620A

$2.01

37

NUT

09140-06025

$1.84

38

CIRCLIP

08331-3112A

$1.77

39

SENSOR ASSY,GEAR POSITION This part replaces 37730-44H10.

37730-44H11

$140.58

40

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

41

CLAMP (L:80)

09404-08422

$2.88

42

BOLT (5X16)

09106-05023

$2.80
