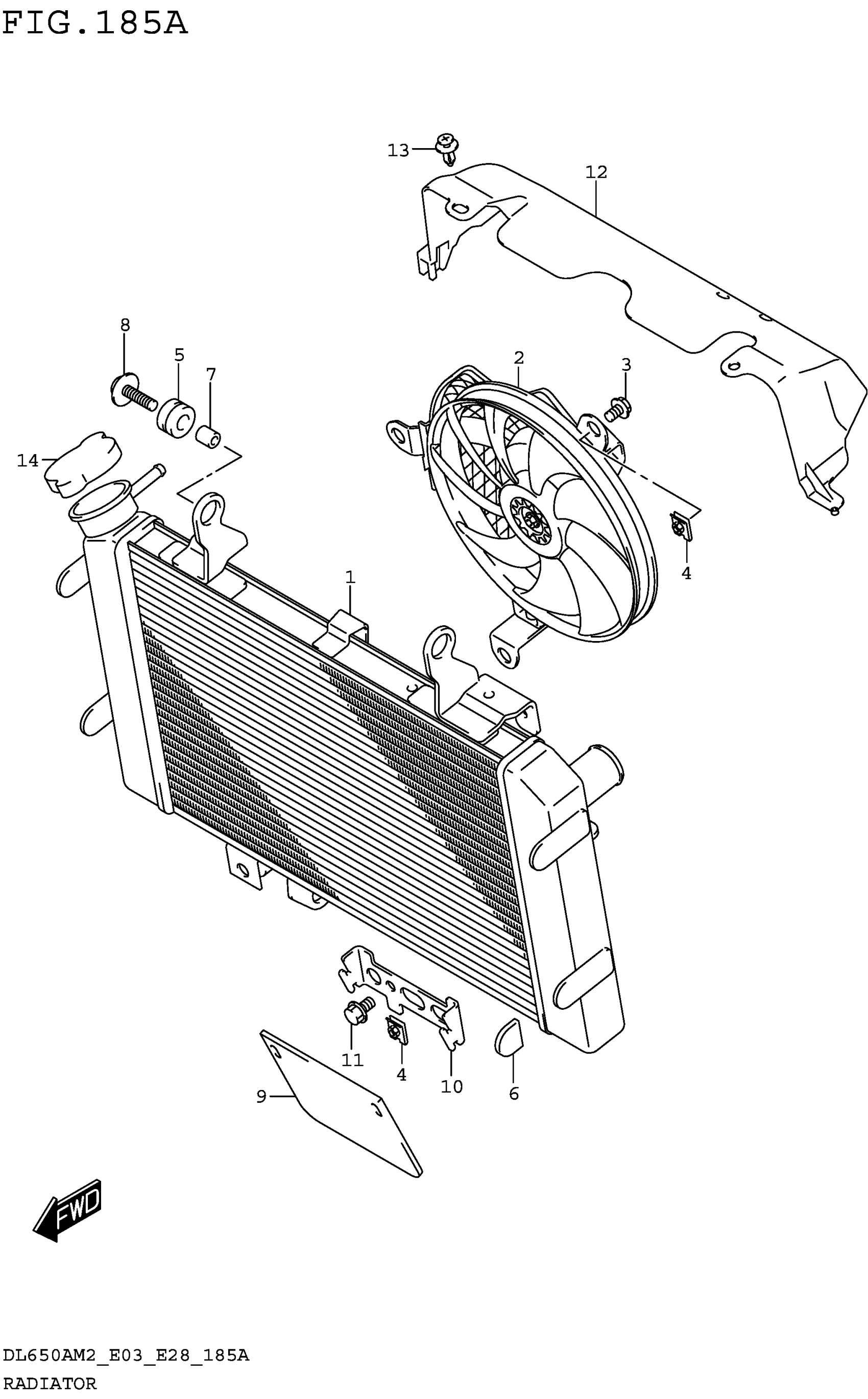

Suzuki DL650AM2 (2022) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-11J00

$1,090.30

2

FAN ASSY, RADIATOR

17800-11J00

$754.07

3

BOLT, FAN ASSY

17711-08J00

$4.46

4

NUT, FAN ASSY

17712-40F00

$4.42

5

CUSHION

09320-10501

$4.85

6

CUSHION

09329-18001

$1.89

7

SPACER (6.5X10X10)

09180-06310

$1.92

8

BOLT (6X25)

09118-06097

$2.50

9

RUBBER,RADIATOR UNDER

17781-17G00

$11.18

10

BRACKET,RDTR UNDER RUBBER

17741-17G00

$6.52

11

BOLT

01550-0612A

$1.97

12

SHIELD, RADIATOR HEAT

17771-11J00

$43.47

13

CLIP (5.9X20.5,BLACK)

09409-06322-5PK

$2.84

14

CAP,RADIATOR (1.1)

17730-08J00

$38.90
