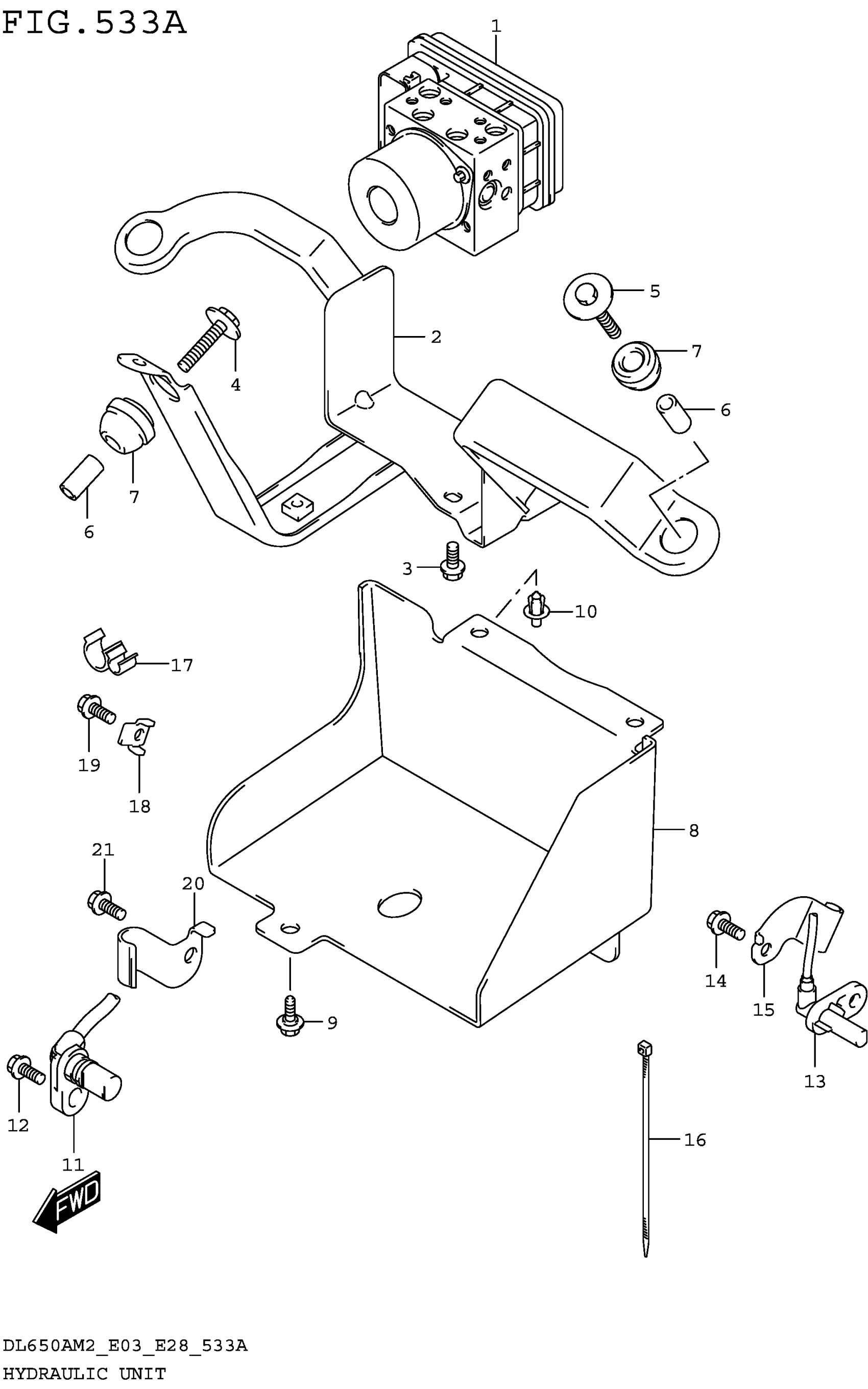

Suzuki DL650AM2 (2022) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-28K01

$1,076.97

2

HOLDER, HYDR UNIT ABS

55660-11J10

Unavailable

3

BOLT

01550-0612A

$1.97

4

BOLT (6X30)

09116-06171

$3.37

5

BOLT (6X37)

09116-06176

Unavailable

6

SPACER (6.5X10X20)

09180-06296

$2.67

7

CUSHION

09320-10061

Unavailable

8

COVER, HYDR ABS UNIT

55667-27G20

$34.62

9

BOLT (6X16)

09111-06066

$2.64

10

CLIP (7.6X25.7)

09409-08308

$1.97

11

SENSOR, FR WHEEL SPEED

55710-28K00

$235.23

12

BOLT

01547-0616B

$2.43

13

SENSOR, RR WHEEL SPEED

65710-28K00

$260.03

14

BOLT

01547-0616A

$2.01

15

CLAMP, RR WHEEL SPEED SENSOR

65731-28K00

$7.33

16

CLAMP (L:145)

09407-14407

$2.80

17

CLAMP

09408-00266

$2.69

18

GUIDE, SENSOR LEAD

34938-14F00

$7.12

19

BOLT

01547-0612A

$2.01

20

CLAMP, FR WHL SPD SENSOR

55731-28K00

$13.30

21

BOLT

01547-0612A

$2.01
