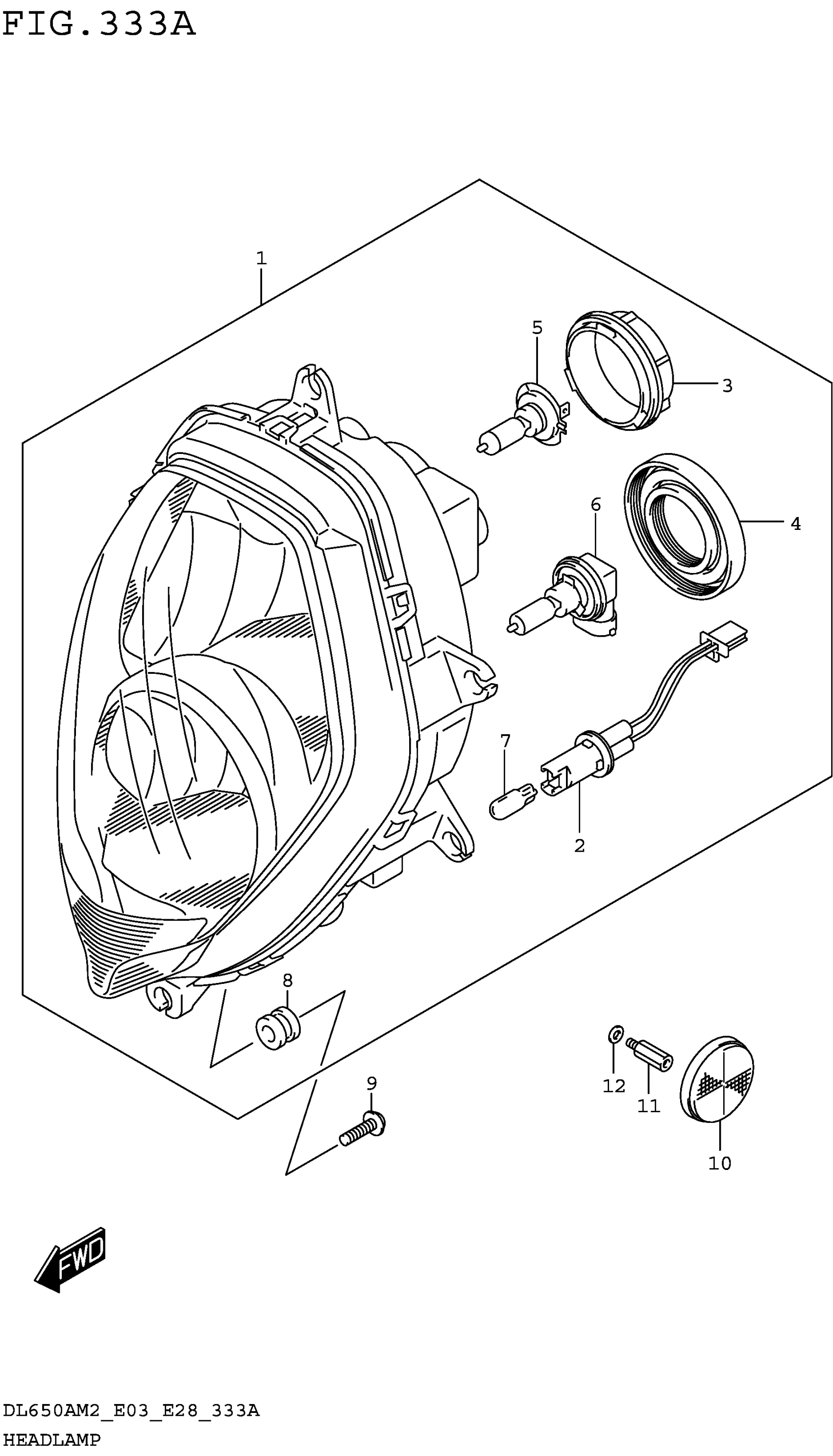

Suzuki DL650AM2 (2022) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-31J01

$589.70

2

.CORD ASSY

35171-31J00

$30.02

3

.COVER

35179-31J00

$28.90

4

.SEAL COVER

35142-31J00

Unavailable

5

BULB (12V55W H7)

09471-12188

$21.31

6

BULB (12V65W)

09471-12222

$89.48

7

.BULB (12V5W)

09471-12216

$4.99

8

.CUSHION

09320-07014

$3.69

9

SCREW (5X15)

09136-05062

$2.25

10

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$16.08

11

BOLT (5X10)

09119-05023

$13.80

12

WASHER

08322-0105A

$1.89
