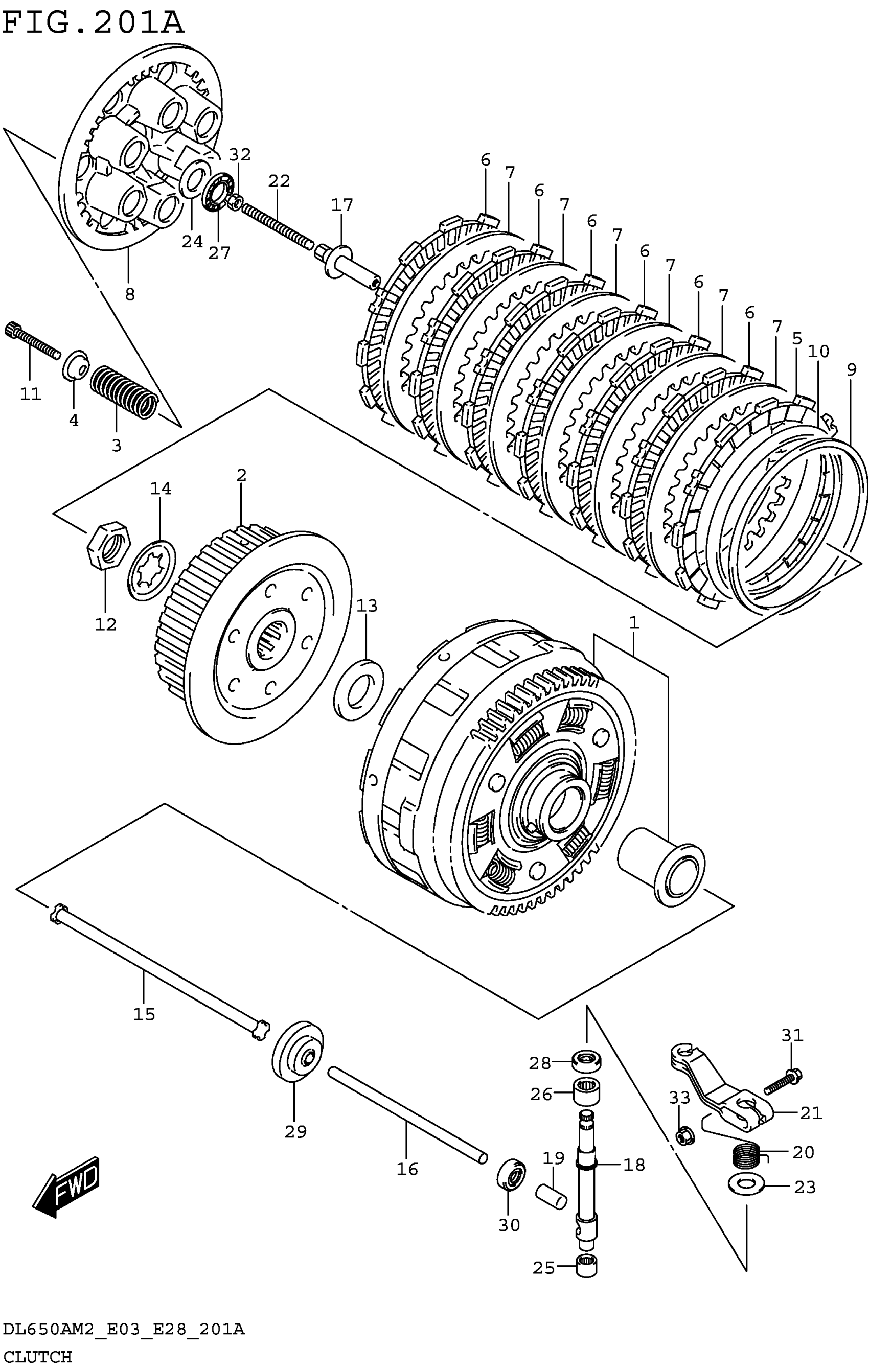

Description

Price

1

GEAR ASSY,PRI DRIVEN (NT:71) | (NT:71)

21200-44860

$444.97

2

HUB,CLUTCH SLEEVE

21411-44101

$72.05

3

SPRING, CLUTCH

21413-17G10

$9.40

4

WASHER

21414-29F00

$6.15

5

PLATE,CLUTCH DRIVE NO.2 (T:3. | (T:3.0)

21442-29F10

$38.00

6

PLATE,CLUTCH DRIVE (T:3.0)

21441-29F30

$27.25

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-28C31

$11.30

8

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

$66.97

9

SEAT,WAVE WASHER

21471-17G00

$13.27

10

WASHER,CLUTCH PLATE WAVE

21472-17G00

$23.92

11

BOLT, CLUTCH SPRING

21482-41G10

$3.21

12

NUT

09140-20001

$3.13

13

WASHER (20X36X3)

09160-20067

$7.84

14

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.09

15

ROD,PUSH,R

23110-44111

$15.50

16

ROD,CLUTCH PUSH,L

23111-15501

$12.73

17

PIECE,CLUTCH PUSH

23121-44H00

$55.10

18

CAMSHAFT,CLUTCH RELEASE

23122-44H00

$71.43

19

CAP,CLUTCH PUSH ROD

23123-41G00

$10.46

20

SPRING, CLUTCH RELEASE RETURN

23125-11J00

$4.57

21

ARM,CLUTCH RELEASE

23271-44H21

$28.90

22

SCREW (6X73)

09134-06015

$6.44

23

WASHER (10.5X24X1.0)

09160-10020

$1.93

24

WASHER (15.5X28X1)

09160-15045

$3.62

25

BEARING (10X14X10)

09263-10014

$12.57

26

BEARING (12X18X12)

09263-12027

$6.79

27

BEARING (15X28X2)

09263-15003

$7.70

28

SEAL,OIL (10X20X6)

09282-10012

$7.42

29

SEAL,OIL (6X34X10.5)

09283-06008

$15.62

30

SEAL,OIL (10X17X5)

09285-10004
