2021 Suzuki DL650AM1 OIL Pump Diagram

← All diagrams

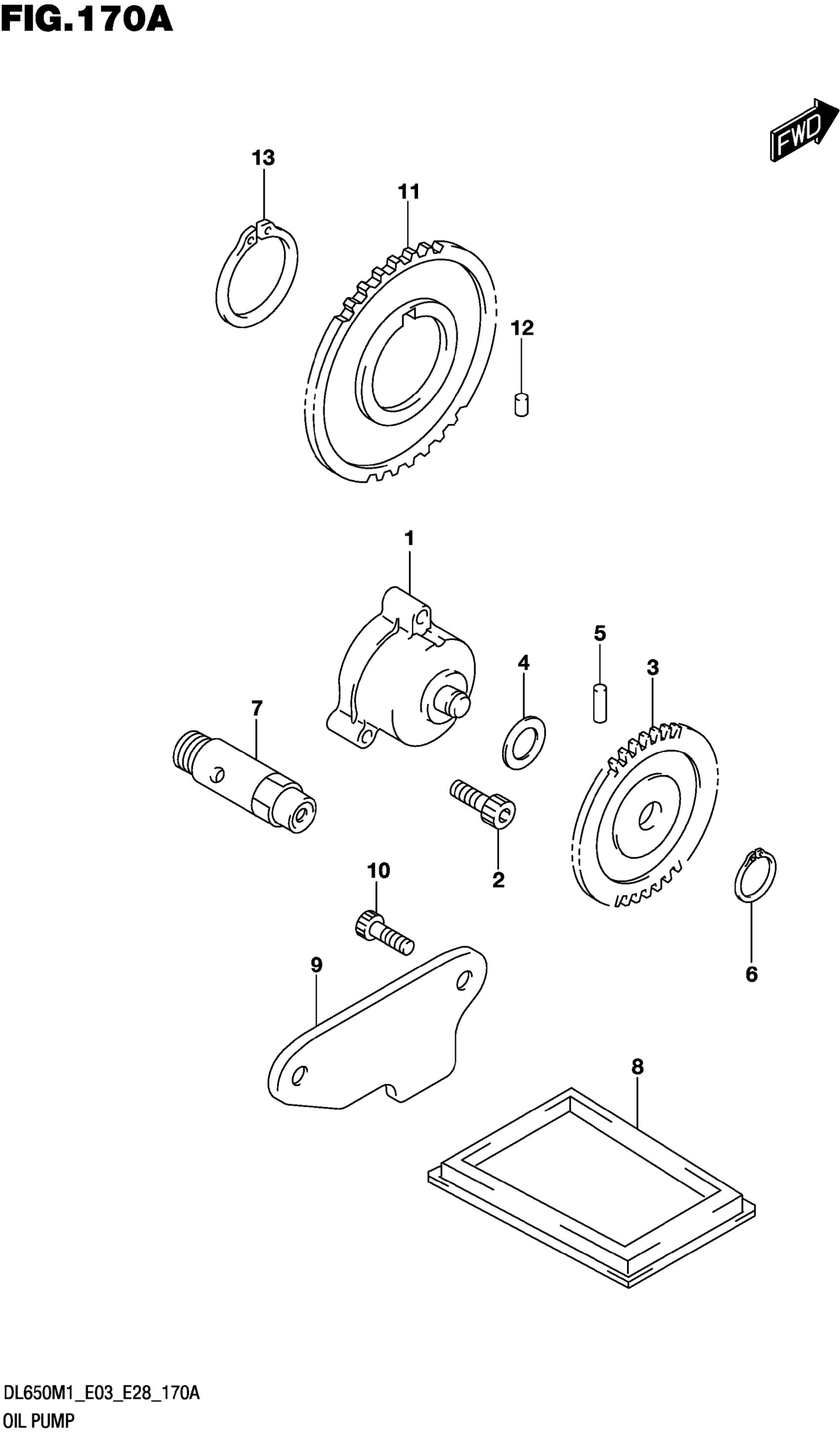

Find the part on the OIL Pump diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki DL650AM1 OIL Pump Diagram

#

Description
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL

16400-20F00-000

Out of stock

2

BOLT

07130-0625A-000

Out of stock

3

GEAR,ENG OIL PUMP DRIVEN (NT: | 4)

16331-19F00-000

Out of stock

4

SHIM (10X18X0.5)

09181-10158-000

Out of stock

5

PIN (4X18.5)

09261-04001-000

Out of stock

6

CIRCLIP

08331-31109-000

Out of stock

7

VALVE ASSY,OIL RELIEF

16440-17C20-000

Out of stock

8

STRAINER,ENG OIL

16520-32E01-000

Out of stock

9

CAP,OIL STRAINER

16523-17G00-000

Out of stock

10

BOLT

07130-0612A-000

Out of stock

11

GEAR,ENG OIL PUMP DRIVE (NT:4 | )

16321-19F00-000

Out of stock

12

CLIP

08331-31383-000

Out of stock

13

PIN (OD:6,L:6)

09261-06002-000

Out of stock
