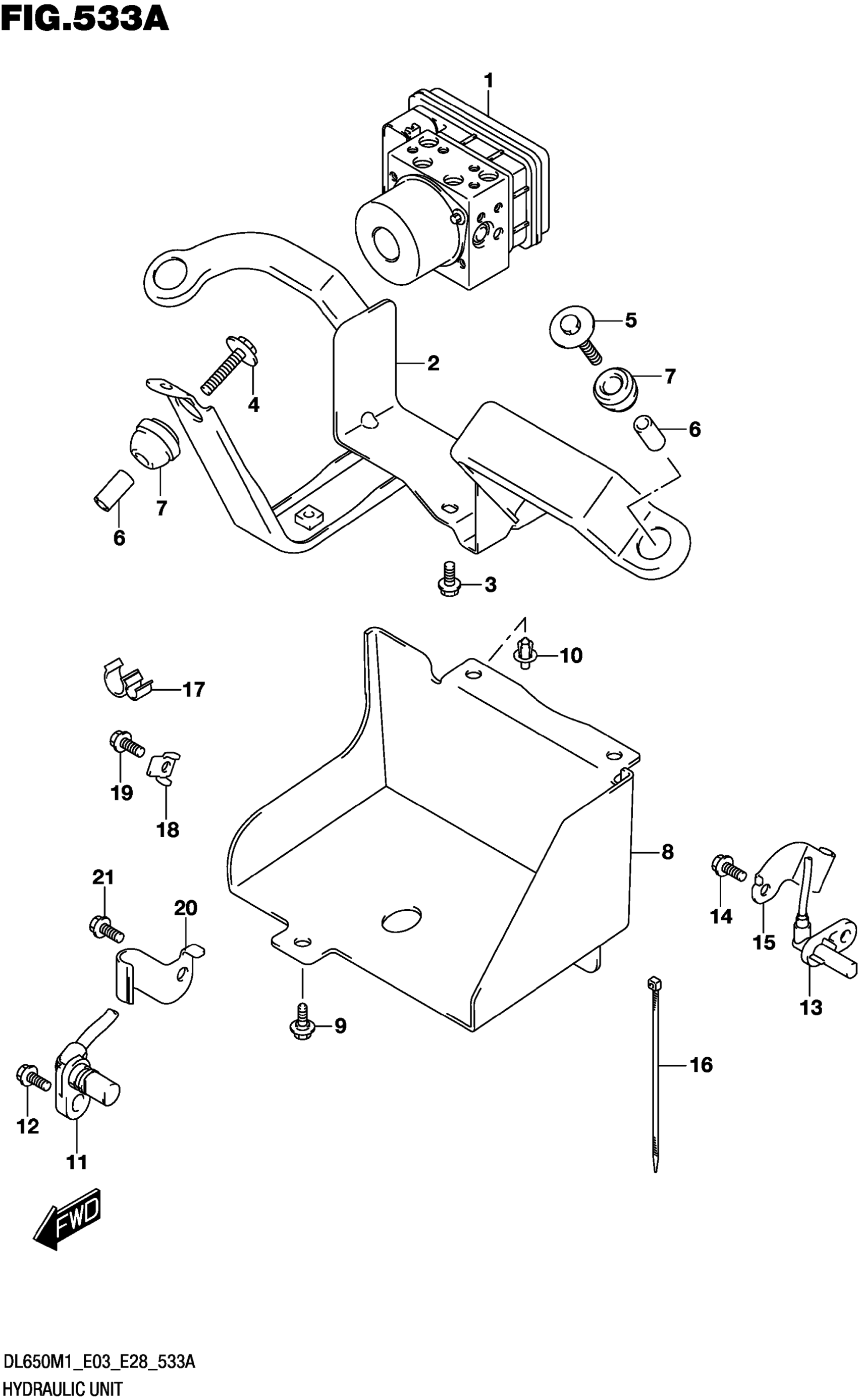

Find the part on the Hydraulic Unit diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki DL650AM1 Hydraulic Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT ASSY,HYDRAULIC ABS

55610-28K01-000

—
Out of stock

2

HOLDER,HYDR UNIT ABS

55660-11J10-000

—
Out of stock

3

BOLT

01550-0612A-000

—
Out of stock

4

BOLT (6X30)

09116-06171-000

—
Out of stock

5

BOLT (6X37)

09116-06176-000

—
Out of stock

6

SPACER (6.5X10X20)

09180-06296-000

—
Out of stock

7

CUSHION

09320-10061-000

—
Out of stock

8

COVER,HYDR ABS UNIT

55667-27G20-000

—
Out of stock

9

BOLT (6X16)

09111-06066-000

—
Out of stock

10

CLIP (7.6X25.7)

09409-08308-000

—
Out of stock

11

SENSOR,FR WHEEL SPEED

55710-28K00-000

—
Out of stock

12

BOLT

01547-0616B-000

—
Out of stock

13

SENSOR,RR WHEEL SPEED

65710-28K00-000

—
Out of stock

14

BOLT

01547-0616A-000

—
Out of stock

15

CLAMP,RR WHEEL SPEED SENSOR

65731-28K00-000

—
Out of stock

16

CLAMP (L:145)

09407-14407-000

—
Out of stock

17

CLAMP This part replaces 09408-00266-000.

09408-00266

5
Out of stock

18

GUIDE,SENSOR LEAD

34938-14F00-000

—
Out of stock

19

BOLT

01547-0612A-000

—
Out of stock

20

CLAMP,FR WHL SPD SENSOR

55731-28K00-000

—
Out of stock

21

BOLT

01547-0612A-000

—
Out of stock
