2021 Suzuki DL650AM1 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

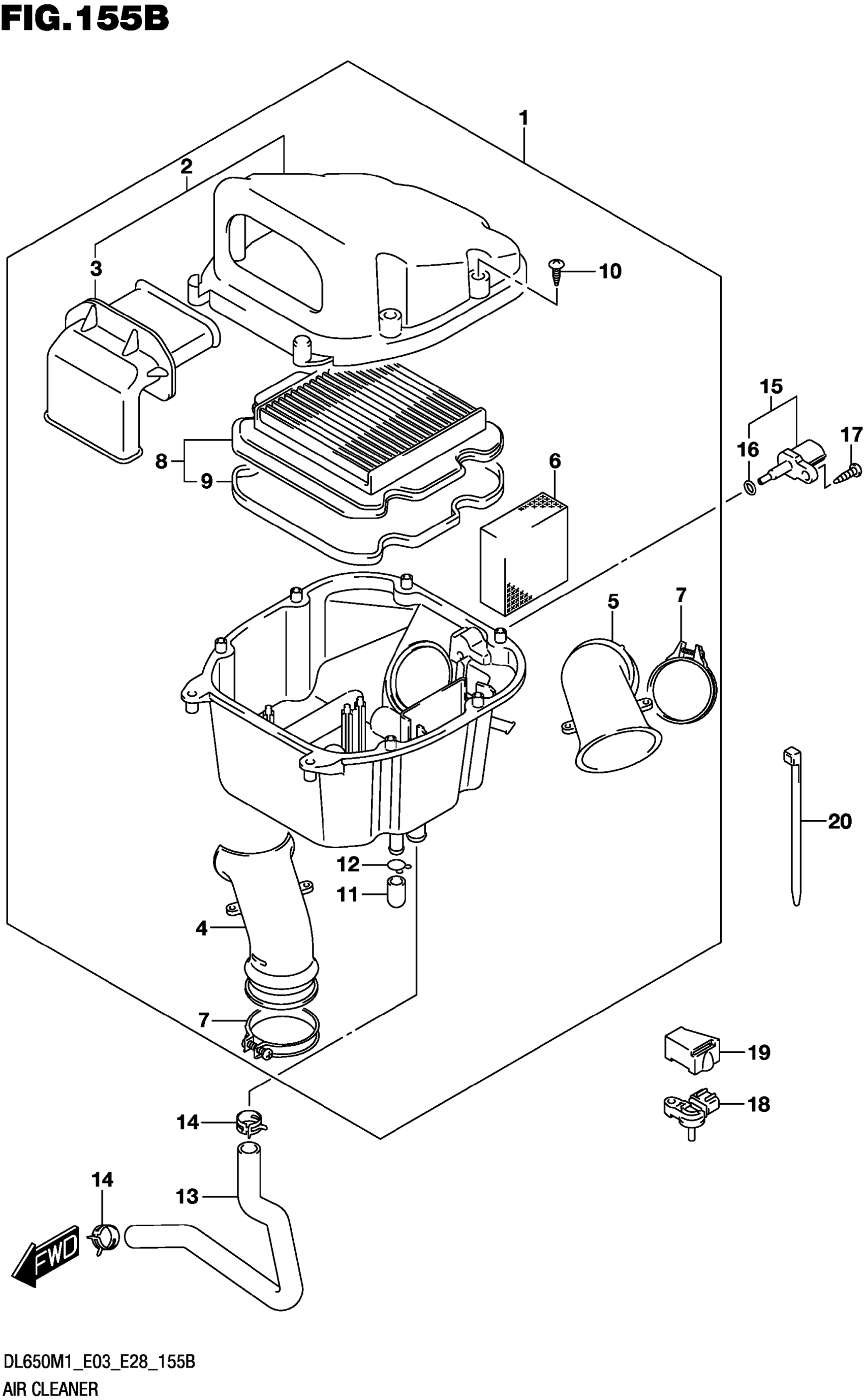

2021 Suzuki DL650AM1 AIR Cleaner Diagram

#

Description
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-11J02-000

Out of stock

2

.CAP,AIR CLEANER

13740-11J01-000

Out of stock

3

..TUBE,INLET

13891-27G01-000

Out of stock

4

.TUBE,OUTLET A

13881-27G11-000

Out of stock

5

.TUBE,OUTLET B

13882-27G11-000

Out of stock

6

.FILTER,BREATHER

13788-11J00-000

Out of stock

7

.CLAMP,OUTLET TUBE | REAR

13826-44H01-000

Out of stock

8

.FILTER ASSY

13780-27G10-000

Out of stock

9

..GASKET,AIR CLEANER

13746-06G00-000

Out of stock

10

.SCREW

03141-0516A-000

Out of stock

11

.PLUG

13878-10G01-000

Out of stock

12

.CLIP

09401-14301-000

Out of stock

13

TUBE,BREATHER

13850-11J00-000

Out of stock

14

CLIP

09401-20405-000

Out of stock

15

SENSOR,AIR TEMP

13650-41F10-000

Out of stock

16

O RING

13655-41F10-000

Out of stock

17

SCREW

03511-0516A-000

Out of stock

18

SENSOR,AIR PRESSURE

18590-18K00-000

Out of stock

19

HOLDER,SENSOR

18595-04K01-000

Out of stock

20

CLAMP (L:145)

09407-14407-000

Out of stock
