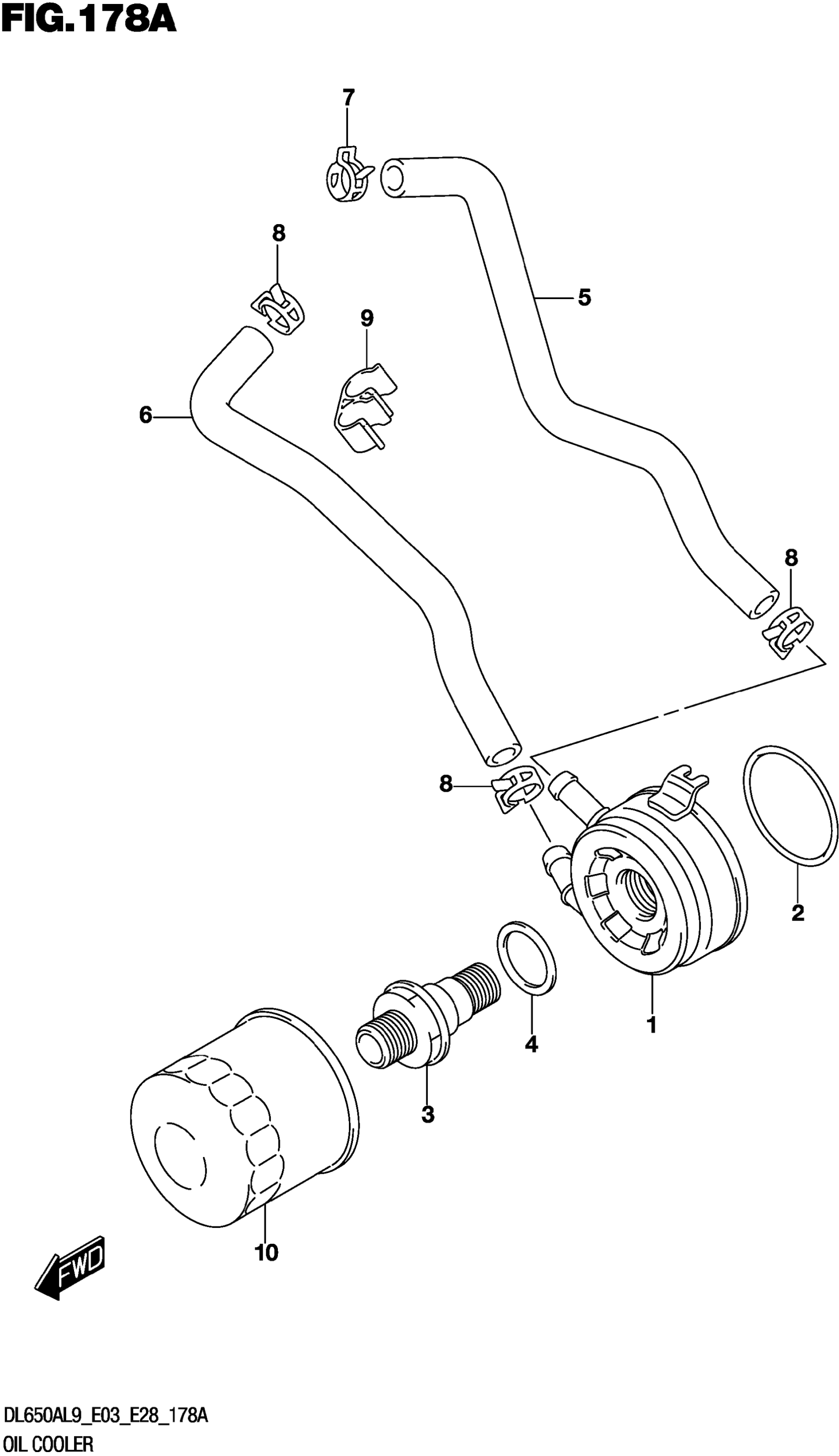

Suzuki DL650AL9 (2019) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL

16600-44H00

Unavailable

2

O-RING (D:3.1,ID:54.5)

09280-55002

$2.80

3

BOLT,OIL COOLER UNION

16591-02F00

$56.53

4

SHIM (25X34X0.7)

09181-25160

$3.03

5

HOSE, OIL COOLER INLET

16461-44H00

$33.37

6

HOSE,OIL COOLER OUT

16471-44H00

$32.13

7

CLIP (ID:16.5)

09401-16407

$2.53

8

CLIP

09401-16409

$2.64

9

CLAMP

09408-00267

$1.89

10

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99
