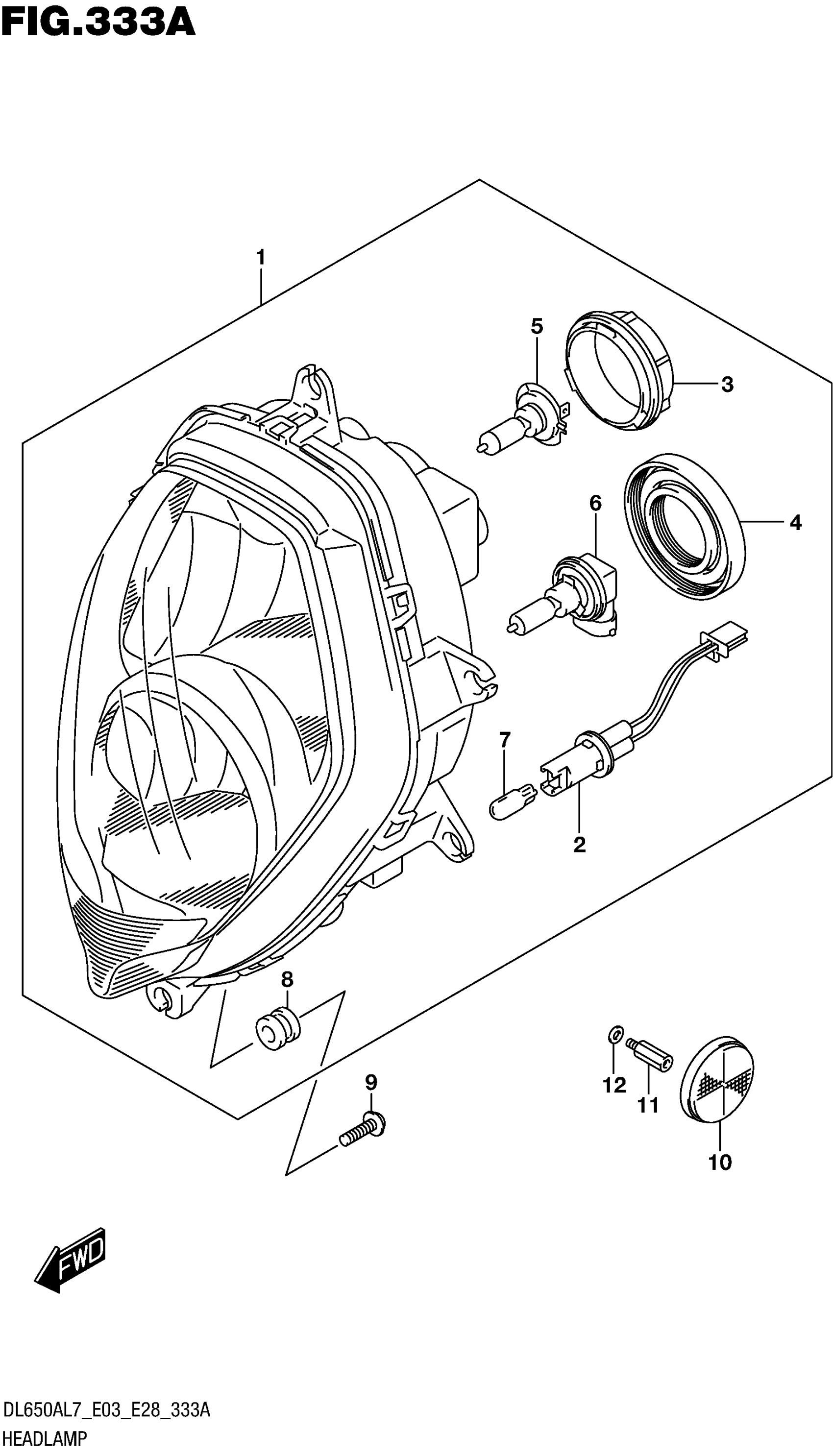

Suzuki DL650AL7 (2017) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-31J01

$589.70

2

.CORD ASSY

35171-31J00

$30.02

3

.COVER

35179-31J00

$28.90

4

.SEAL, COVER

35142-31J00

Unavailable

5

BULB (12V55W H7) | PHILIPS

09471-12188

$20.69

6

BULB (12V65W)

09471-12222

$89.48

7

.BULB (12V5W)

09471-12216

$4.84

8

.CUSHION

09320-07014

$3.56

9

SCREW (5X15)

09136-05062

$2.19

10

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$11.41

11

BOLT (5X10)

09119-05023

$13.80

12

WASHER

08322-0105A

$1.83
