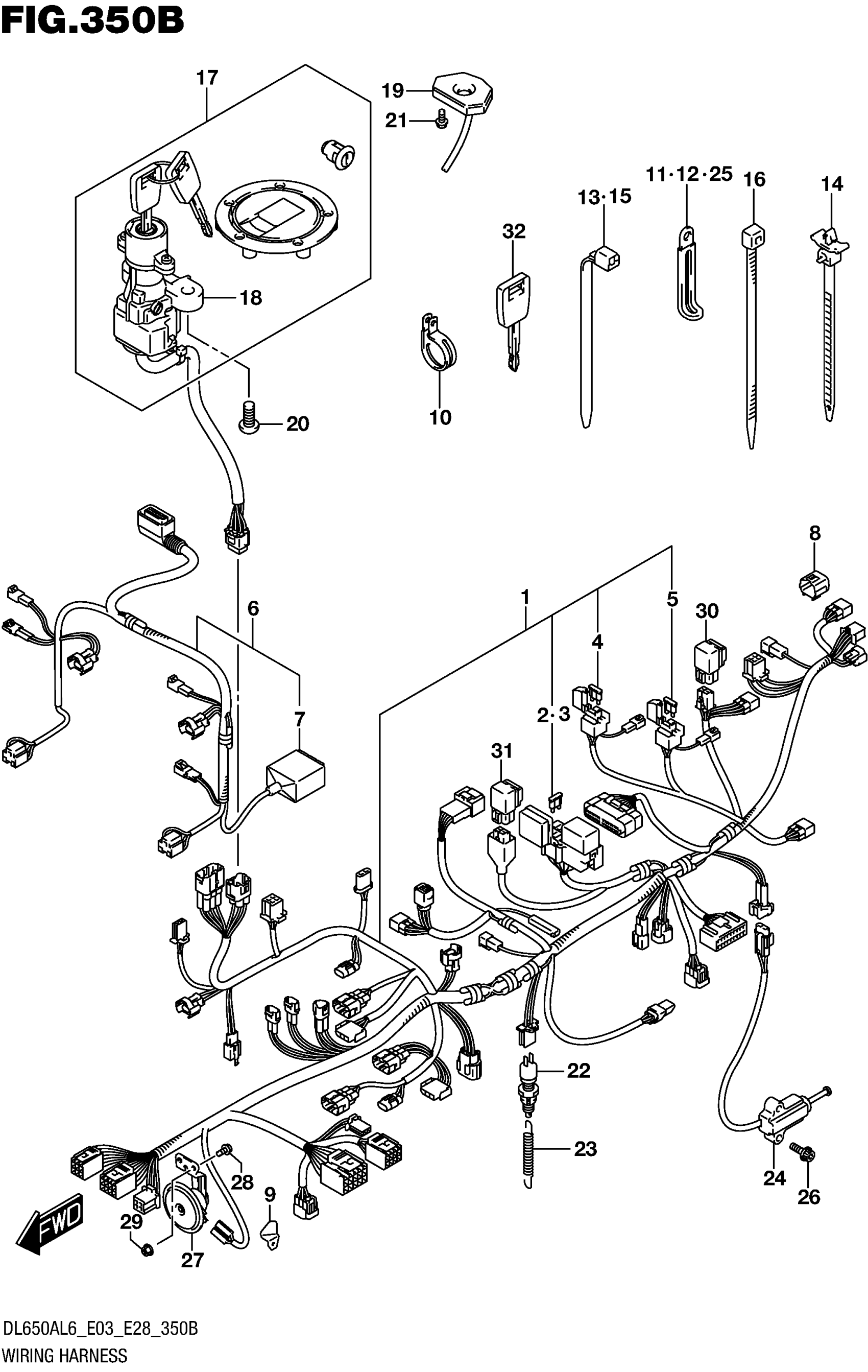

Suzuki DL650AL6 (2016) WIRING HARNESS (DL650AL6 E33) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-11JJ0

$1,152.38

2

.FUSE (10A)

09481-10501

$2.07

3

.FUSE (15A)

09481-15501

$2.07

4

.FUSE (15A)

09481-15101

$2.77

5

.FUSE (25A)

09481-25103

Unavailable

6

HARNESS, WIRING NO.2

36620-11J02

$297.35

7

.CAP

36618-47H00

$25.10

8

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

9

GUIDE, WIRING HARNESS

36711-11J00

Unavailable

10

CLAMP

09403-26401

Unavailable

11

CLAMP (L:45)

09404-06429

$1.82

12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

13

CLAMP (L:125)

09407-14403

$2.24

14

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

15

CLAMP (L:165)

09407-18402

$2.21

16

CLAMP (L:145)

09407-14407

$2.80

17

LOCK SET This part replaces 37000-11861.

37000-11862

$396.90

18

LOCK ASSY,STEER This part replaces 37100-11J11.

37100-11J12

$241.08

19

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$22.35

20

BOLT (8X20)

09139-08016

$3.04

21

BOLT

01547-0512B

$3.32

22

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

23

SPRING

09443-06012

$2.90

24

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$68.13

25

CLAMP (L:45)

09404-06429

$1.82

26

BOLT

01550-0616A

$1.97

27

HORN ASSY

38500-11J00

$94.30

28

BOLT (6X16)

09118-06017

$2.21

29

NUT

08316-1006A

$2.19

30

RELAY ASSY

38740-24X50

$41.38

31

RELAY ASSY

38740-24X50

$41.38

32

KEY, BLANK | OPT

37146-11J00

$57.43
